  6. Split-Phase Belt Drive Motor, 1/2 HP, 56Z Frame, 115/230V AC Voltage, 1,725 Nameplate RPM

This item is Discontinued.

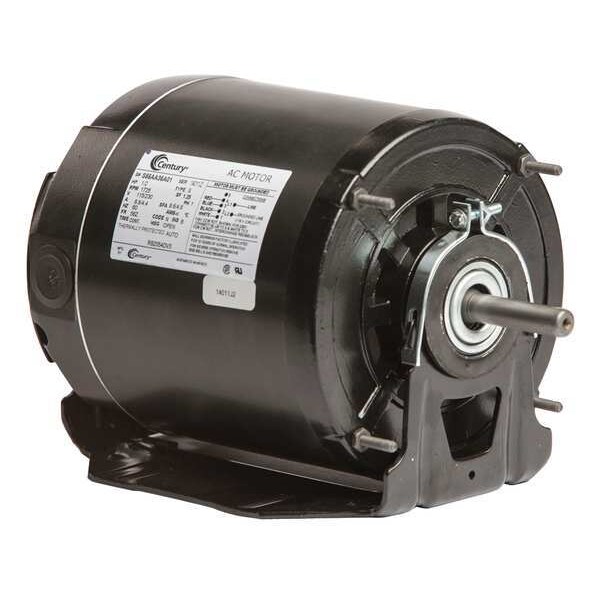

Century Split-Phase Belt Drive Motor, 1/2 HP, 56Z Frame, 115/230V AC Voltage, 1,725 Nameplate RPM RB2054DV3

Split-Phase Belt Drive Motor, 1/2 HP, 56Z Frame, 115/230V AC Voltage, 1,725 Nameplate RPM (Discontinued)

  • Mfr # RB2054DV3
  • Zoro # G2619802
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RB2054DV3
Zoro #
G2619802
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Length Less Shaft
8 5/16 in
Shaft Length
2 in
Overall Length
10 5/16 in
Body Dia.
6 1/2 in
Resilient Ring Dia.
2 1/2 in

Details

Item
Belt Drive Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/2
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115/230V AC
Frame
56Z
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.25
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Duty
Continuous
Standards
CSA
Full Load Amps
8.8/4.4 A
Motor Bearings
Ball
Frame Material
Rolled steel
Motor Shaft Rotation
CW/CCW
Ring to Ring Center
7 13/16 in
Mounting Stud Pattern
4 1/8 in x 4 1/8 in
Motor Mounting Position
All Angle
Max. Ambient Temp.
104 Degrees F
Motor Frame Material
Steel
Hz
60 Hz
Includes
Adapter to Convert Shaft From 1/2 to 5/8" Keyed
Ins. Class
B
Usable @ 208V
No
Usable @ 200V
No
Duty Cycle
Continuous
Weight
19 lb

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, 8.8/4.4 A Full Load Amps, 56Z Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open, Motor Mounting Type Cradle Base
