  6. Split-Phase Belt Drive Motor, 1/3 HP, 48 Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM

This item is Discontinued.

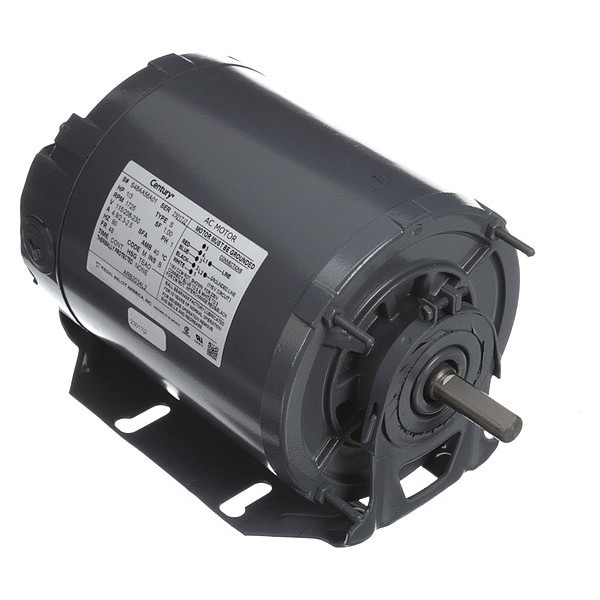

Century Split-Phase Belt Drive Motor, 1/3 HP, 48 Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM ARB2034L2

Split-Phase Belt Drive Motor, 1/3 HP, 48 Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM (Discontinued)

  • Mfr # ARB2034L2
  • Zoro # G0895255
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ARB2034L2
Zoro #
G0895255
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
1 9/16 in
Overall Length
9 13/16 in
Resilient Ring Dia.
2 1/2 in
Body Dia.
5 5/8 in
Length Less Shaft
8 1/4 in

Details

Item
Belt Drive Motor
Motor Design
Split-Phase
Motor Enclosure Design
Totally Enclosed Air-Over
HP
1/3
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115/208-230V AC
Frame
48
Motor Mounting Type
Cradle Base
Motor Thermal Protection
None
Motor Service Factor
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Frame Material
Rolled steel
Motor Frame Material
Steel
Footnotes
26
Standards
CSA, UL Recognized
Motor Bearings
Ball
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Full Load Amps
4.9/2.3-2.5 A
Max. Ambient Temp.
104 Degrees F
Ins. Class
B
Motor Mounting Position
All Angle
Motor Shaft Rotation
CW/CCW
Duty
Continuous
Hz
60 Hz
Usable @ 200V
No
Usable @ 208V
Yes
Weight
18 lb
Duty Cycle
Continuous

Description

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, 4.9/2.3-2.5 A Full Load Amps, 48 Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle
