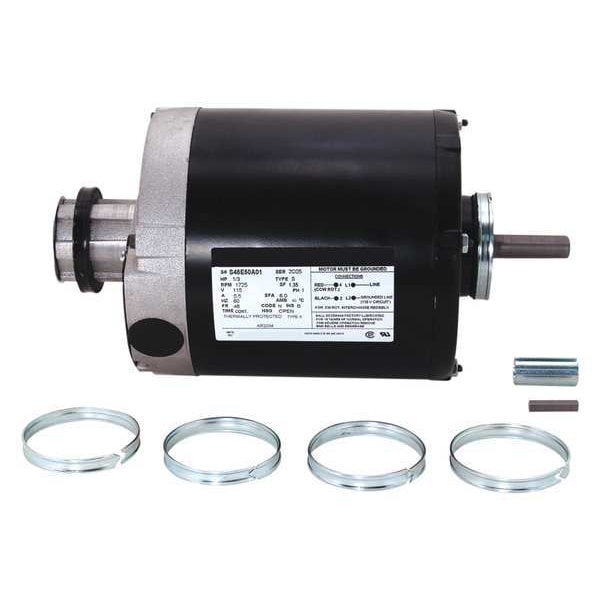

Split-Phase Belt Drive Motor, 1/4 HP, 48 Frame, 115V AC Voltage, 1,725 Nameplate RPM (Discontinued)
- Mfr # AR2024
- Zoro # G2957753
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
AR2024
Zoro #
G2957753
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/8 in
Body Dia.
5 5/8 in
Resilient Ring Dia.
2 1/2 in
Shaft Length
1 5/8 in
Length Less Shaft
8 3/4 in
Overall Length
10 3/8 in
Description
Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 5.0 A Full Load Amps, 48 Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Ring, Motor Mounting Position All Angle, Motor Frame Material Steel
