  6. Split-Phase Belt Drive Motor, 1/4 HP, 48Y Frame, 115/208-230V AC Voltage, 1,140 Nameplate RPM

This item is Discontinued.

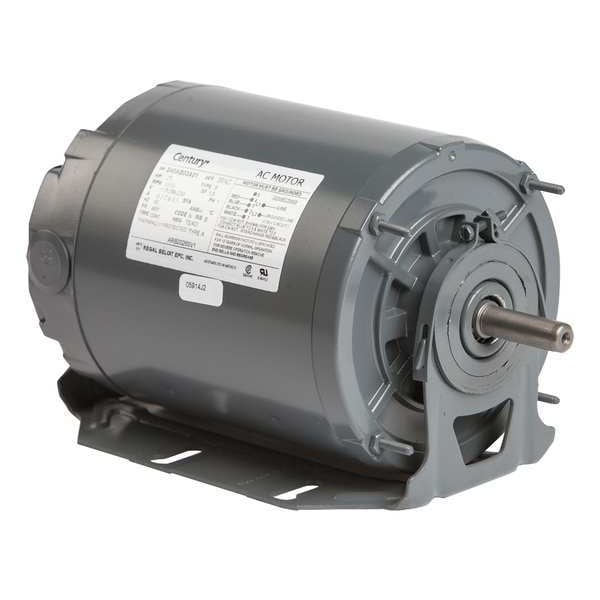

Century Split-Phase Belt Drive Motor, 1/4 HP, 48Y Frame, 115/208-230V AC Voltage, 1,140 Nameplate RPM ARB2026SV1

Split-Phase Belt Drive Motor, 1/4 HP, 48Y Frame, 115/208-230V AC Voltage, 1,140 Nameplate RPM (Discontinued)

  • Mfr # ARB2026SV1
  • Zoro # G1892466
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ARB2026SV1
Zoro #
G1892466
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Overall Length
10 1/8 in
Resilient Ring Dia.
2 1/2 in
Body Dia.
5 5/8 in
Length Less Shaft
8 1/2 in
Shaft Length
1 5/8 in

Details

Item
Belt Drive Motor
Motor Design
Split-Phase
Motor Enclosure Design
Totally Enclosed Air-Over
HP
1/4
No. of Speeds
1
RPM Range
1,101-1,200
Nameplate RPM
1,140
Voltage
115/208-230V AC
Frame
48Y
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Max. Ambient Temp.
104 Degrees F
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Motor Mounting Position
All Angle
Standards
CSA, UL Recognized
Duty
Continuous
Hz
60 Hz
Motor Bearings
Ball
Ins. Class
B
Frame Material
Rolled steel
Motor Frame Material
Steel
Motor Shaft Rotation
CW/CCW
Full Load Amps
6.2/2.8-3.1 A
Usable @ 208V
Yes
Duty Cycle
Continuous
Usable @ 200V
No
Weight
19 lb

Description

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 115/208-230V AC, 6.2/2.8-3.1 A Full Load Amps, 48Y Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle
