  11. Split-Phase Belt Drive Motor, 1/4 HP, 56Z Frame, 115V AC Voltage, 1,725 Nameplate RPM
This item is Discontinued.

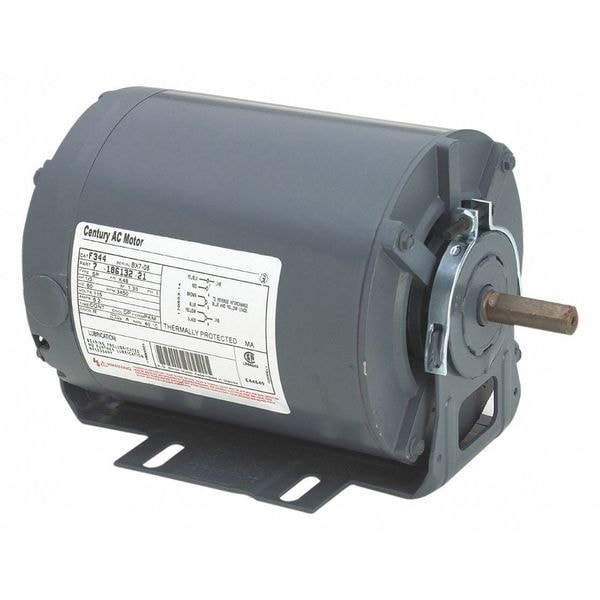

Century Split-Phase Belt Drive Motor, 1/4 HP, 56Z Frame, 115V AC Voltage, 1,725 Nameplate RPM RS2026

Split-Phase Belt Drive Motor, 1/4 HP, 56Z Frame, 115V AC Voltage, 1,725 Nameplate RPM (Discontinued)

  • Mfr # RS2026
  • Zoro # G1934642
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RS2026
Zoro #
G1934642
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Resilient Ring Dia.
2 1/2 in
Body Dia.
5 5/8 in
Length Less Shaft
7 5/8 in
Shaft Length
1 1/2 in
Overall Length
9 1/8 in

Details

Item
Belt Drive Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/4
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115V AC
Frame
56Z
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.35
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Nominal Efficiency
54 %
Frame Material
Rolled steel
Motor Bearings
Sleeve
Includes
5/8" dia. Shaft Bushing
Duty
Continuous
Ins. Class
B
Motor Shaft Rotation
CW/CCW
Footnotes
307
Ring to Ring Center
7 3/16 in
Hz
60 Hz
Full Load Amps
4.9 A
Standards
CSA
Motor Mounting Position
All Angle
Motor Frame Material
Steel
Max. Ambient Temp.
104 Degrees F
Weight
12 lb
Usable @ 208V
No
Duty Cycle
Continuous
Usable @ 200V
No
Includes Shaft Bushing
Yes

Description

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 4.9 A Full Load Amps, 56Z Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Steel
