  11. Split-Phase Belt Drive Motor, 1/8 HP, 48 Frame, 115V AC Voltage, 1,140 Nameplate RPM
This item is Discontinued.

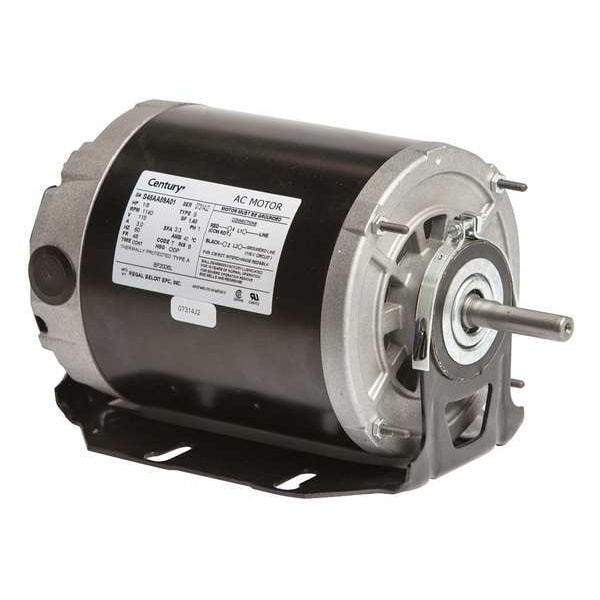

Century Split-Phase Belt Drive Motor, 1/8 HP, 48 Frame, 115V AC Voltage, 1,140 Nameplate RPM BF2006L

Split-Phase Belt Drive Motor, 1/8 HP, 48 Frame, 115V AC Voltage, 1,140 Nameplate RPM (Discontinued)

  • Mfr # BF2006L
  • Zoro # G2151721
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BF2006L
Zoro #
G2151721
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
1 15/16 in
Overall Length
10 1/4 in
Resilient Ring Dia.
2 1/2 in
Length Less Shaft
8 1/4 in
Body Dia.
5 5/8 in

Details

Item
Belt Drive Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/8
No. of Speeds
1
RPM Range
1,101-1,200
Nameplate RPM
1,140
Voltage
115V AC
Frame
48
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.4
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Ring to Ring Center
8 1/4 in
Motor Frame Material
Steel
Motor Bearings
Ball
Full Load Amps
3.0 A
Frame Material
Rolled steel
Hz
60 Hz
Includes
5/8 in dia Shaft Bushing with Key
Max. Ambient Temp.
104 Degrees F
Standards
CSA, UL Recognized
Ins. Class
B
Motor Shaft Rotation
CW/CCW
Duty
Continuous
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Motor Mounting Position
All Angle
Usable @ 208V
No
Duty Cycle
Continuous
Includes Shaft Bushing
Yes
Weight
16 lb
Usable @ 200V
No

Description

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/8 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 115V AC, 3.0 A Full Load Amps, 48 Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.4, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Steel
