  11. Split-Phase Belt Drive Motor, 3/4 HP, 56 Frame, 115/230V AC Voltage, 1725 Nameplate RPM

This item is Discontinued.

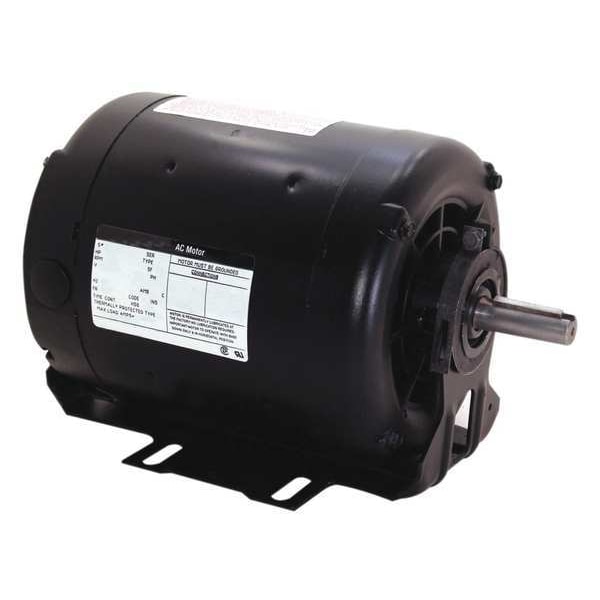

Century Split-Phase Belt Drive Motor, 3/4 HP, 56 Frame, 115/230V AC Voltage, 1725 Nameplate RPM F680

Split-Phase Belt Drive Motor, 3/4 HP, 56 Frame, 115/230V AC Voltage, 1725 Nameplate RPM (Discontinued)

  • Mfr # F680
  • Zoro # G0629115
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
F680
Zoro #
G0629115
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Length Less Shaft
9 1/2 in
Body Dia.
6 1/2 in
Shaft Length
1 15/16 in
Overall Length
11 1/2 in
Resilient Ring Dia.
2 1/2 in

Details

Item
Belt Drive Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
3/4
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115/230V AC
Frame
56
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.25
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Footnotes
6
Motor Shaft Rotation
CW/CCW
Motor Frame Material
Steel
Motor Bearings
Ball
Ring to Ring Center
9 1/16 in
Hz
60/50 Hz
Frame Material
Rolled steel
Standards
CSA, UL Recognized
Ins. Class
B
Duty
Continuous
Max. Ambient Temp.
104 Degrees F
Nominal Efficiency
68 %
Motor Mounting Position
All Angle
Full Load Amps
5.2/10.4 A
Usable @ 200V
No
Full Load Amps @ 50Hz
5.2/10.4 A
HP @ 50Hz
3/4
RPM @ 50Hz
1425
Voltage @ 50Hz
115/230V AC
Weight
29 lb
Duty Cycle
Continuous
Service Factor @ 50Hz
1.25
Usable @ 208V
No

Description

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 3/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, 5.2/10.4 A Full Load Amps, 56 Frame, Usable @ 208V No, Usable @ 200V No, 60/50 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle
