This item is Discontinued.

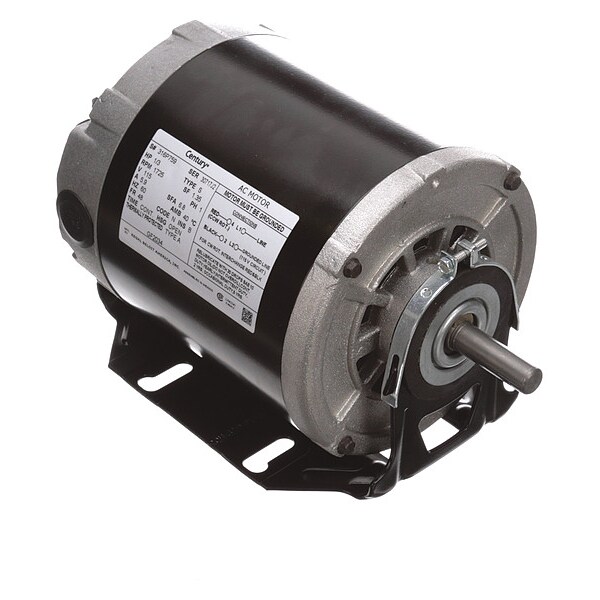

Century Split Phase Resilient Mt. Motor GF2034

Split Phase Resilient Mt. Motor (Discontinued)

  • Mfr # GF2034
  • Zoro # G3262001
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GF2034
Zoro #
G3262001
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8"
Shaft Length
1-1/2"
Length Less Shaft
7 1/4 in
Manufacturers Warranty Length
1 yr.
Overall Length
8.9"

Details

Frame
48
HP
1/3 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Split Phase
Motor Enclosure Design
Open Enclosed
Motor Mounting Type
Rigid Base
Motor Shaft Rotation
Reversible
Motor Thermal Protection
Automatic
Nameplate RPM
1725 rpm
No. of Speeds
Single and Two Speed
Number of Shafts
1
Phase
1
RPM Range
1,701-1,800
Voltage
115V
Motor Bearings
Sleeve
Replacement For
048S17D11042
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Full Load Amps
6.8A
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Keyed
Hz
60 Hz
Motor Service Factor
1.35
Application
Fans and Blowers
Voltage Compatibility
115V AC
Motor Frame Material
Rolled Steel
Duty Cycle
Continuous
Weight
15 lb

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.9 A, 48 Frame, Replacement For 048S17D11042, 60 Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation Reversible, Motor Enclosure Design Open Enclosed, Motor Mounting Type Resilient Base, Motor Frame Material Rolled Steel
