This item is Discontinued.

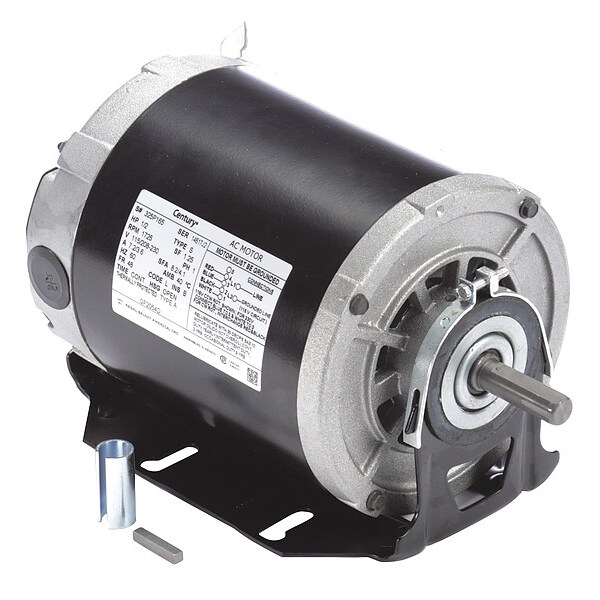

Century Split Phase Resilient Mt. Motor GF2054D

Split Phase Resilient Mt. Motor (Discontinued)

  • Mfr # GF2054D
  • Zoro # G0792471
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GF2054D
Zoro #
G0792471
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8"
Shaft Length
1.62"
Manufacturers Warranty Length
1 yr.
Overall Length
8.9"

Details

Frame
48
HP
1/2 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Split Phase
Motor Enclosure Design
Open Enclosed
Motor Mounting Type
Resilient Base
Motor Shaft Rotation
Reversible
Motor Sub Application
Fan and Blower HVAC/R Motor
Motor Thermal Protection
Automatic
Nameplate RPM
1725 rpm
No. of Speeds
Single and Two Speed
Number of Shafts
1
Phase
1
RPM Range
1,701-1,800
Voltage
115/208-230V
Motor Bearings
Sleeve
Replacement For
BF2054
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Full Load Amps
7.2/3.6A
Standards
CSA Certified
Motor Shaft Design
Keyed
Hz
60 Hz
Motor Service Factor
1.25
Application
Fan and Blower
Voltage Compatibility
115/208-230V AC
Motor Frame Material
Rolled Steel
Usable @ 208V
Yes
Weight
17 lb
Duty Cycle
Continuous

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 7.2/3.6 A, 48 Frame, Replacement For BF2054, Usable @ 208V Yes, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation Reversible, Motor Enclosure Design Open Enclosed, Motor Mounting Type Resilient Base, Motor Frame Material Rolled Steel
