This item is Discontinued.

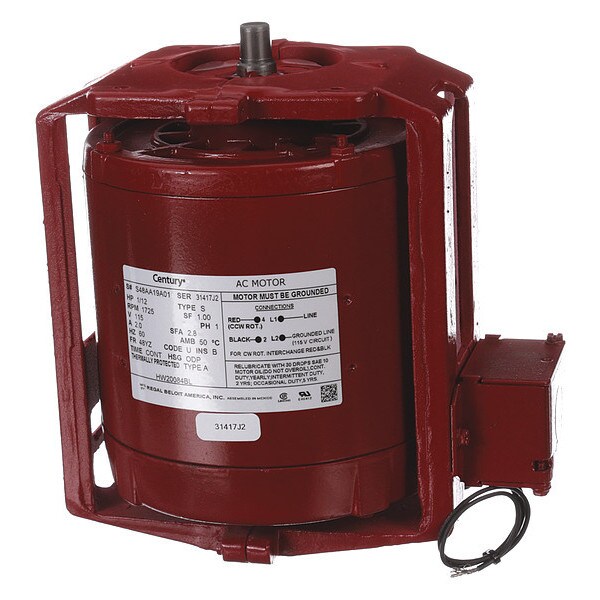

Century Water Circulator Motor, NEMA/IEC, Bracket HW20084BL

Water Circulator Motor, NEMA/IEC, Bracket (Discontinued)

  • Mfr # HW20084BL
  • Zoro # G1518553
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HW20084BL
Zoro #
G1518553
UPC #
-
Country of Origin
Mexico

Dimensions

Bolt Circle Dia.
4 5/8 in
Ring Dia.
2 1/4 in
Resilient Ring Dia.
2 1/4 in
Shaft Length
13/16 in
Overall Length
8 5/16 in
Length Less Shaft
7 1/2 in
Height
7 3/4 in
Shaft Dia.
1/2 in
Body Dia.
5.6 in
Bolt Circle Diameter
4 5/8 in
Body Diameter
5 9/16 in

Details

Item
Circulating Pump Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/12
RPM Range
1,701-1,800
Nameplate RPM
1,725
Frame
48YZ
Voltage
115V AC
Phase
Single
Motor Mounting Type
Cradle Base
Standards
CSA, UL Listed
Motor Service Factor
1
Motor Application
Pump
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Hz
60
Replacement For
Mfr. No. HW20084B
Full Load Amps
2.00
Motor Shaft Rotation
CCW
Ins. Class
B
Motor Sub Application
Water Circulator
Max. Ambient Temp.
50 Degrees C
Motor Thermal Protection
Auto
Ring to Ring Center
6 11/16 in
Motor Bearings
Sleeve
Motor Frame Material
Steel
No. of Speeds
1
Motor Mounting Position
All Angle
Finish
Red
Motor Shaft Design
Spot Drill
Weight
14 lb
Usable @ 200V
No
Usable @ 208V
No
Duty Cycle
Continuous
Conduit Box Position
F3
Nameplate Voltage
115V AC
Compatible with Pump Type
In-Line Circulating Pumps
Full Load Current
2.0 A
Number of Speeds
1
Maximum Ambient Temperature
122 Degrees F
Horsepower
1/12
Frequency
60 Hz
Maximum RPM
1,725 RPM

Description

Circulating Pump Motor, Compatible with Pump Type In-Line Circulating Pumps, Horsepower 1/12, Maximum Ambient Temperature 122 Degrees F, Maximum RPM 1,725 RPM, Motor Enclosure Design Open Dripproof, Motor Thermal Protection Auto, Nameplate Voltage 115V AC, Number of Speeds 1, Phase Single, Body Diameter 5 9/16 in, Bolt Circle Diameter 4 5/8 in, Frame 48YZ, Frequency 60 Hz, Full Load Current 2.0 A, Standards CSA, UL Listed
