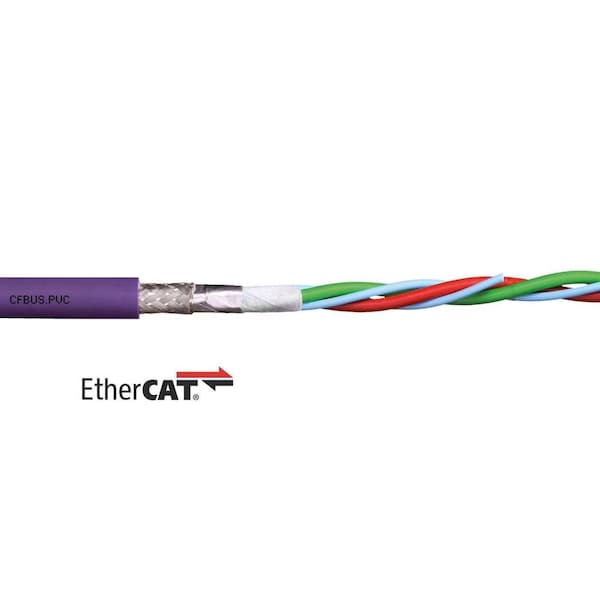

BusCable, Ethernet/CAT5, 24AWG, Red, 50V
- Mfr # CFBUS-PVC-040
- Zoro # G708259608
product price:Â
$
4.15
/ea
Sold in multiples of 3 for
$12.45
Key Features
Length
Order by the Foot
Voltage
50 V
Jacket Color
Red
Shielding
Shielded
Conductor Material
Copper
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CFBUS-PVC-040
- Zoro #
- G708259608
- UPC #
- -
- Country of Origin
- Germany
- Item
- Bus Cable
- Voltage
- 50 V
- Jacket Color
- Red
- Shielding
- Shielded
- Conductor Material
- Copper
- Jacket Material
- PVC
- Standards
- 2011/65/EU, 2014/35/EU, CE 2014/35, RoHS Compliant-II, TC RU C-DE. ME77.B.01218, VDW DESINA
- Cable Series
- CFBUS-PVC
- Conductor Grouping
- (4) 24 AWG
- Maximum Acceleration
- 98.4 m/sq sec
- Resistance Properties
- Bending Resistance, Hydrolysis Resistant, Antimicrobial, Oil and Grease Resistant, UV/Sunlight Resistant
- Conductor Color Code
- Brown, Green, White, Yellow
- Bus System
- Ethernet/CAT5
- Impedance
- 100 ohm
- Product Type
- Bus Cable
- Minimum Operating Temperature - Fixed
- 5 Degrees F
- Maximum Velocity - Unsupported
- 10 fps
- Minimum Operating Temperature - Flexible
- 23 Degrees F
- Includes Ground
- No
- Maximum Operating Temperature
- 158 Degrees F
- Maximum Velocity - Supported
- 7 fps
- Series
- Chainflex
Dimensions
- Length
- Order by the Foot
- Overall Length
- Order by the Foot
- Minimum Bend Radius Factor - Flexible
- 10 x OD
- Outside Diameter
- 0.26 in
- Minimum Bend Radius Factor - Fixed
- 7 x OD
- Minimum Bend Radius Factor - E-Chain
- 12.5 x OD
- Nominal Outside Diameter
- 0.26 in
- Wire Rope Length
- Order by the Foot
Description
Bus Cable, Bus System Ethernet/CAT5, Conductor Color Code Brown, Green, White, Yellow, Conductor Grouping (4) 24 AWG, Conductor Material Copper, Impedance 100 ohm, Includes Ground No, Jacket Color Red, Jacket Material PVC, Length Order by the Foot, Maximum Acceleration 98.4 m/sq sec, Maximum Operating Temperature 158 Degrees F, Maximum Velocity - Supported 7 fps, Maximum Velocity - Unsupported 10 fps, Minimum Bend Radius Factor - E-Chain 12.5 x OD, Minimum Bend Radius Factor - Fixed 7 x OD
