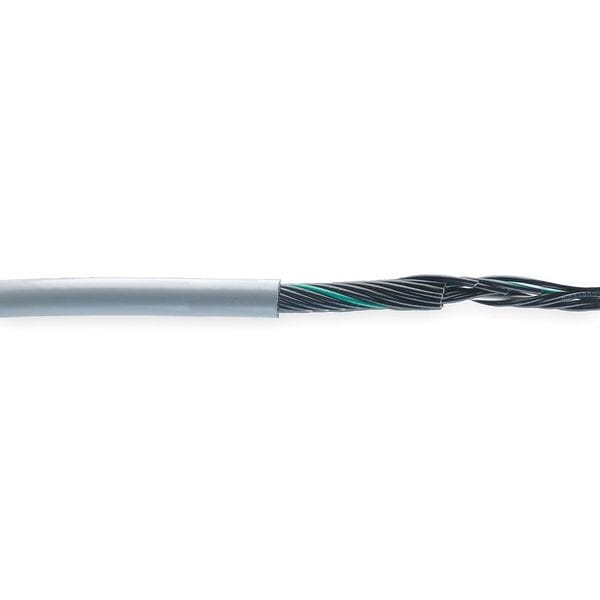

Control Cable, 16 AWG, 12 C, Gray, PVC, 600 V, 100 ft
Mfr # CF130US-15-12-100
Zoro # G0394283
product price: $801.99
/ea
Free Shipping & Returns
Key Features
Wire Size
16 AWG
Number of Conductors
12
Length
100 ft
Voltage
600 V
Nominal Outside Dia.
0.56 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CF130US-15-12-100
Zoro #
G0394283
UPC #
-
Country of Origin
Germany
Dimensions
Wire Size
16 AWG
Length
100 ft
Nominal Outside Dia.
0.56 in
Min. Bend Radius
8 x OD
Wire Size (Wire and Cable)
16 AWG
Spool Length
100 ft.
Wire Size - Wire and Cable
16 AWG
Conductor Size
16 AWG
Length (Straight Wireway)
100 ft
Overall Length
100 ft
Minimum Bend Radius Factor - Fixed
5 x OD
Minimum Bend Radius Factor - Flexible
7.5 x OD
Minimum Bend Radius Factor - E-Chain
8 x OD
Outside Diameter
0.56 in
Nominal Outside Diameter
0.56 in
Description
Control Cable, Conductor Color Code Green/Yellow, Black with White Numbers, Conductor Configuration Single, Conductor Material Copper, Conductor Size 16 AWG, Includes Ground Yes, Jacket Color Gray, Jacket Material PVC, Length 100 ft, Maximum Operating Temperature 176 Degrees F, Minimum Bend Radius Factor - E-Chain 8 x OD, Minimum Bend Radius Factor - Fixed 5 x OD, Minimum Bend Radius Factor - Flexible 7.5 x OD, Minimum Operating Temperature - Flexible 23 Degrees F, Number of Conductors 12
