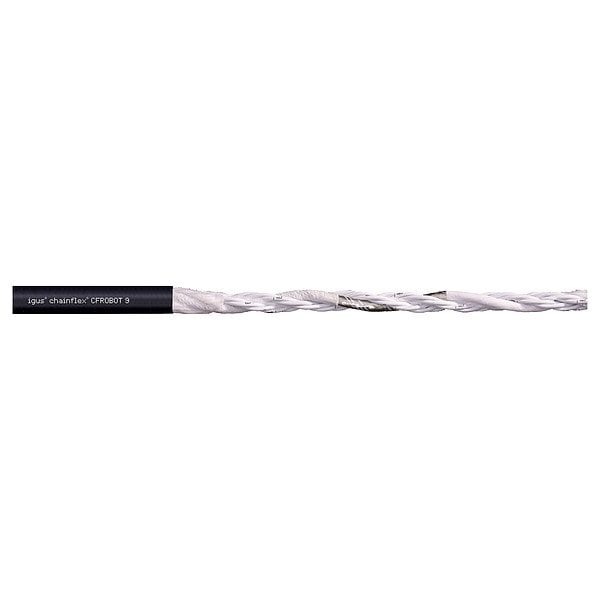

Control Cable, 5 C, Blue, PUR, 300 V, Order by the Foot
Mfr # CFROBOT9-001
Zoro # G508396497
product price:Â
$
12.19
/ea
Key Features
Number of Conductors
5
Length
Order by the Foot
Voltage
300 V
Jacket Color
Blue
Shielding
Unshielded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CFROBOT9-001
- Zoro #
- G508396497
- UPC #
- -
- Country of Origin
- Germany
- Item
- Control Cable
- Number of Conductors
- 5
- Voltage
- 300 V
- Jacket Color
- Blue
- Shielding
- Unshielded
- Conductor Material
- Copper
- Jacket Material
- PUR
- Standards
- CE 2014/35/EU, CEI 20-35, CF27.07.05.02.01.D ISO Class 1 (Outer Jacket Material), CTP C-DE.PB49.B.00416, EAC TC RU C-DE. ME77.B.01254, IPA 14644-1, 2011/65/EU (RoHS Compliant-II), NFPA 79-2012 Chapter 12.9
- Maximum Operating Temperature
- 176 Degrees F
- Product Type
- Control Cable
- Resistance Properties
- Antimicrobial, Notch Resistance, Oil and Grease Resistant, UV/Sunlight Resistant
- Conductor Color Code
- Black with White Numbers, Green/Yellow
- Includes Ground
- Yes
- Minimum Operating Temperature - Flexible
- -40 Degrees F
- Minimum Operating Temperature - Fixed
- -58 Degrees F
- Application
- For Robots, Handling & Spindle Drives
- Cable Series
- CFROBOT9
Description
Control Cable, Conductor Color Code Black with White Numbers, Green/Yellow, Conductor Material Copper, Conductor Size 17 AWG, Includes Ground Yes, Jacket Color Blue, Jacket Material PUR, Length Order by the Foot, Maximum Operating Temperature 176 Degrees F, Minimum Bend Radius Factor - E-Chain 10 x OD, Minimum Bend Radius Factor - Fixed 5 x OD, Minimum Bend Radius Factor - Flexible 8 x OD, Minimum Operating Temperature - Fixed -58 Degrees F, Minimum Operating Temperature - Flexible -40 Degrees F
