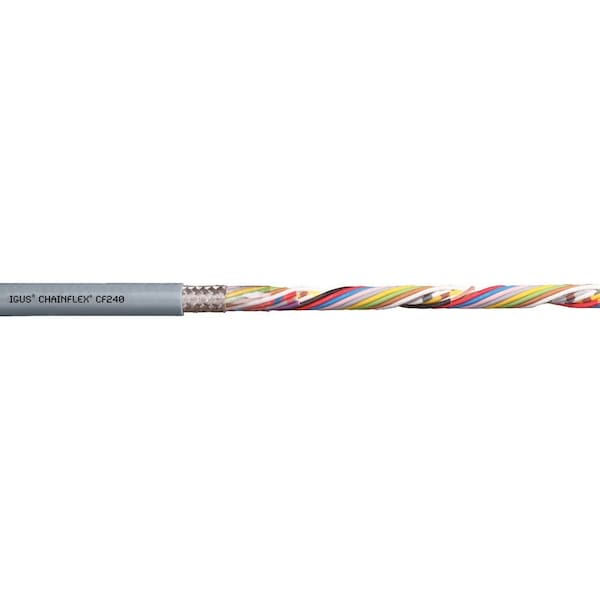

Data Cable, 22 AWG, Gray, PVC, 300 V
Mfr # CF240-03-04
Zoro # G408259496
product price:Â
$
3.45
/ea
Sold in multiples of 4 for $13.80
Key Features
Number of Conductors
4
Length
Order by the Foot
Voltage
300 V
Jacket Color
Gray
Shielding
Shielded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CF240-03-04
- Zoro #
- G408259496
- UPC #
- -
- Country of Origin
- Germany
- Item
- Data Cable
- Number of Conductors
- 4
- Voltage
- 300 V
- Jacket Color
- Gray
- Shielding
- Shielded
- Conductor Material
- Copper
- Jacket Material
- PVC
- Standards
- 2011/65/EU (RoHS Compliant-II), CE 2014/35/EU, CEI 20-35, CF240.02.24 ISO Class 1 (Outer Jacket Material), CTP C-DE.PB49.B.00416, DIN EN 50363-4-1, EAC TC RU C-DE. ME77.B.01254, FT-1, IEC 60332-1-2, IPA 14644-1, NFPA 79-2012 Chapter 12.9, PV 3.10.7 Status 1992, VW-1
- Maximum Velocity - Unsupported
- 10 fps
- Maximum Velocity - Supported
- 7 fps
- Cable Series
- CF240
- Minimum Operating Temperature - Fixed
- 5 Degrees F
- Product Type
- Data Cable
- Maximum Operating Temperature
- 158 Degrees F
- Maximum Acceleration
- 65.6 m/sq sec
- Minimum Operating Temperature - Flexible
- 23 Degrees F
- Conductor Color Code
- In Accordance with DIN 47100
- Resistance Properties
- Flame Retardant, Oil and Grease Resistant
- Conductor Configuration
- Single
- Series
- Chainflex
- Includes Ground
- No
Description
Data Cable, Conductor Color Code In Accordance with DIN 47100, Conductor Configuration Single, Conductor Material Copper, Conductor Size 22 AWG, Includes Ground No, Jacket Color Gray, Jacket Material PVC, Length Order by the Foot, Maximum Acceleration 65.6 m/sq sec, Maximum Operating Temperature 158 Degrees F, Maximum Velocity - Supported 7 fps, Maximum Velocity - Unsupported 10 fps, Minimum Bend Radius Factor - E-Chain 10 x OD, Minimum Bend Radius Factor - Fixed 5 x OD
