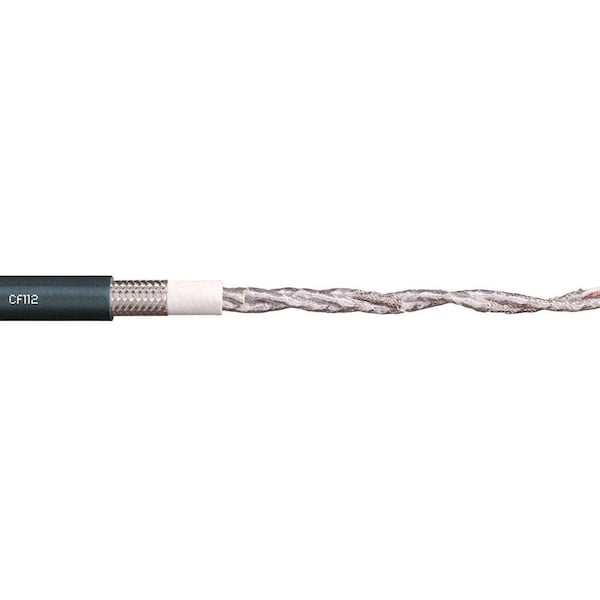

Data Cable, 24 AWG, Gray, PUR, 300 V
Mfr # CF112-02-04-02
Zoro # G008259896
product price:Â
$
9.89
/ea
Key Features
Number of Conductors
4
Length
Order by the Foot
Voltage
300 V
Jacket Color
Gray
Shielding
Shielded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CF112-02-04-02
- Zoro #
- G008259896
- UPC #
- -
- Country of Origin
- Germany
- Item
- Data Cable
- Number of Conductors
- 4
- Voltage
- 300 V
- Jacket Color
- Gray
- Shielding
- Shielded
- Conductor Material
- Copper
- Jacket Material
- PUR
- Standards
- CE 2014/35/EU, CEI 20-35, CF27.07.05.02.01.D ISO Class 1 (Outer Jacket Material), CSA, CTP C-DE.PB49.B.00420, EAC TC RU C DE.ME77.B.01255, IPA 14644-1, 2011/65/EU (RoHS Compliant-II), UL Listed
- Maximum Velocity - Supported
- 16 fps
- Minimum Operating Temperature - Fixed
- -58 Degrees F
- Maximum Operating Temperature
- 176 Degrees F
- Conductor Configuration
- Shielded Twisted Pair
- Product Type
- Data Cable
- Minimum Operating Temperature - Flexible
- -40 Degrees F
- Resistance Properties
- Coolant Resistant, Antimicrobial, Notch Resistance, Oil and Grease Resistant, UV/Sunlight Resistant
- Maximum Velocity - Unsupported
- 33 fps
- Conductor Color Code
- In Accordance with DIN 47100
- Cable Series
- CF112
- Maximum Acceleration
- 262.5 m/sq sec
- Includes Ground
- No
- Series
- Chainflex
Description
Data Cable, Conductor Color Code In Accordance with DIN 47100, Conductor Configuration Shielded Twisted Pair, Conductor Material Copper, Conductor Size 24 AWG, Includes Ground No, Jacket Color Gray, Jacket Material PUR, Length Order by the Foot, Maximum Acceleration 262.5 m/sq sec, Maximum Operating Temperature 176 Degrees F, Maximum Velocity - Supported 16 fps, Maximum Velocity - Unsupported 33 fps, Minimum Bend Radius Factor - E-Chain 10 x OD, Minimum Bend Radius Factor - Fixed 5 x OD
