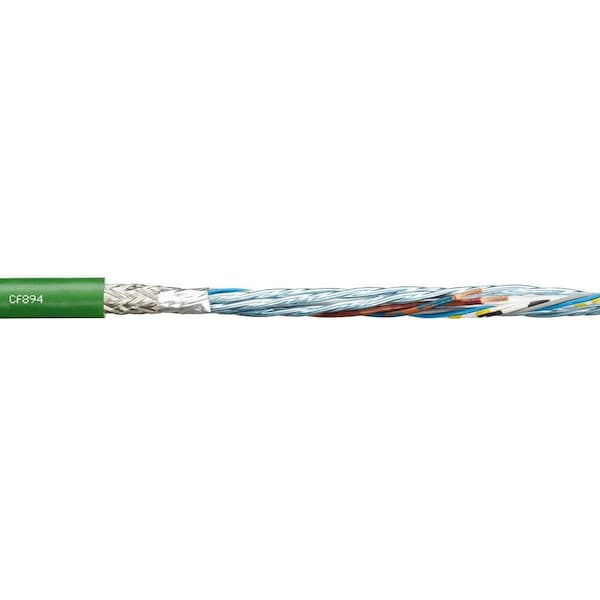

MeasuringSystemCable, Green, 0.33in-OD, 50V
Mfr # CF894-015
Zoro # G008259995
product price:Â
$
4.19
/ea
Sold in multiples of 3 for $12.57
Key Features
Length
Order by the Foot
Voltage
50 V
Jacket Color
Green
Shielding
Shielded
Conductor Material
Copper
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CF894-015
- Zoro #
- G008259995
- UPC #
- -
- Country of Origin
- Germany
- Item
- Measuring System Cable
- Voltage
- 50 V
- Jacket Color
- Green
- Shielding
- Shielded
- Conductor Material
- Copper
- Jacket Material
- PUR
- Standards
- CE, CEI 20-35, CSA AWM, CTP C-DE.PB49.B.00416, DESINA VDW, DNV Type Testing 61 935-14 HH, EAC TC RU C-DE. ME77.B.01559, NFPA 79-2012 Chapter 12.9, UL Listed
- Product Type
- Measuring System Cable
- Cable Series
- CF894
- Conductor Color Code
- Black, Blue, Brown, Brown/Green, Green, Gray, Pink, Red, Purple, White, White/Green, Yellow
- Resistance Properties
- Coolant Resistant, Antimicrobial, MUD Resistance, Notch Resistance, Oil and Grease Resistant, UV/Sunlight Resistant
- Maximum Operating Temperature
- 176 Degrees F
- Minimum Operating Temperature - Fixed
- -58 Degrees F
- Minimum Operating Temperature - Flexible
- -40 Degrees F
- Maximum Acceleration
- 65.6 m/sq sec
- Conductor Grouping
- (4) Pair 26 AWG/(4) 20 AWG
- Maximum Velocity - Unsupported
- 10 fps
- Series
- Chainflex
- Includes Ground
- No
Description
Measuring System Cable, Conductor Color Code Black, Blue, Brown, Brown/Green, Green, Gray, Pink, Red, Purple, White, White/Green, Yellow, Conductor Grouping (4) Pair 26 AWG/(4) 20 AWG, Conductor Material Copper, Includes Ground No, Jacket Color Green, Jacket Material PUR, Length Order by the Foot, Maximum Acceleration 65.6 m/sq sec, Maximum Operating Temperature 176 Degrees F, Maximum Velocity - Unsupported 10 fps, Minimum Bend Radius Factor - E-Chain 15 x OD
