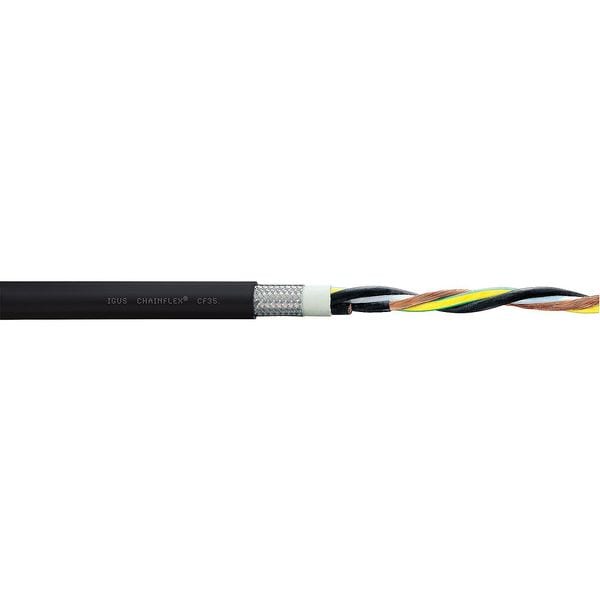

Motor Cable, 10 AWG, 4 C, Black, TPR, 1,000 V, Order by the Foot
Mfr # CF35-60-04-1
Zoro # G9711231
product price:Â $20.19
/eaKey Features
Max. Amps
53
Wire Size
10 AWG
Number of Conductors
4
Length
Order by the Foot
Voltage
1,000 V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
CF35-60-04-1
Zoro #
G9711231
UPC #
-
Country of Origin
United States
Dimensions
Wire Size
10 AWG
Length
Order by the Foot
Nominal Outside Dia.
0.61 in
Min. Bend Radius
7.5 x OD
Spool Length
Cut to Length, Order by the Foot (Example- To Order 10 ft., Order Quantity Must be 10)
Conductor Size
10 AWG
Length (Straight Wireway)
Order by the Foot
Overall Length
Order by the Foot
Minimum Bend Radius Factor - Flexible
6 x OD
Minimum Bend Radius Factor - Fixed
4 x OD
Minimum Bend Radius Factor - E-Chain
7.5 x OD
Outside Diameter
0.61 in
Nominal Outside Diameter
0.61 in
Description
Motor Cable, Conductor Color Code Green/Yellow, Black with White Numbers, Conductor Configuration Single, Conductor Material Copper, Conductor Size 10 AWG, Includes Ground Yes, Jacket Color Black, Jacket Material TPR, Length Order by the Foot, Maximum Operating Temperature 194 Degrees F, Minimum Bend Radius Factor - E-Chain 7.5 x OD, Minimum Bend Radius Factor - Fixed 4 x OD, Minimum Bend Radius Factor - Flexible 6 x OD, Minimum Operating Temperature - Flexible -49 Degrees F
