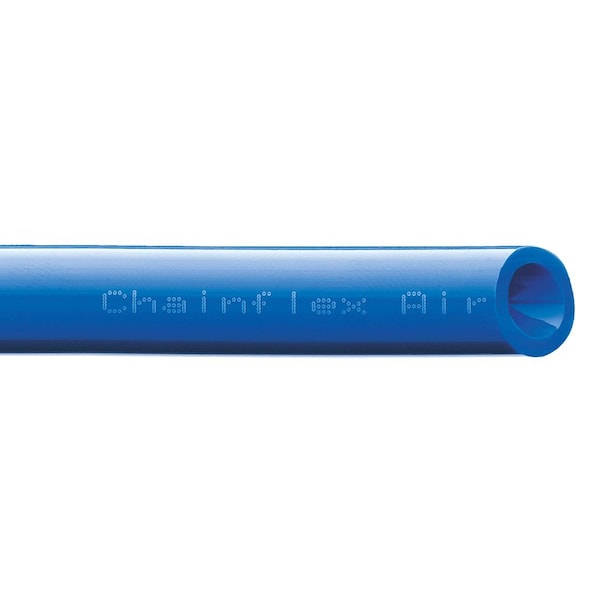

Pneumatic Tubing, PUR, 0.28 in dia, Bl
- Mfr # CAPU-A-10-0
- Zoro # G908260053
product price:Â
$
2.29
/ea
Sold in multiples of 5 for
$11.45
Key Features
Length
Order by the Foot
Standards
2011/65/EU (RoHS Compliant-II), EN 60754
Tubing Color
Blue
Maximum Operating Temperature - Flexible
176 Degrees F
Maximum Operating Pressure
174 psi
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CAPU-A-10-0
- Zoro #
- G908260053
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Length
- Order by the Foot
- Minimum Bend Radius Factor - Fixed
- 7.5 x OD
- Outside Diameter
- 0.39 in
- Minimum Bend Radius Factor - Flexible
- 10 x OD
- Inside Diameter
- 0.28 in
Details
- Item
- Pneumatic Tubing
- Standards
- 2011/65/EU (RoHS Compliant-II), EN 60754
- Tubing Color
- Blue
- Maximum Operating Temperature - Flexible
- 176 Degrees F
- Maximum Operating Pressure
- 174 psi
- Minimum Operating Temperature - Fixed
- -40 Degrees F
- Product Type
- Pneumatic Hose
- Minimum Operating Temperature - Flexible
- -13 Degrees F
- Maximum Velocity - Supported
- 20 fps
- Resistance Properties
- Abrasion Resistant, Coolant Resistant, Oil and Grease Resistant
- Tubing Series
- CAPU Series CFAIR
- Maximum Operating Temperature - Fixed
- 185 Degrees F
- Maximum Acceleration
- 164 m/sq sec
- Maximum Vacuum Pressure
- -15 psi
- Maximum Velocity - Unsupported
- 33 fps
- Tubing Material
- Polyurethane
Description
Pneumatic Tubing, Inside Diameter 0.28 in, Length Order by the Foot, Maximum Acceleration 164 m/sq sec, Maximum Operating Pressure 174 psi, Maximum Operating Temperature - Fixed 185 Degrees F, Maximum Operating Temperature - Flexible 176 Degrees F, Maximum Vacuum Pressure -15 psi, Maximum Velocity - Supported 20 fps, Maximum Velocity - Unsupported 33 fps, Minimum Bend Radius Factor - Fixed 7.5 x OD, Minimum Bend Radius Factor - Flexible 10 x OD
