This item is Discontinued.

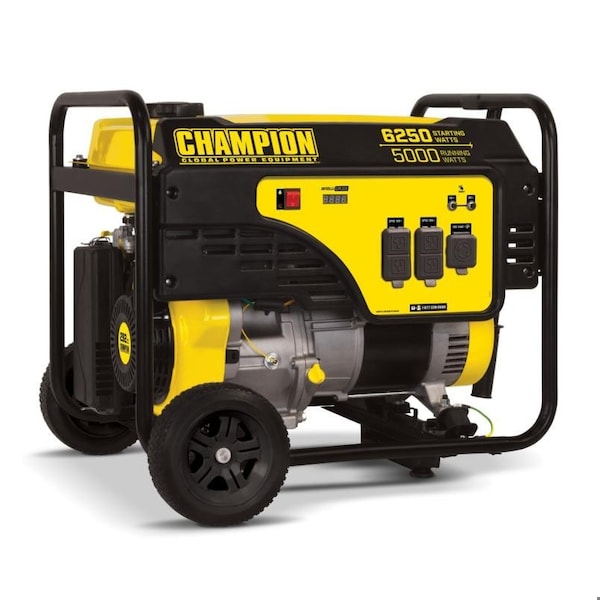

Champion Power Equipment Portable Generator, Gasoline, 5,000 W Rated, 6,250 W Surge, Recoil Start, 120/240V AC, 30 A A 100812

This item is Discontinued.

Champion Power Equipment

Portable Generator, Gasoline, 5,000 W Rated, 6,250 W Surge, Recoil Start, 120/240V AC, 30 A A (Discontinued)

Mfr # 100812
Zoro # G600404649
UPC # 817198023052
Country of Origin China
Category Portable & Inverter Generators
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
100812
Zoro #
G600404649
UPC #
817198023052
Country of Origin
China

Dimensions

Generator Height
25 3/16 in
Length
30 3/32 in
Engine Size
292cc
Length (Straight Wireway)
30 3/32 in
Overall Length
30 1/8 in
Wheel Size
8 in
Overall Height
25 3/16 in
Overall Width
25 11/16 in
Width
25 11/16 in
Height
25.2 in.
Wheel Diameter
8‚in.

Details

Engine Brand
Champion
Item
Portable Generator
Fuel Type
Gasoline
Generator Rated Watts
5,000 W
Surge Watts
6,250 W
Rated Voltage
120/240V AC
Starter Type
Recoil
Generator Amps
30 A
Generator Run Time @ 1/2 Load
9 hr
Carbon Monoxide (CO) Sensor
Yes
CARB Compliant
Yes
Fuel Tank Capacity
5.7 gal
Engine Displacement
292 cc
Wheel Kit Included
Yes
Low Oil Shut Down
Yes
Sound Level dB
74 dBA
Engine Alternator
Brush
Parallel Configuration Capable
No
Outlets
120/240V 30A Locking (L14-30R), GFCI 120V 20A Duplex (5-20R) (2)
Engine HP
8 hp
Generator Mfr. Warranty Details
3 yr Limited
Includes
Engine Oil, Oil Funnel
Run Time Hour Meter
Yes
Full Power Switch
No
Noise Level
74 dBA
Engine Type
4-Cycle
Engine Oil Type
10W-30
Wheel Type
Solid
Engine Oil Capacity
1.2 qt
Manufacturer Warranty
3 yr
Maximum Current @ 240V AC - Gasoline/Diesel
20.8 A
Weight
152.1 lb
Includes GFCI Outlets
Yes
Circuit Breaker
Yes
Rated Current @ 120V AC - Gasoline/Diesel
41.7 A
Generator Technology
Conventional
Safety Features
Low Oil Shutdown
Air Cleaner Type
Foam
Outlets Included
(2) 5-20R GFCI Duplex, L14-30R
Circuit Breakers Included
(2) 20 A
Maximum Current @ 120V AC - Gasoline/Diesel
41.7 A
Rated Current @ 240V AC - Gasoline/Diesel
20.8 A
Handle Type
Folding
Cylinder Material
Cast Iron
Includes Fuel Gauge
No
Standards
EPA
Rated Frequency
60 Hz
Run Time @ 1/2 Load - Gasoline/Diesel
9 hr
Engine Horsepower
8 hp
Starting Wattage - Gasoline/Diesel
6,250 W
Running Wattage - Gasoline/Diesel
5,000 W
Carbon Monoxide Protection
No Carbon Monoxide Detection
Includes Wheel Kit
Yes
FEATURES
Designed for Safety:Includes a low-oil shut-off sensor and 1.2-quarts of recommended 10W-30 engine oil;Reliable and Powerful:At 6250 starting watts and 5000 running watts, enjoy up to 9 hours of run time on a full tank of gasoline with a noise level of 74 dBA from 23 feet;Covered Outlets:One 120/240V 30A locking outlet and four 120V 20A GFCI outlets;Volt Guardâ„¢:Prevents overloads and keeps your valuable equipment safe from voltage spikes, plus Intelligauge keeps track of voltage, frequency and operating hours;Champion Support:Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Low Oil Shut-Off
Yes
What's included
Wheel Kit;Engine Oil;Oil Funnel
Frequency
60Hz
EPA Certified
Yes
Gasoline Starting Amps at 120V
52.1A
Automatic Voltage Regulation
Yes
Covered Outlets
Yes
Gasoline Running Amps at 120V
41.7A
Covered Circuit Breakers
No
Generator Fuel Type
Gasoline
Wheels
Yes
Engine Speed
3600
Generator Voltage
120/240V AC
Gasoline Run Time at 1/2 Load
9‚h.
Fuel Gauge
No
Gasoline Running Watts
5000W
Gasoline Running Amps at 240V
20.8A
GFCI Outlets
Yes
Gasoline Starting Amps at 240V
26A
Gasoline Capacity
5.7‚gal.
Engine Oil Included
Yes
Gasoline Tank Material
Steel
Gasoline Starting Watts
6250W
Voltmeter
Intelligauge
Generator Engine Brand
Champion
Generator Starter Type
Recoil

Description

Portable Generator, Carbon Monoxide Protection No Carbon Monoxide Detection, Generator Technology Conventional, Fuel Type Gasoline, Running Wattage - Gasoline/Diesel 5,000 W, Starting Wattage - Gasoline/Diesel 6,250 W, Rated Voltage 120/240V AC, Rated Current @ 120V AC - Gasoline/Diesel 41.7 A, Starter Type Recoil, Run Time @ 1/2 Load - Gasoline/Diesel 9 hr, CARB Compliant Yes, Parallel Configuration Capable No, Engine Brand Champion, Outlets Included (2) 5-20R GFCI Duplex, L14-30R
