This item is Discontinued.

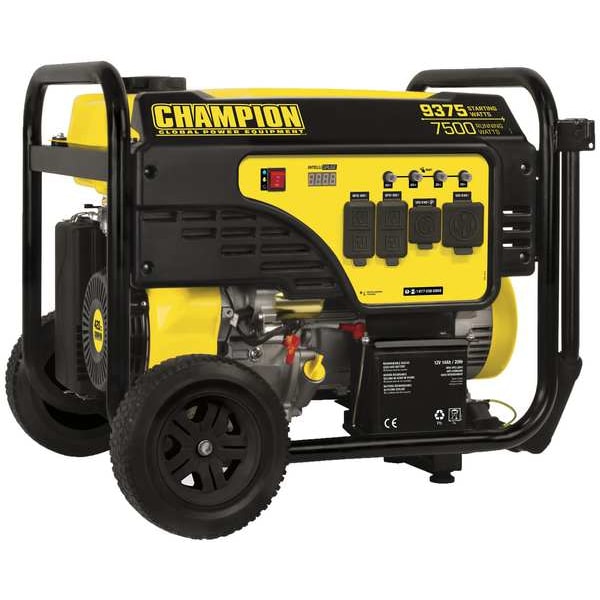

Champion Power Equipment Portable Generator, Gasoline, 7,500 W Rated, 9,375 W Surge, Electric, Recoil Start, 120/240V AC 100814

This item is Discontinued.

Champion Power Equipment

Portable Generator, Gasoline, 7,500 W Rated, 9,375 W Surge, Electric, Recoil Start, 120/240V AC (Discontinued)

Mfr # 100814
Zoro # G200404643
UPC # 817198023076
Country of Origin China
Category Portable & Inverter Generators
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
100814
Zoro #
G200404643
UPC #
817198023076
Country of Origin
China

Dimensions

Engine Size
420cc
Length
29 29/32 in
Generator Height
25 3/16 in
Height
25.2 in.
Width
27 3/16 in
Length (Straight Wireway)
29 29/32 in
Wheel Size
9.5 in
Overall Height
25 3/16 in
Overall Length
29 7/8 in
Overall Width
27 3/16 in
Wheel Diameter
9.5‚in.

Details

Engine Brand
Champion
Item
Portable Generator
Fuel Type
Gasoline
Generator Rated Watts
7,500 W
Surge Watts
9,375 W
Rated Voltage
120/240V AC
Starter Type
Electric, Recoil
Generator Amps
62.5/31.3
Generator Run Time @ 1/2 Load
8.0 hr
CARB Compliant
Yes
Parallel Configuration Capable
No
Outlets
120/240V 30A Locking (L14-30R), GFCI 120V 20A Duplex (5-20R) (2), 120/240V 50A (14-50R)
Series
CHAMPION POWER EQUIPMENT
Generator Fuel Type
Gasoline
Generator Starter Type
Electric/Recoil
Fuel Tank Capacity
5.7 gal
Engine HP
14 hp
Includes
Battery, Engine Oil, Oil Funnel
Full Power Switch
No
Wheel Kit Included
Yes
Engine Alternator
Brush
Generator Voltage
120V AC
Generator Mfr. Warranty Details
3 yr Limited
Low Oil Shut Down
Yes
Sound Level dB
74 dBA
Generator Engine Brand
Champion
Engine Displacement
420 cc
Run Time Hour Meter
Yes
Noise Level
74 dBA
Engine Oil Capacity
1.2 qt
Engine Type
4-Cycle
Engine Oil Type
10W-30
Wheel Type
Solid
Includes GFCI Outlets
Yes
Carbon Monoxide Protection
No Carbon Monoxide Detection
Safety Features
Low Oil Shutdown
Air Cleaner Type
Foam
Rated Current @ 240V AC - Gasoline/Diesel
31.3 A
Cylinder Material
Cast Iron
Rated Frequency
60 Hz
Maximum Current @ 120V AC - Gasoline/Diesel
62.5 A
Manufacturer Warranty
3 yr
Standards
EPA
Includes Fuel Gauge
No
Weight
199.1 lb
Starting Wattage - Gasoline/Diesel
9,375 W
Running Wattage - Gasoline/Diesel
7,500 W
Circuit Breakers Included
(2) 20 A, (2) 30 A
Handle Type
Folding
Circuit Breaker
Yes
Rated Current @ 120V AC - Gasoline/Diesel
62.5 A
Run Time @ 1/2 Load - Gasoline/Diesel
8 hr
Engine Horsepower
14 hp
Outlets Included
14-50R, (2) 5-20R GFCI Duplex, L14-30R
Includes Wheel Kit
Yes
Maximum Current @ 240V AC - Gasoline/Diesel
31.3 A
Generator Technology
Conventional
Wheels
Yes
Battery
Yes
Gasoline Running Watts
7500W
Engine Oil Included
Yes
Gasoline Starting Amps at 120V
78.1A
Gasoline Starting Watts
9375W
FEATURES
Ultra-Powerful:At 9375 starting watts and 7500 running watts, enjoy up to 8 hours of run time on a full tank of gasoline with a noise level of 74 dBA from 23 feet;Electric start:Trust the reliable 420cc Champion engine with its battery-included electric start featuring a reliable toggle switch, plus built-in Cold Start Technology for easy starts in cold weather;Covered Outlets:Four 120V 20A GFCI outlets, 120/240V 30A locking outlet and a 120/240V 50A outlet (14-50R), plus Volt Guardâ„¢ built-in surge protector prevents overloads and keeps your equipment safe;Intelligauge:Keep track of voltage, hertz and run-time hours to easily monitor power output and track maintenance intervals;Champion Support:includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Volts
120/240
Gasoline Run Time at 1/2 Load
8‚h.
Frequency
60Hz
Covered Outlets
Yes
Gasoline Running Amps at 120V
62.5A
GFCI Outlets
Yes
Gasoline Capacity
5.7‚gal.
What's included
Battery;Wheel Kit;Engine Oil;Oil Funnel
Gasoline Starting Amps at 240V
39.1A
Automatic Voltage Regulation
Yes
Gasoline Running Amps at 240V
31.3A
Start Type
Recoil, Electric
Voltmeter
Intelligauge
EPA Certified
Yes
Fuel Gauge
No
Covered Circuit Breakers
No
Engine Speed
3600
Low Oil Shut-Off
Yes
Gasoline Tank Material
Steel

Description

Portable Generator, Carbon Monoxide Protection No Carbon Monoxide Detection, Generator Technology Conventional, Fuel Type Gasoline, Running Wattage - Gasoline/Diesel 7,500 W, Starting Wattage - Gasoline/Diesel 9,375 W, Rated Voltage 120/240V AC, Rated Current @ 120V AC - Gasoline/Diesel 62.5 A, Starter Type Electric, Recoil, Run Time @ 1/2 Load - Gasoline/Diesel 8 hr, CARB Compliant Yes, Parallel Configuration Capable No, Engine Brand Champion
