This item is Discontinued.

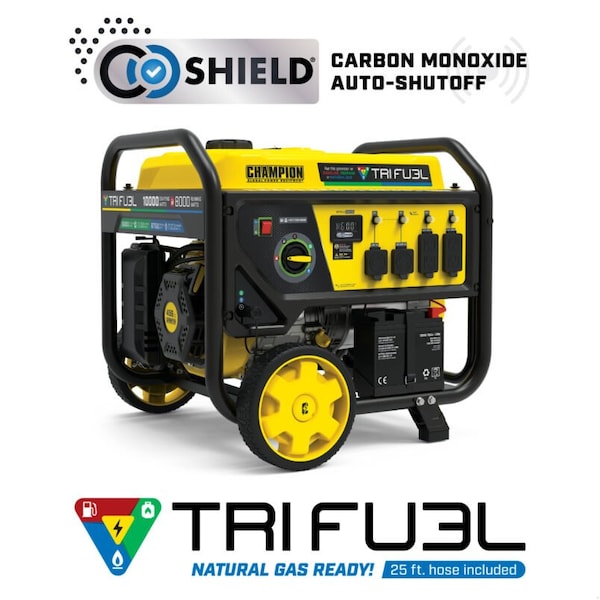

Champion Power Equipment Portable Generator, Gasoline/Natural Gas/Propane, 8,000 W Rated, 10,000 W Surge, 120/240V AC 100416

This item is Discontinued.

Champion Power Equipment

Portable Generator, Gasoline/Natural Gas/Propane, 8,000 W Rated, 10,000 W Surge, 120/240V AC (Discontinued)

Mfr # 100416
Zoro # G703529379
UPC # 817198020617
Country of Origin China
Category Portable & Inverter Generators
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
100416
Zoro #
G703529379
UPC #
817198020617
Country of Origin
China

Dimensions

Length
27 19/32 in
Engine Size
459cc
Generator Height
26 in
Wheel Size
10 in
Overall Length
27 5/8 in
Overall Height
26 in
Overall Width
28 3/16 in
Height
26 in.
Width
28 3/16 in
Wheel Diameter
10‚in.

Details

Engine Brand
Champion
Item
Portable Generator
Fuel Type
Gasoline/Natural Gas/Propane
Generator Rated Watts
8,000 W
Surge Watts
10,000 W
Rated Voltage
120/240V AC
Starter Type
Electric, Recoil
Generator Amps
66.7 /33.3
Generator Run Time @ 1/2 Load
12.5 hr/5 hr
Carbon Monoxide (CO) Sensor
Yes
CARB Compliant
Yes
Parallel Configuration Capable
No
Portable Generator Technology
Tri Fuel, CO Shield®
Fuel Tank Capacity
8.5 gal
Engine HP
17 hp
Run Time Hour Meter
Yes
Outlets
GFCI 120V 20A Duplex (5-20R) (2), 120V 30A Locking (L5-30R), 120/240V 30A (L14-30R)
Engine Alternator
Brush
Generator Outlets
120/240V 30A L14-30R, 120V 30A Locking L5-30R, GFCI 120V 20A Duplex 5-20R
Generator Mfr. Warranty Details
3 Yr Limited Warranty
Includes
Engine Oil, Natural Gas Hose with NPT Adapter, Oil Funnel, Propane (LPG) Hose
Wheel Kit Included
Yes
Low Oil Shut Down
Yes
Full Power Switch
No
Sound Level dB
74 dBA
Engine Displacement
459 cc
Engine Type
4-Cycle
Engine Oil Capacity
1.1 qt
Wheel Type
Solid
Noise Level
74 dBA
Engine Oil Type
10W-30
Carbon Monoxide Protection
Carbon Monoxide Shutdown
Starting Wattage - Propane (LPG)
9,000 W
Maximum Current @ 240V AC - Propane (LPG)
37.5 A
Rated Current @ 120V AC - Natural Gas (NG)
58.3 A
Starting Wattage - Natural Gas (NG)
8,750 W
Circuit Breaker
Yes
Safety Features
Low Oil Shutdown
Handle Type
Folding
Rated Current @ 240V AC - Gasoline/Diesel
33.3 A
Maximum Current @ 120V AC - Propane (LPG)
75 A
Running Wattage - Gasoline/Diesel
8,000 W
Engine Horsepower
17 hp
Maximum Current @ 240V AC - Natural Gas (NG)
36.5 A
Generator Technology
Conventional
Starting Wattage - Gasoline/Diesel
10,000 W
Outlets Included
(2) 5-20R GFCI Duplex, L14-30R, L5-30R
Rated Current @ 120V AC - Propane (LPG)
60 A
Maximum Current @ 120V AC - Natural Gas (NG)
72.9 A
Rated Frequency
60 Hz
Includes GFCI Outlets
Yes
Running Wattage - Propane (LPG)
7,200 W
Running Wattage - Natural Gas (NG)
7,000 W
Rated Current @ 240V AC - Natural Gas (NG)
29.2 A
Manufacturer Warranty
3 yr
Includes Fuel Gauge
Yes
Maximum Current @ 120V AC - Gasoline/Diesel
83.3 A
Cylinder Material
Cast Iron
Rated Current @ 240V AC - Propane (LPG)
30 A
Includes Wheel Kit
Yes
Run Time @ 1/2 Load - Gasoline/Diesel
12.5 hr
Maximum Current @ 240V AC - Gasoline/Diesel
41.7 A
Air Cleaner Type
Foam
Standards
EPA
Circuit Breakers Included
(2) 20 A, (2) 30 A
Rated Current @ 120V AC - Gasoline/Diesel
66.7 A
Run Time @ 1/2 Load - Propane (LPG)
5 hr
Weight
207 lb
EPA Certified
Yes
Generator Voltage
120/240V AC
Covered Outlets
Yes
Gasoline Starting Amps at 240V
41.7A
Propane Starting Amps at 120V
75A
Gasoline Running Amps at 240V
33.3A
Natural Gas Starting Amps at 240V
36.5A
Wheels
Yes
Natural Gas Running Amps at 120V
58.3A
Natural Gas Running Amps at 240V
29.2A
FEATURES
Tri-Fuel Technology:Your 8000-watt portable generator operates on natural gas, propane, or gasoline, plus natural gas and propane hoses are included so the unit is ready to run on any fuel right out of the box;Electric Start:Power up the 459cc Champion engine with the handy rocker switch, battery included;Intelligauge with CO Shield®:Track voltage, frequency, session run time, and total run time to monitor output and track maintenance intervals, plus the UL-recognized sensor uses an LED to indicate CO shutoff or fault;Powerful:Gasoline: 10,000 starting watts and 8000 running watts, propane: 9000 starting watts and 7200 running watts, natural gas: 8750 starting watts and 7000 running watts and engine oil is included;Champion Support:Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Propane Starting Amps at 240V
37.5A
GFCI Outlets
Yes
Frequency
60Hz
Gasoline Running Watts
8000W
Propane Starting Watts
9000W
Natural Gas Starting Amps at 120V
72.9A
Generator Fuel Type
Gasoline, Natural Gas, Liquid Propane
Engine Oil Included
Yes
Covered Circuit Breakers
Yes
What's included
Engine Oil;Oil Funnel;Natural Gas Hose with NPT Adapter;Propane (LPG) Hose;Wheel Kit
Fuel Gauge
Yes
Propane Running Amps at 240V
30A
Gasoline Starting Amps at 120V
83.3A
Propane Running Watts
7200W
Natural Gas Starting Watts
8750W
Gasoline Starting Watts
10000W
Gasoline Running Amps at 120V
66.7A
Low Oil Shut-Off
Yes
Gasoline Tank Material
Steel
Generator Engine Brand
Champion
Voltmeter
Intelligauge
Natural Gas Running Watts
7000W
Battery
Yes
Propane Run Time at 1/2 Load
5‚h.
Gasoline Capacity
8.5‚gal.
Gasoline Run Time at 1/2 Load
12.5‚h.
Automatic Voltage Regulation
No
Propane Running Amps at 120V
60A
Engine Speed
3600
Generator Starter Type
Electric/Recoil

Description

Portable Generator, Carbon Monoxide Protection Carbon Monoxide Shutdown, Generator Technology Conventional, Fuel Type Gasoline/Natural Gas/Propane, Running Wattage - Gasoline/Diesel 8,000 W, Starting Wattage - Gasoline/Diesel 10,000 W, Rated Voltage 120/240V AC, Rated Current @ 120V AC - Gasoline/Diesel 66.7 A, Starter Type Electric, Recoil, Run Time @ 1/2 Load - Gasoline/Diesel 12.5 hr, CARB Compliant Yes, Parallel Configuration Capable No, Engine Brand Champion
