This item is Discontinued.

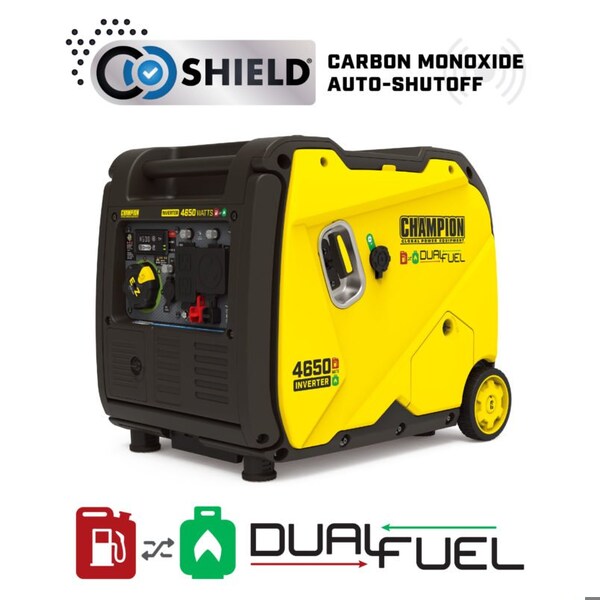

Champion Power Equipment Portable Generator, Gasoline/Propane, 3,285 W/3,650 W Rated, 4,650 W Surge, Electric, Recoil Start 201120

This item is Discontinued.

Champion Power Equipment

Portable Generator, Gasoline/Propane, 3,285 W/3,650 W Rated, 4,650 W Surge, Electric, Recoil Start (Discontinued)

Mfr # 201120
Zoro # G408061990
UPC # 817198025728
Country of Origin China
Category Portable & Inverter Generators
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
201120
Zoro #
G408061990
UPC #
817198025728
Country of Origin
China

Dimensions

Engine Size
212cc
Length
23 3/16 in
Generator Height
20 3/32 in
Overall Length
23 3/16 in
Overall Width
17 11/16 in
Wheel Size
5 in
Overall Height
20 1/8 in
Height
20.1 in.
Width
17 11/16 in
Wheel Diameter
5‚in.

Details

Engine Brand
Champion
Item
Portable Generator
Fuel Type
Gasoline/Propane
Generator Rated Watts
3,285 W/3,650 W
Surge Watts
4,650 W
Rated Voltage
120V AC
Starter Type
Electric, Recoil
Generator Amps
27.4/30.4/38.8
Carbon Monoxide (CO) Sensor
Yes
CARB Compliant
Yes
Generator Outlets
120V 20A Duplex (5-20R), 120V 30A (TT-30R), 12VDC Automotive, Parallel
Generator Mfr. Warranty Details
3 yr Limited
Outlets
120V 20A Duplex (5-20R), 120V 30A (TT-30R), 12V DC Automotive, Parallel
Wheel Kit Included
Yes
Low Oil Shut Down
Yes
Includes
8/10 mm Wrench, Engine Oil, Oil Funnel, Propane (LPG) Hose, Reversible Phillips/Flathead Screwdriver, Spark Plug Wrench, USB Adapter
Portable Generator Technology
Dual Fuel, CO Shield®
Engine Alternator
Inverter
Fuel Tank Capacity
2.3 gal
Parallel Configuration Capable
Yes
Engine Displacement
212 cc
Sound Level dB
61 dBA
Generator Run Time @ 1/4 Load
14 hr, 21 hr
Engine Oil Type
10W-30
Engine Oil Capacity
0.5 qt
Wheel Type
Solid
Engine Type
4-Cycle
Noise Level
61 dBA
Running Wattage - Propane (LPG)
3,285 W
Standards
EPA, PGMA
Run Time @ 1/4 Load - Gasoline/Diesel
14 hr
Safety Features
Low Oil Shutdown
Air Cleaner Type
Foam
Maximum Current @ 120V AC - Gasoline/Diesel
38.8 A
Outlets Included
12V DC Automotive, 5-20R Duplex, TT-30R
Carbon Monoxide Protection
Carbon Monoxide Shutdown
Manufacturer Warranty
3 yr
Handle Type
Folding
Includes GFCI Outlets
No
Starting Wattage - Propane (LPG)
4,650 W
Running Wattage - Gasoline/Diesel
3,650 W
Circuit Breakers Included
Yes
Includes Fuel Gauge
Yes
Starting Wattage - Gasoline/Diesel
4,650 W
Maximum Current @ 120V AC - Propane (LPG)
38.8 A
Rated Frequency
60 Hz
Includes Wheel Kit
Yes
Weight
103 lb
Generator Technology
Inverter
Rated Current @ 120V AC - Gasoline/Diesel
30.4 A
Rated Current @ 120V AC - Propane (LPG)
27.4 A
Run Time @ 1/4 Load - Propane (LPG)
21 hr
Cylinder Material
Steel
Circuit Breaker
Yes
Parallel Capability
Yes
Propane Running Watts
3285W
Gasoline Running Amps at 120V
30.4A
Propane Starting Watts
4650W
Engine Oil Included
Yes
Propane Run Time at 1/4 Load
21‚h.
Gasoline Running Watts
3650W
Covered Outlets
Yes
Automatic Voltage Regulation
No
Generator Fuel Type
Gasoline, Propane (LPG)
Generator Engine Brand
Champion
Generator Voltage
120V
Inverter
Traditional
Frequency
60Hz
Voltmeter
Intelligauge with Power Meter
DC Operation
Yes
Gasoline Starting Watts
4650W
Wheels
Yes
Covered Circuit Breakers
Yes
What's included
Propane (LPG) Hose;USB Adapter;Engine Oil;Oil Funnel;8/10mm Wrench;Spark Plug Wrench;Reversible Phillips/Flathead Screwdriver
Gasoline Run Time at 1/4 Load
14‚h.
Fuel Gauge
Yes
EPA Certified
Yes
Gasoline Capacity
2.3‚gal.
Propane Starting Amps at 120V
38.8A
Gasoline Tank Material
Steel
Generator Starter Type
Electric/Recoil
Propane Running Amps at 120V
27.4A
Gasoline Starting Amps at 120V
38.8A
Battery
Yes
Engine Speed
Variable
FEATURES
Dual Fuel:Operate your 4650-watt portable generator right out of the box on either gasoline or propane;Quiet Technology and Extended Run Time:61 dBA is great for RVs, tailgating, or camping with 4650 starting watts, 3650 running watts and up to 14 hours run time on gasoline, and 3285 running watts and up to 21 hours on propane;Parallel Ready:The optional parallel kit (sold separately) enables this inverter to connect with another Champion inverter to increase your power output;Intelligauge with Power Meter:Monitor voltage, frequency and operating hours with ease, plus the EZ Start Dial simplifies startup while the UL-recognized sensor uses an LED to indicate CO Shield® shutoff or fault;Champion Support:Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Low Oil Shut-Off
Yes

Description

Portable Generator, Carbon Monoxide Protection Carbon Monoxide Shutdown, Generator Technology Inverter, Fuel Type Gasoline/Propane, Running Wattage - Gasoline/Diesel 3,650 W, Starting Wattage - Gasoline/Diesel 4,650 W, Rated Voltage 120V AC, Rated Current @ 120V AC - Gasoline/Diesel 30.4 A, Starter Type Electric, Recoil, Run Time @ 1/2 Load - Gasoline/Diesel Not Applicable, CARB Compliant Yes, Parallel Configuration Capable Yes, Engine Brand Champion
