This item is Discontinued.

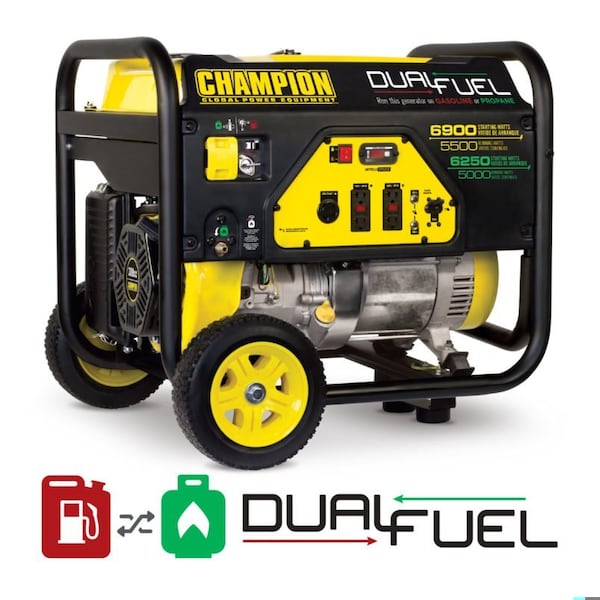

Champion Power Equipment Portable Generator, Gasoline/Propane, 5,500 W/5,000 W Rated, 5,500 W Surge, Recoil Start 100231

This item is Discontinued.

Champion Power Equipment

Portable Generator, Gasoline/Propane, 5,500 W/5,000 W Rated, 5,500 W Surge, Recoil Start (Discontinued)

Mfr # 100231
Zoro # G7884007
UPC # 850878006198
Country of Origin China
Category Portable & Inverter Generators
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
100231
Zoro #
G7884007
UPC #
850878006198
Country of Origin
China

Dimensions

Length
27"
Generator Height
24-3/4"
Engine Size
389cc
Length (Straight Wireway)
27 in
Overall Length
27 in
Overall Width
27 11/16 in
Overall Height
24 3/8 in
Wheel Size
8 in
Height
24.4 in.
Width
27-45/64"
Wheel Diameter
8‚in.

Details

Engine Brand
Champion
Item
Portable Generator
Fuel Type
Gasoline/Propane
Generator Rated Watts
5,500 W/5,000 W
Surge Watts
5,500 W
Rated Voltage
120/240V AC
Starter Type
Recoil
Generator Amps
45.8/22.9 (Gasoline)/41.7/20.8 (LPG)
Generator Run Time @ 1/2 Load
9 hr/6.5 hr
Carbon Monoxide (CO) Sensor
No
CARB Compliant
Yes
Engine Displacement
389cc
Wheel Kit Included
Yes
Engine HP
13.0
Generator Mfr. Warranty Details
3 yr. Limited
Fuel Tank Capacity
6.1 gal.
Parallel Configuration Capable
No
Full Power Switch
No
Series
Dual Fuel
Sound Level dB
74
Run Time Hour Meter
Yes
Low Oil Shut Down
Yes
Run Time @ Full Load
9 hr.
Includes
Owners Manual, Quick Start Guide, Wheel/Handle Kit, Oil Funnel, Propane Hose
Engine Alternator
Brush
Generator Outlets
5-20R 120VAC Duplex GFCI (2), L14-30R 120/240VAC Locking Receptacle (1)
Portable Generator Technology
Dual Fuel
Outlets
120/240V 30A Locking (L14-30R), GFCI 120V 20A Duplex (5-20R) (2)
Wheel Type
Solid
Engine Oil Capacity
1.2 qt
Engine Type
4-Cycle
Noise Level
74 dBA
Engine Oil Type
10W-30
Engine Horsepower
13 hp
Manufacturer Warranty
3 yr
Cylinder Material
Cast Iron
Rated Current @ 120V AC - Propane (LPG)
41.7 A
Rated Frequency
60 Hz
Running Wattage - Propane (LPG)
5,000 W
Circuit Breakers Included
(2) 20 A
Starting Wattage - Gasoline/Diesel
6,900 W
Includes Fuel Gauge
No
Running Wattage - Gasoline/Diesel
5,500 W
Circuit Breaker
Yes
Handle Type
Folding
Standards
EPA
Generator Technology
Conventional
Safety Features
Low Oil Shutdown
Maximum Current @ 240V AC - Propane (LPG)
26 A
Maximum Current @ 120V AC - Propane (LPG)
52.1 A
Rated Current @ 120V AC - Gasoline/Diesel
45.8 A
Rated Current @ 240V AC - Gasoline/Diesel
22.9 A
Run Time @ 1/2 Load - Gasoline/Diesel
9 hr
Outlets Included
(2) 5-20R GFCI Duplex, L14-30R
Includes Wheel Kit
Yes
Carbon Monoxide Protection
No Carbon Monoxide Detection
Starting Wattage - Propane (LPG)
6,250 W
Weight
162.5 lb
Maximum Current @ 240V AC - Gasoline/Diesel
28.8 A
Rated Current @ 240V AC - Propane (LPG)
20.8 A
Includes GFCI Outlets
Yes
Air Cleaner Type
Foam
Maximum Current @ 120V AC - Gasoline/Diesel
57.5 A
Run Time @ 1/2 Load - Propane (LPG)
6.5 hr
Low Oil Shut-Off
Yes
Gasoline Starting Amps at 120V
57.5A
Propane Running Amps at 120V
41.7A
FEATURES
Dual Fuel:Operate your 5500-watt portable generator right out of the box on either gasoline or propane, plus the unit holds 1.2-quarts of oil and has a low oil shut-off sensor;Fuel Safety Switch:Our patented fuel selector switch allows for quick and safe switching between fuel sources;Intelligauge:Keep track of voltage, hertz and run-time hours to easily monitor power output and track maintenance intervals;Outlets:One 120/240V 30A locking outlet (L14-30R) and four 120V 20A GFCI protected household outlets (5-20R);Champion Support:includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Gasoline Capacity
6‚gal.
Generator Starter Type
Recoil
Gasoline Run Time at 1/2 Load
9‚h.
Covered Outlets
No
Covered Circuit Breakers
No
Propane Run Time at 1/2 Load
6.5‚h.
What's included
Oil Funnel;Wheel Kit;Propane (LPG) Hose
Voltmeter
Intelligauge
Fuel Gauge
No
Generator Voltage
120/240V AC
Gasoline Running Amps at 120V
45.8A
Propane Running Watts
5000W
EPA Certified
Yes
Generator Fuel Type
Gasoline/LPG
Gasoline Tank Material
Steel
Frequency
60Hz
Automatic Voltage Regulation
Yes
Propane Running Amps at 240V
20.8A
Propane Starting Amps at 120V
52.1A
Engine Speed
3600
Wheels
Yes
Propane Starting Watts
6250W
Gasoline Running Amps at 240V
22.9A
GFCI Outlets
Yes
Gasoline Running Watts
5500W
Generator Engine Brand
Champion
Propane Starting Amps at 240V
26A
Gasoline Starting Amps at 240V
28.8A
Gasoline Starting Watts
6900W

Description

Portable Generator, Carbon Monoxide Protection No Carbon Monoxide Detection, Generator Technology Conventional, Fuel Type Gasoline/Propane, Running Wattage - Gasoline/Diesel 5,500 W, Starting Wattage - Gasoline/Diesel 6,900 W, Rated Voltage 120/240V AC, Rated Current @ 120V AC - Gasoline/Diesel 45.8 A, Starter Type Recoil, Run Time @ 1/2 Load - Gasoline/Diesel 9 hr, CARB Compliant Yes, Parallel Configuration Capable No, Engine Brand Champion, Outlets Included (2) 5-20R GFCI Duplex, L14-30R
