S Motor
Mfr # 103-2037-012
Zoro # G416250973
product price:Â
$
801.99
/ea
Free Shipping & Returns
Key Features
Series
S Series
Flange Mount
SAE A 2-Bolt
Displacement
73.74 cu. cm/rev
Max. RPM
304 RPM
Continuous Torque
2,932 in-lb
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 103-2037-012
- Zoro #
- G416250973
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Port Size
- 7/8"-14 UNF
- Shaft Dia.
- 1 in
- Height
- 4.24 in
- Length
- 5.34 in
Details
- Series
- S Series
- Flange Mount
- SAE A 2-Bolt
- Displacement
- 73.74 cu. cm/rev
- Max. RPM
- 304 RPM
- Continuous Torque
- 2,932 in-lb
- Pressure Rating
- 1,850 psi
- Min. Oil Viscosity
- 70 SUS
- Item
- Hydraulic Motor
- Shaft Type
- Straight
- Port Location
- Side
Description

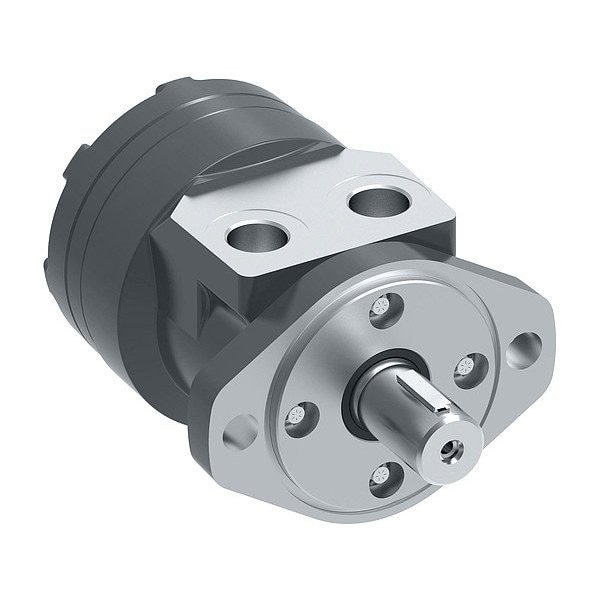

Hydraulic Motor, 73.74 cu. cm/rev Displacement, Continuous Torque 2,932 in-lb, Flange Mount SAE A 2-Bolt, 7/8 In.-14 UNF Port Size, Side Port Location, Shaft Dia. 1 in, Min. Oil Viscosity 70 SUS, Max. RPM 304 RPM, Pressure Rating 1,850 psi, Shaft Type Straight, Length 5.34 in, Height 4.24 in
