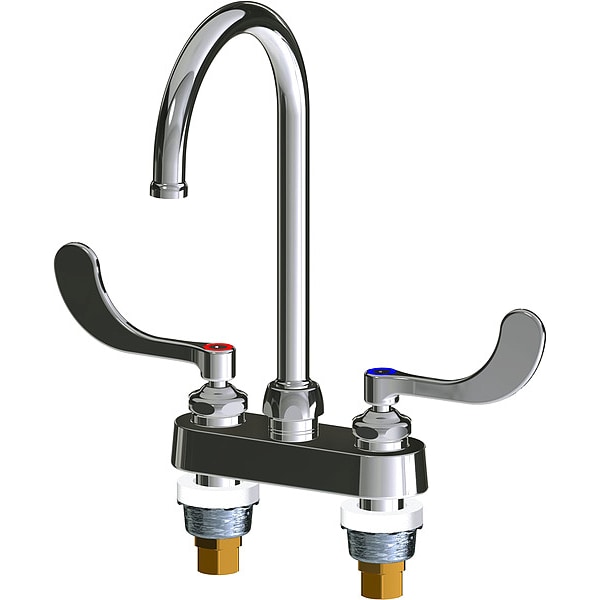

Chicago Faucet 6'' rigid/swing gooseneck 1.5GPM FC 895-GN6FC-317ABCP - main

6'' rigid/swing gooseneck 1.5GPM FC

  • Mfr # 895-GN6FC-317ABCP

  • Zoro # G213302073

product price:  $390.99
/ea
Free Shipping & Returns

Key Features

Finish
Polished Chrome
Handle Type
Wristblade
Series
895
Spout Shape
Gooseneck
Spout Reach
6 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
895-GN6FC-317ABCP
Zoro #
G213302073
UPC #
611943186371
Country of Origin
United States

Dimensions

Overall Height
12 1/2 in
Spout Outlet Height
7 1/2 in
For Surface Thickness - Maximum
1 1/2 in
Spout Height - Maximum
6 3/4 in
Overall Width
6 in
For Mounting Hole Diameter - Minimum
1 1/8 in
For Mounting Hole Diameter - Maximum
1 3/8 in

Details

Finish
Polished Chrome
Handle Type
Wristblade
Series
895
Spout Shape
Gooseneck
Spout Reach
6 in
Flow Rate - Maximum
1.5 gpm
Number of Mounting Holes
2
Body Material
Cast Brass
Item
Kitchen and Bathroom Faucets
Handle Material
Cast Brass
Application
Commercial
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, NSF/ANSI/CAN 372 Low Lead Content, NSF/ANSI/CAN 61: Q Less Than or Equal To 1
Power Source
Manual
Valve Type
Compression
Includes
Mounting Hardware
ADA Compliance
ADA Compliant
Features
Flow control in spout base to prevent vandalism, Mounting Hardware Included
Ligature Resistance
Not Ligature-Resistant
Pressure - Maximum
125 psi
Temperature - Minimum
40 Degrees F
Temperature Control
Adjustable Temperature
Compatible Cartridge Manufacturer Part Number
1-099XTJKABNF, 1-100XTJKABNF
Vandal Resistance
Vandal-Resistant Handle
Operation Method
Manual
Temperature - Maximum
140 Degrees F
Includes Drain
Drain Not Included
Mounting Hole Center-to-Center Distance - Maximum
4 in
Inlet Connection Type
NPSM
Flow Type
Laminar
CEC Compliance
Not CEC Compliant
Product Type
Faucet
Warranty
1 yr Limited, 5 yr Limited, Lifetime Limited
Mounting Hole Center-to-Center Distance - Minimum
4 in
For Water Temperature
Hot/Cold
Legend Style
Color
Water Supply Type
Hot and Cold Lines
Spout Style
Swivel
For Use With
Quaturn(TM) Compression Operating Cartridge, Rigid/Swing Gooseneck Spout, Wristblade Handle

Description

Item Kitchen and Bathroom Faucets

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This item has been restricted from sale in the following states: CA
