  11. Electronic Sensor Single Hole Mount, 1 Hole Mid Arc Bathroom Faucet, Chrome plated

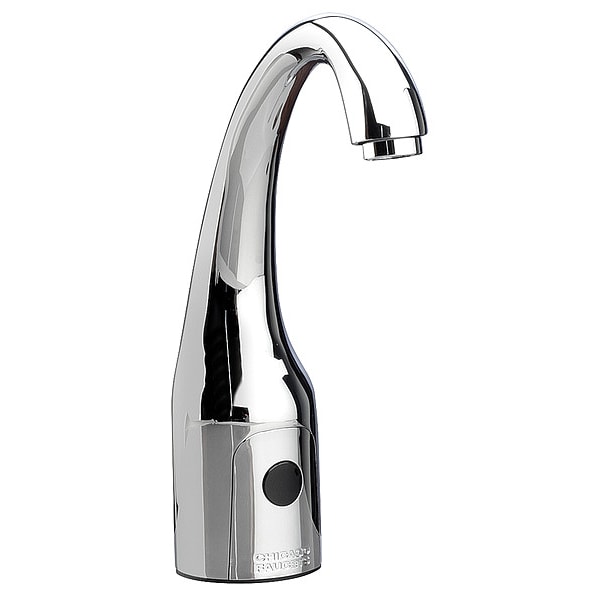

Chicago Faucet Electronic Sensor Single Hole Mount, 1 Hole Mid Arc Bathroom Faucet, Chrome plated WWG116.879.AB.1T - main

Electronic Sensor Single Hole Mount, 1 Hole Mid Arc Bathroom Faucet, Chrome plated

  • Mfr # WWG116.879.AB.1T

  • Zoro # G5376804

product price: $763.12
/ea
Free Shipping & Returns

Key Features

Height
9-1/2"
Application
Commercial
Finish
Polished Chrome
Flow Outlet Type
Nonaerated
Faucet Operation
Sensor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WWG116.879.AB.1T
Zoro #
G5376804
UPC #
611943542665
Country of Origin
United States

Dimensions

Height
9-1/2"
Manufacturers Warranty Length
Lifetime Warranty Metal Cast, Forged, Stamped of Formed Portion, 5 yr Limited Mechanicals Warranty, 3 yr Limited Electronics and Solenoid Warranty, 1 yr Limited Finish Warranty
Connection Size
3/8" Compression
Spout Length
4 7/8 in
Max. Installation Surface Thickness
1 1/2 in
Water Inlet Connection Size
3/8 in
Spout Height
9 1/2 in
Hose Length
16"
Overall Width
2 1/2 in
Spout Height - Maximum
9 1/2 in
For Mounting Hole Diameter - Minimum
1 1/8 in
For Surface Thickness - Maximum
1 1/2 in
Spout Outlet Height
7 1/4 in
For Mounting Hole Diameter - Maximum
1 1/2 in
Inlet Connection Size
3/8 in

Details

Application
Commercial
Finish
Polished Chrome
Item
Bathroom Sensor Faucet
Flow Outlet Type
Nonaerated
Faucet Operation
Sensor
Battery Charger CEC Compliant
CEC Compliant
Mounting Type - Faucet
Deck
Flow Rate
1.5 gpm
Faucet Handle Type
None
Mounting Type
Deck
Drain Type
None
Amps
0.2 A
ADA Compliant
Yes
Green Environmental Attribute
Faucet Flow Rate 1.5 gpm Or Less
Standards
ADA ANSI/ICC A117.1, ASME A112.18.1/CSA B125.1, NSF/ANSI/CAN 61: Q Less Than or Equal To 1
Temp. Control
Yes
Flow Outlet Type - Faucet
Laminar
Faucet Spout Shape
Mid Arc
Body Material
Cast Brass
Mounting Hole Center to Center
Single Hole
CEC Compliant
CEC Compliant
Ligature Resistant
No
Sensor Range
3 in to 13 in
Sensor Lead
Infrared
Compliance
ASME A112.18.1/CSA B125.1, California Health and Safety Code 116875, Vermont Bill, NSF/ANSI 372 Low Lead Content Certified to NSF/ANSI 61
Commercial / Residential
Commercial
Connection
1-1/16"
Faucet Finish
Chrome
Green Certification or Other Recognition
WaterSense Certified
Series
HyTronic Curve
Voltage
6V DC
Residential / Commercial
Commercial
Flow Outlet Type (Faucet)
Laminar
Power Source
Battery
Replacement Cartridge
Mfr. No. 240.744.AB.1
ADA Compliance
ADA Compliant
Number of Holes
1
Includes
Mounting Hardware
Number of Handles
0
Faucet Type
Bathroom Sink Faucet
Vandal Resistant Features
Vandal Resistant Outlet
Features
Bluetooth Compatible
Type
Hands Free
Valve Type - Faucets
Solenoid Valve
Replacement Cartridge Mfr. Model Number
243.152.AB.1
Faucet Body Material
Cast Brass
Temperature Control
Adjustable Temperature
Water Inlet Connection Type
Push in Compression
Max. Mounting Hole Center Distance
Single Hole
Faucet Activation
Motion Sensor
Spout Reach
4 7/8 in
Battery Type
CRP2
Material of Construction
Brass
Sensor Type
Adjustable
Outlet Type
Laminar
Sensor Range - Minimum
3 in
Inlet Connection Type
Compression
For Location
Bathroom
Compatible Cartridge Manufacturer Part Number
243.152.AB.1
Temperature Control Method
Mixing Valve Not Included
Includes Handle
Handle Not Included
Ligature Resistance
Not Ligature-Resistant
Flow Type
Laminar
Operation Method
Motion Sensor
Time Out
40 sec
Number of Mounting Holes
1
Sensor Range - Maximum
13 in
Includes Drain
Drain Not Included
Spout Style
Fixed
CEC Compliance
CEC Compliant
Flow Rate - Maximum
1.5 gpm
Vandal Resistance
Vandal-Resistant Outlet
Temperature - Minimum
40 Degrees F
Warranty
1 yr Limited Finish Warranty, 3 yr Limited Electronics and Solenoid Warranty, 5 yr Limited Mechanical Warranty, Lifetime Warranty Metal Cast, Forged, Stamped of Formed Portion
Water Supply Type
Hot and Cold Lines
Includes Batteries
Batteries Included
Temperature - Maximum
140 Degrees F
Includes Transformer
Transformer Not Included
Product Type
Sensor Faucet
Spout Shape
Arc
Pressure - Maximum
125 psi

Description

Bathroom Faucet, Faucet Operation Sensor, Handle Type Sensor, 1.5 gpm Flow Rate, Number of Holes 1, ADA Compliant Yes, Drain Type Without Drain, Mounting Type Deck, Power Source Battery, Voltage 6V, 0.2 Amps, Spout Length 4-7/8 In., Sensor Range 3 In. to 12 In., Finish Chrome Plated, Flow Outlet Type Nonaerated, Replacement Cartridge Mfr. No. 240.744.AB.1, Sensor Lead Infrared, Includes 6V Lithium CRP2 Battery, Stainless Steel Hoses, Manufacturers Warranty Length Lifetime Limited
