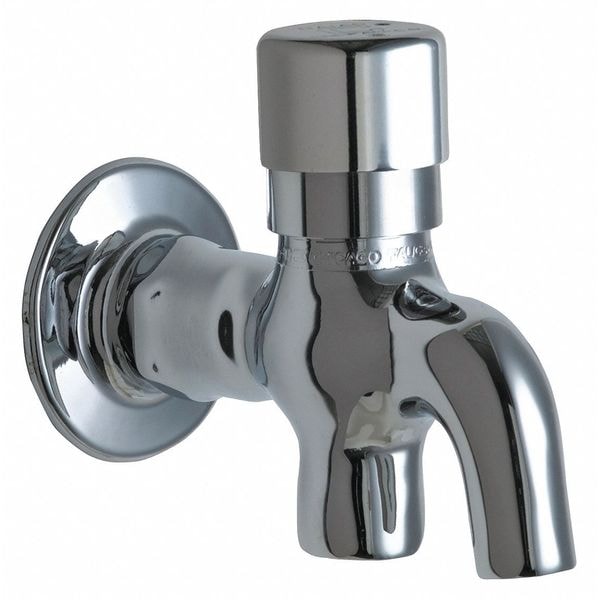

Chicago Faucet Glass Filler 324-ABCP - main

Glass Filler

  • Mfr # 324-ABCP

  • Zoro # G1128815

product price: $144.99
/ea
Free Shipping & Returns

Key Features

Finish
Polished Chrome
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, NSF/ANSI/CAN 372 Low Lead Content, NSF/ANSI/CAN 61: Q Less Than or Equal To 1
Includes
Mounting Hardware
Handle Type
Metering Knob
Valve Type
Metering
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
324-ABCP
Zoro #
G1128815
UPC #
611943571191
Country of Origin
United States

Dimensions

Overall Height
3 3/4 in
Overall Depth
4 in
Spout Outlet Height
1 1/2 in
Overall Width
2 1/4 in
Spout Height - Maximum
3 3/4 in
For Mounting Hole Diameter - Minimum
1 1/8 in
For Mounting Hole Diameter - Maximum
1 3/8 in

Details

Finish
Polished Chrome
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, NSF/ANSI/CAN 372 Low Lead Content, NSF/ANSI/CAN 61: Q Less Than or Equal To 1
Includes
Mounting Hardware
Item
Glass Filler
Handle Type
Metering Knob
Valve Type
Metering
Handle Material
Cast Brass
ADA Compliance
ADA Compliant
Application
Commercial
Body Material
Brass
Power Source
Manual
Series
324
Temperature - Minimum
40 Degrees F
Product Type
Faucet
Inlet Connection Type
NPT
Warranty
Lifetime Limited
Temperature - Maximum
140 Degrees F
Number of Mounting Holes
1
Inlet Connection Gender
Female
Spout Reach
4 in
Pressure - Maximum
125 psi
Time Out
25 sec
Vandal Resistance
Vandal-Resistant Handle
Includes Drain
Drain Included
Temperature Control
Non-Adjustable Temperature
Operation Method
Manual
Flow Type
Laminar
Ligature Resistance
Not Ligature-Resistant
CEC Compliance
Not CEC Compliant
Water Supply Type
Single Tempered Line
Flow Rate - Maximum
1.6 gpm
Spout Shape
Arc
Spout Style
Fixed

Description

Item Glass Filler

Restrictions
