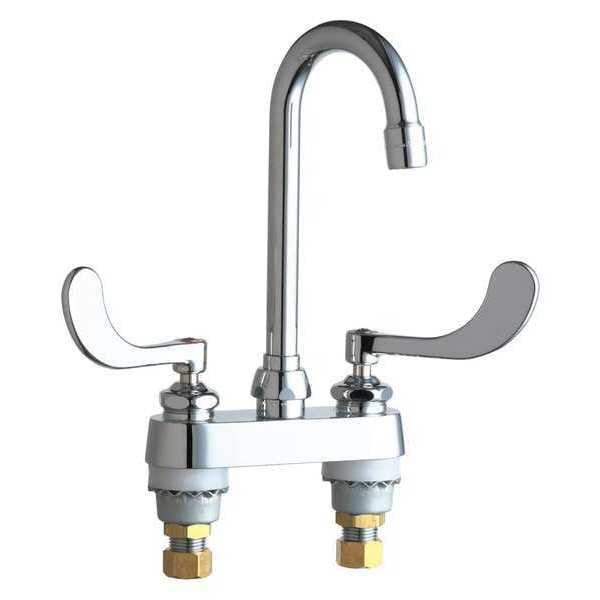

Chicago Faucet Gooseneck Bar Faucet, Manual, 4" Mount, 2 Hole 895-317E35ABCP - main

Gooseneck Bar Faucet, Manual, 4" Mount, 2 Hole

  • Mfr # 895-317E35ABCP

  • Zoro # G4242281

product price:  $233.99
/ea
Free Shipping & Returns

Key Features

Mounting Hole Center to Center
4"
Number of Holes
2
Number of Handles
2
Flow Rate
1.50 gpm
Finish
Polished Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
895-317E35ABCP
Zoro #
G4242281
UPC #
611943488130
Country of Origin
United States

Dimensions

Height
9-5/8"
Overall Height
9-5/8"
Manufacturers Warranty Length
Lifetime Warranty Metal Cast, Forged, Stamped of Formed Portion, 1 yr. Limited Finish warranty, 5 yr. Limited Cartridge Warranty
Spout Length
3-1/2"
Spout Height
9-5/8"
Water Inlet Connection Size
1/2"
Max. Installation Surface Thickness
1-1/2"
Overall Width
6 in
Spout Outlet Height
6 3/4 in
For Surface Thickness - Maximum
1 1/2 in
Spout Height - Maximum
9 5/8 in
For Mounting Hole Diameter - Maximum
1 3/8 in
For Mounting Hole Diameter - Minimum
1 1/8 in

Details

Item
Gooseneck Bar Faucet
Mounting Hole Center to Center
4"
Number of Holes
2
Number of Handles
2
Flow Rate
1.50 gpm
Finish
Polished Chrome
ADA Compliant
Yes
Mounting
Deck
Body Material
Brass
Series
895
Faucet Spout
Rigid/Swing
Flow Outlet Type - Faucet
Aerated
Compliance
California Health and Safety Code 116875 (AB 1953-2006), Vermont Bill S.152, Louisiana Low Lead Law HB.471
Faucet Type
Bar Faucet
ADA Compliance
Yes
Mounting Type - Faucet
Deck
Faucet Spout Shape
Gooseneck
Vandal Resistant Features
Vandal Resistant Handles
Valve Type
Compression
Standards
ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9 By CSA, ADA ANSI/ICC A117.1, NSF/ANSI 372 Low Lead Content
Faucet Operation
Manual
Handle Type
Wristblade Handle
Connection
1/2" MNPS
Includes
Mounting hardware
Faucet Finish
Chrome
Flow Outlet Type (Faucet)
Aerated
Faucet Handle Type
Blade
Replacement Cartridge
5UTV6 or 5UTV5
Flow Outlet Type
Pressure Compensating Aerated
Residential / Commercial
Commercial
Green Certification or Other Recognition
California Energy Commission (CEC) Certified
Handle Material
Cast Brass
Features
Mounting Hardware Included
Power Source
Manual
Faucet Handle Material
Metal
Water Inlet Connection Type
Male NPSM
Valve Type - Faucets
Hot/Cold Cartridge
Faucet Activation
Manual
Max. Mounting Hole Center Distance
4"
Spout Reach
3-1/2"
Ligature Resistant
No
Faucet Body Material
Cast Brass
CEC Compliant
CEC Compliant
Temperature Control
No
Replacement Cartridge Mfr. Model Number
1-100XTJKABNF, 1-099XTJKABNF
Mounting Type
Deck Mount
Application
Commercial
Temperature - Maximum
140 Degrees F
Flow Rate - Maximum
1.5 gpm
Product Type
Faucet
Inlet Connection Gender
Male
Operation Method
Manual
Pressure - Maximum
125 psi
Ligature Resistance
Not Ligature-Resistant
Vandal Resistance
Vandal-Resistant Handle
Compatible Cartridge Manufacturer Part Number
1-099XTJKABNF, 1-100XTJKABNF
Number of Mounting Holes
2
CEC Compliance
CEC Compliant
Flow Type
Spray
Inlet Connection Type
NPSM
For Location
Bar
Warranty
1 yr Limited, 5 yr Limited, Lifetime Limited
Temperature - Minimum
40 Degrees F
Spout Shape
Gooseneck
Mounting Hole Center-to-Center Distance - Minimum
4 in
Mounting Hole Center-to-Center Distance - Maximum
4 in
Legend Style
Color
For Water Temperature
Hot/Cold
Water Supply Type
Hot and Cold Lines
Includes Drain
Drain Not Included
Spout Style
Swivel

Description

Item Gooseneck Bar Faucet

Restrictions
