  6. Gooseneck Kitchen Faucet, Manual, 4" Mount, 2 Hole Commercial

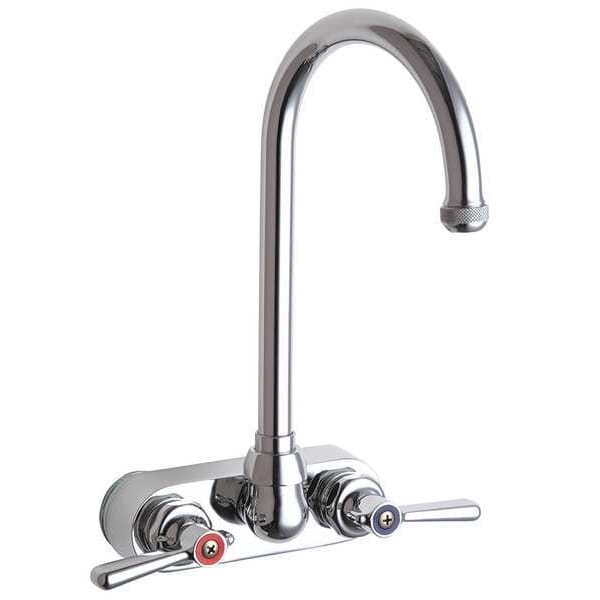

Chicago Faucet Gooseneck Kitchen Faucet, Manual, 4" Mount, 2 Hole Commercial 521-GN2AE1ABCP - main

Gooseneck Kitchen Faucet, Manual, 4" Mount, 2 Hole Commercial

  • Mfr # 521-GN2AE1ABCP

  • Zoro # G5038047

product price:  $368.99
/ea
Free Shipping & Returns

Key Features

Number of Holes
2
Mounting Hole Center to Center
4"
Finish
Polished Chrome
Number of Handles
2
Faucet Operation
Manual
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
521-GN2AE1ABCP
Zoro #
G5038047
UPC #
611943572099
Country of Origin
United States

Dimensions

Height
10"
Manufacturers Warranty Length
Lifetime Warranty Metal Cast, Forged, Stamped of Formed Portion, 1 yr. Limited Finish warranty, 5 yr. Limited Cartridge Warranty
Connection Size
1/2" MNPT
Spout Length
5-1/4"
Overall Height
10 5/8 in
Max. Installation Surface Thickness
5/16"
Water Inlet Connection Size
1/2"
Spout Height
6-3/4"
Overall Width
6 in
Spout Outlet Height
6 3/4 in
For Mounting Hole Diameter - Maximum
1 3/8 in
For Surface Thickness - Maximum
5/16 in
Spout Height - Maximum
10 5/8 in
For Mounting Hole Diameter - Minimum
1 in

Details

Number of Holes
2
Mounting Hole Center to Center
4"
Finish
Polished Chrome
Number of Handles
2
Faucet Operation
Manual
ADA Compliant
Yes
Flow Rate
12.00 gpm
Handle Type
Lever Handle
Mounting Type
Wall Mount
Item
Gooseneck Kitchen Faucet
Compliance
ASME A112.18.1M, CSA B125.1, California Health and Safety Code 116875 (AB 1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content Certified to NSF/ANSI 61, Section 9 by CSA, ADA ANSI/ICC A117.1
Faucet Spout
Rigid/Swing
Mounting
Wall
Faucet Spout Shape
Gooseneck
Connection
1/2" MNPT
Faucet Handle Type
Lever
Faucet Finish
Chrome
Flow Outlet Type - Faucet
Laminar
Flow Outlet Type
Full Flow
ADA Compliance
ADA Compliant
Replacement Cartridge
5UTV6 or 5UTV5
Body Material
Cast Brass
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, NSF/ANSI/CAN 372 Low Lead Content, NSF/ANSI/CAN 61: Q Less Than or Equal To 1
Valve Type
Compression
Mounting Type (Faucet)
Wall
Faucet Type
Kitchen Sink Faucet
Vandal Resistant Features
Vandal Resistant Handles
Flow Outlet Type (Faucet)
Laminar
Mounting Type - Faucet
Wall
Features
Mounting Hardware Included
Type
Two Handle
Includes
Mounting hardware
Power Source
Manual
Handle Material
Cast Brass
Residential / Commercial
Commercial
Series
521
Spout Reach
5 1/4 in
CEC Compliant
Non CEC Compliant
Replacement Cartridge Mfr. Model Number
1-100XTJKABNF, 1-099XTJKABNF
Faucet Body Material
Cast Brass
Faucet Handle Material
Metal
Water Inlet Connection Type
Male NPSM
Max. Mounting Hole Center Distance
4"
Ligature Resistant
No
Temperature Control
Non-Adjustable Temperature
Faucet Activation
Manual
Valve Type - Faucets
Hot/Cold Cartridge
Material of Construction
Brass
Application
Commercial
Outlet Type
Full Flow
For Location
Kitchen
Inlet Connection Gender
Male
Product Type
Faucet
Compatible Cartridge Manufacturer Part Number
1-099XTJKABNF, 1-100XTJKABNF
Vandal Resistance
Vandal-Resistant Handle
Temperature - Maximum
140 Degrees F
Mounting Hole Center-to-Center Distance - Maximum
4 in
Number of Mounting Holes
2
CEC Compliance
Not CEC Compliant
Mounting Hole Center-to-Center Distance - Minimum
4 in
Legend Style
Color
Ligature Resistance
Not Ligature-Resistant
Operation Method
Manual
Flow Rate - Maximum
12 gpm
Temperature - Minimum
40 Degrees F
Pressure - Maximum
125 psi
Flow Type
Laminar
Inlet Connection Type
NPSM
Warranty
1 yr Limited, 5 yr Limited, Lifetime Limited
Spout Shape
Gooseneck
For Water Temperature
Hot/Cold
Includes Drain
Drain Included
Water Supply Type
Hot and Cold Lines
Spout Style
Swivel

Description

Item Gooseneck Kitchen Faucet
