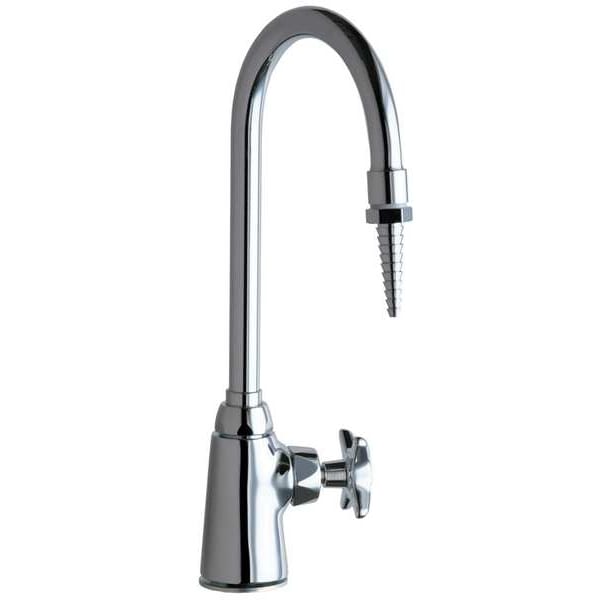

Chicago Faucet Gooseneck Laboratory Faucet, Manual, Single Hole Only Mount, 1 Hole Commercial 969-CTF - main

Gooseneck Laboratory Faucet, Manual, Single Hole Only Mount, 1 Hole Commercial

  • Mfr # 969-CTF

  • Zoro # G5069391

product price:  $323.99
/ea
Free Shipping & Returns

Key Features

Number of Holes
1
Mounting Hole Center to Center
Single Hole Only
Finish
Polished Chrome
Number of Handles
1
Faucet Operation
Manual
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
969-CTF
Zoro #
G5069391
UPC #
611943186159
Country of Origin
United States

Dimensions

Height
13"
Connection Size
1/4" MNPT
Overall Height
13"
Manufacturers Warranty Length
Lifetime Faucet, 5 yr. Cartridge, 1 yr. Finish
Spout Length
5-1/4"
Max. Installation Surface Thickness
1-3/8"
Overall Width
2 in
For Surface Thickness - Maximum
1 3/8 in
Inlet Connection Size
1/4 in
Spout Height - Maximum
13 in
Spout Outlet Height
6 3/8 in
Outlet Diameter
3/8 in
For Mounting Hole Diameter - Maximum
1 1/8 in
Pipe Diameter
1/2 in

Details

Number of Holes
1
Mounting Hole Center to Center
Single Hole Only
Finish
Polished Chrome
Number of Handles
1
Faucet Operation
Manual
ADA Compliant
Yes
Flow Rate
1.00 gpm
Handle Type
Cross Handle
Mounting Type
Deck Mount
Item
Gooseneck Laboratory Faucet
Material
Brass with Tin Lining
Compliance
ASME A112.18.1/CSA B125.1 ADA ANSI/ICC A117.1
Flow Outlet Type (Faucet)
Nozzle
Standards
ANSI A117.1, NSF 372
ADA Compliance
ADA Compliant
Flow Outlet Type - Faucet
Nozzle
Faucet Spout
Rigid/Swing
Mounting Type - Faucet
Deck
Faucet Finish
Chrome
Body Material
Cast Brass
Flow Outlet Type
Full Flow with Barbed Nozzle
Connection
1/4" MNPT
Valve Type
Self-Closing
Handle Material
Metal
Residential / Commercial
Commercial
Includes
Mounting hardware
Max. Mounting Hole Center Distance
Single Hole
Faucet Body Material
Cast Brass
CEC Compliant
Non CEC Compliant
Faucet Handle Material
Metal
Faucet Activation
Manual
Faucet Type
Laboratory Faucet
Vandal Resistant Features
Vandal Resistant Handles
Ligature Resistant
No
Pressure - Maximum
125 psi
Spout Shape
Gooseneck
Temperature - Minimum
40 Degrees F
Outlet Type
Serrated Nozzle
Inlet Connection Gender
Male
Spout Reach
5 1/4 in
CEC Compliance
Not CEC Compliant
For Location
Laboratory
For Media - CHECK
Distilled Water
Ligature Resistance
Not Ligature-Resistant
Inlet Connection Type
NPT
Product Type
Faucet
Number of Mounting Holes
1
Flow Rate - Maximum
5 gpm
Temperature - Maximum
140 Degrees F
Vandal Resistance
Vandal-Resistant Handle
Operation Method
Manual
Warranty
Lifetime Faucet, 5 yr Cartridge, 1 yr Finish
Index Color
White
Legend Style
Text
Flow Pattern
Inline
Application
Commercial
Compatible Cartridge Manufacturer Part Number
217-XTLHJKTPF
Number of Outlets
1
Spout Style
Fixed

Description

Item Laboratory Faucet

Restrictions
