  9. Low Arc Sill Faucet, Single Hole Mount, Polished Chrome 1 Hole

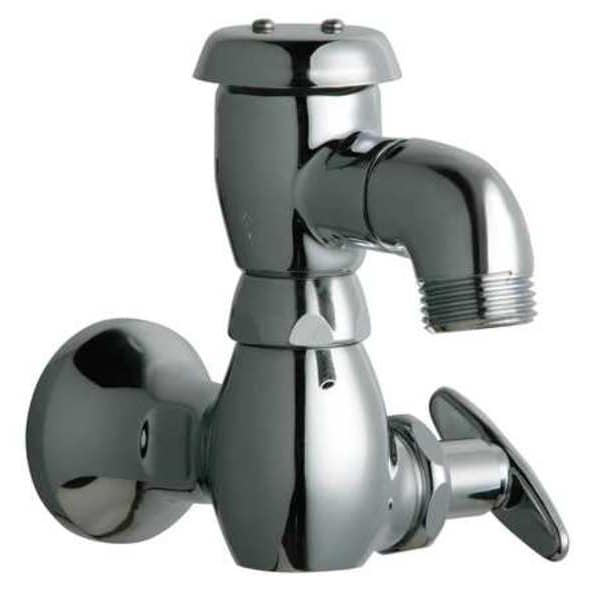

Chicago Faucet Low Arc Sill Faucet, Single Hole Mount, Polished Chrome 1 Hole 952-CP - main

Low Arc Sill Faucet, Single Hole Mount, Polished Chrome 1 Hole

  • Mfr # 952-CP

  • Zoro # G1406474

product price: $219.99
/ea
Free Shipping & Returns

Key Features

Mounting Hole Center to Center
Single Hole
Number of Holes
1
Mounting Type
Wall
ADA Compliant
No
Finish
Polished Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
952-CP
Zoro #
G1406474
UPC #
611943183257
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
Lifetime Limited Faucet Warranty, 5 yr Limited Cartridge Warranty, 1 yr Limited Finish Warranty
Connection Size
3/4" (F)NPT
Spout Length
2 3/8 in
Spout Height
4 in
Water Inlet Connection Size
3/4 in
Overall Height
4 3/8 in
Overall Width
2 1/8 in
Inlet Connection Size
3/4 in
Spout Height - Maximum
4 in
Overall Depth
5 in
For Mounting Hole Diameter - Minimum
1 1/8 in
For Mounting Hole Diameter - Maximum
1 3/8 in

Details

Mounting Hole Center to Center
Single Hole
Number of Holes
1
Mounting Type
Wall
ADA Compliant
No
Finish
Polished Chrome
Handle Type
Wristblade
Flow Rate
7 gpm
Faucet Spout Shape
Straight
Handle Material
Cast Brass
Number of Handles
1
Body Material
Cast Brass
Item
Low Arc Sill Faucet
Flow Outlet Type (Faucet)
Laminar
Replacement Cartridge
5UTV9
Flow Outlet Type - Faucet
Laminar
Connection
3/4" FNPT
Faucet Finish
Chrome
Valve Type
Compression
Faucet Handle Type
Blade
Material
Cast Brass
Faucet Spout
Rigid
Includes
3/4 in Hose Outlet
Mounting Type (Faucet)
Wall
Mounting Type - Faucet
Wall
Features
Removable Handle
Faucet Handle Material
Metal
Faucet Activation
Manual
Vandal Resistant Features
Vandal Resistant Handles
Temperature Control
Non-Adjustable Temperature
Valve Type - Faucets
Cold Cartridge
Faucet Body Material
Cast Brass
Max. Mounting Hole Center Distance
Single Hole
Faucet Type
Inside Sill Faucet
CEC Compliant
Non CEC Compliant
Ligature Resistant
No
Water Inlet Connection Type
Female NPT
Replacement Cartridge Mfr. Model Number
217-XTLHJKABNF
Standards
ASME A112.18.1/CSA B125.1, ASSE 1001 Compliant, BAA Compliant
Spout Reach
5 in
ADA Compliance
Not ADA Compliant
Application
Commercial
Material of Construction
Cast Brass
Power Source
Manual
Series
293
Temperature - Maximum
140 Degrees F
Flow Type
Laminar
Operation Method
Manual
Warranty
1 yr Limited, 5 yr Limited, Lifetime Limited
CEC Compliance
Not CEC Compliant
Flow Rate - Maximum
7 gpm
Number of Mounting Holes
1
Ligature Resistance
Not Ligature-Resistant
Pressure - Maximum
125 psi
Compatible Cartridge Manufacturer Part Number
217-XTLHJKABNF
Inlet Connection Type
NPT
Spout Shape
Straight
Inlet Connection Gender
Female
Vandal Resistance
Vandal-Resistant Handle
Temperature - Minimum
40 Degrees F
For Water Temperature
Cold
Product Type
Faucet
Water Supply Type
Single Tempered Line
Includes Drain
Drain Not Included
Spout Style
Fixed

Description

Item Low Arc Sill Faucet

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
