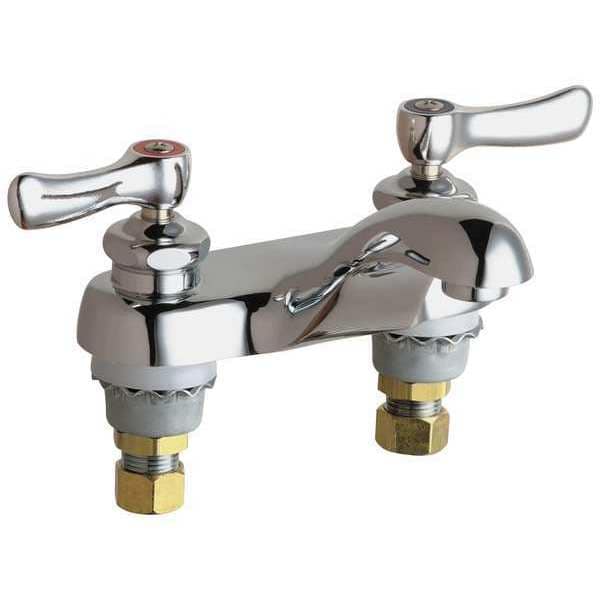

Chicago Faucet Manual Low Arc Bathroom Faucet, 4" Mount, Polished Chrome 2 Hole 802-ABCP - main

Manual Low Arc Bathroom Faucet, 4" Mount, Polished Chrome 2 Hole

  • Mfr # 802-ABCP

  • Zoro # G2209864

product price:  $177.99
/ea
Free Shipping & Returns

Key Features

Finish
Polished Chrome
Mounting Type
Deck Mount
Faucet Type
Bathroom Sink Faucet
Handle Type
Lever
Number of Handles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
802-ABCP
Zoro #
G2209864
UPC #
611943449582
Country of Origin
United States

Dimensions

Height
2-3/4 in
Spout Length
4 in
Overall Height
5 in
Spout Height
2 3/4 in
Overall Width
6 in
For Mounting Hole Diameter - Maximum
1 3/8 in
Spout Height - Maximum
2 3/4 in
Spout Outlet Height
1 5/8 in
For Mounting Hole Diameter - Minimum
1 1/8 in
For Surface Thickness - Maximum
1 1/2 in

Details

Finish
Polished Chrome
Mounting Type
Deck Mount
Faucet Type
Bathroom Sink Faucet
Handle Type
Lever
Number of Handles
2
ADA Compliant
Yes
Series
802
Spout Shape
Arc
Spout Reach
4 in
Number of Mounting Holes
2
Flow Rate - Maximum
2.2 gpm
Mounting Hole Center to Center
4"
Body Material
Cast Brass
Item
Low Arc Bathroom Faucet
Faucet Spout
Rigid
Battery Charger CEC Compliant
Non CEC Compliant
Replacement Cartridge
5UTV6 or 5UTV5
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, NSF/ANSI/CAN 372 Low Lead Content, NSF/ANSI/CAN 61: Q Less Than or Equal To 1
Temp. Control
Yes
ADA Compliance
ADA Compliant
Connection
1/2 in MNPS
Includes
Mounting Hardware
Valve Type
Compression
Power Source
Manual
Features
Mounting Hardware Included
Handle Material
Cast Brass
Type
Manual
Valve Type - Faucets
Hot/Cold Cartridge
Temperature Control
Non-Adjustable Temperature
Water Inlet Connection Type
Male NPSM
Max. Mounting Hole Center Distance
4 in
Application
Commercial
Outlet Type
Aerator
Warranty
1 yr Limited, 5 yr Limited, Lifetime Limited
Compatible Cartridge Manufacturer Part Number
1-099XTJKABNF, 1-100XTJKABNF
Pressure - Maximum
125 psi
Flow Type
Spray
Temperature - Maximum
140 Degrees F
Temperature - Minimum
40 Degrees F
Mounting Hole Center-to-Center Distance - Maximum
4 in
Ligature Resistance
Not Ligature-Resistant
Operation Method
Manual
Legend Style
Color
Product Type
Faucet
Inlet Connection Gender
Male
For Location
Bathroom
Inlet Connection Type
NPSM
CEC Compliance
Not CEC Compliant
Vandal Resistance
Vandal-Resistant Handle
Mounting Hole Center-to-Center Distance - Minimum
4 in
For Water Temperature
Hot/Cold
Includes Drain
Drain Not Included
Water Supply Type
Hot and Cold Lines
Spout Style
Fixed
Installation Type
Deck

Description

Item Low Arc Bathroom Faucet

Restrictions

This item has been restricted from sale in the following states: CA, NJ
