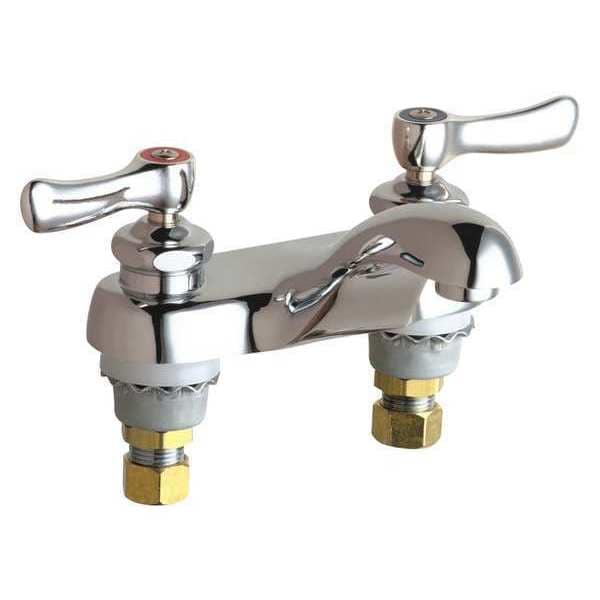

Chicago Faucet Manual Low Arc Bathroom Faucet, 4" Mount, Polished Chrome 2 Hole 802-E70ABCP - main

Manual Low Arc Bathroom Faucet, 4" Mount, Polished Chrome 2 Hole

  • Mfr # 802-E70ABCP

  • Zoro # G4242415

product price:  $208.99
/ea
Free Shipping & Returns

Key Features

Finish
Polished Chrome
Mounting Type
Deck
Faucet Type
Bathroom Sink Faucet
Handle Type
Lever
Number of Handles
2
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
802-E70ABCP
Zoro #
G4242415
UPC #
611943114442
Country of Origin
United States

Dimensions

Overall Height
5 1/8 in
Height
5 in
Spout Length
4 in
Spout Height
2 3/4 in
Overall Length
6"
Overall Width
6 in
Bowl Depth
8 in
For Mounting Hole Diameter - Minimum
1 1/8 in
Spout Height - Maximum
2 3/4 in
Spout Outlet Height
1 5/8 in
For Mounting Hole Diameter - Maximum
1 3/8 in
For Surface Thickness - Maximum
1 1/2 in

Details

Finish
Polished Chrome
Mounting Type
Deck
Faucet Type
Bathroom Sink Faucet
Handle Type
Lever
Number of Handles
2
ADA Compliant
Yes
Series
802
Spout Shape
Arc
Spout Reach
4 in
Number of Mounting Holes
2
Flow Rate - Maximum
0.5 gpm
Mounting Hole Center to Center
4"
Body Material
Cast Brass
Item
Low Arc Bathroom Faucet
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, NSF 372, NSF 61/9
ADA Compliance
ADA Compliant
Includes
Mounting Hardware
Battery Charger CEC Compliant
CEC Compliant
Green Certification or Other Recognition
California Energy Commission (CEC) Certified
Power Source
Manual
Handle Material
Cast Brass
Features
Mounting Hardware Included
Valve Type
Compression
Water Inlet Connection Type
Male NPSM
Max. Mounting Hole Center Distance
4 in
Valve Type - Faucets
Hot/Cold Cartridge
Temperature Control
Non-Adjustable Temperature
Color
Silver
Application
Commercial
Back Splash
No
Side Splash
No
Faucet Mounting Centers
4 in
Number of Stations
0
With Faucet / Without Faucet
With Faucet
Warranty
1 yr Limited, 5 yr Limited, Lifetime Limited
Inlet Connection Type
NPSM
Mounting Hole Center-to-Center Distance - Minimum
4 in
CEC Compliance
CEC Compliant
Product Type
Faucet
Vandal Resistance
Vandal-Resistant Handle
Legend Style
Color
Pressure - Maximum
125 psi
Temperature - Maximum
140 Degrees F
For Location
Bathroom
Compatible Cartridge Manufacturer Part Number
1-099XTJKABNF, 1-100XTJKABNF
Ligature Resistance
Not Ligature-Resistant
Temperature - Minimum
40 Degrees F
Mounting Hole Center-to-Center Distance - Maximum
4 in
Operation Method
Manual
Flow Type
Laminar
Inlet Connection Gender
Male
For Water Temperature
Hot/Cold
Spout Style
Fixed
Water Supply Type
Hot and Cold Lines
Includes Drain
Drain Not Included
Installation Type
Deck

Description

Item Low Arc Bathroom Faucet

Restrictions
