Shop CHICAGO FAUCET

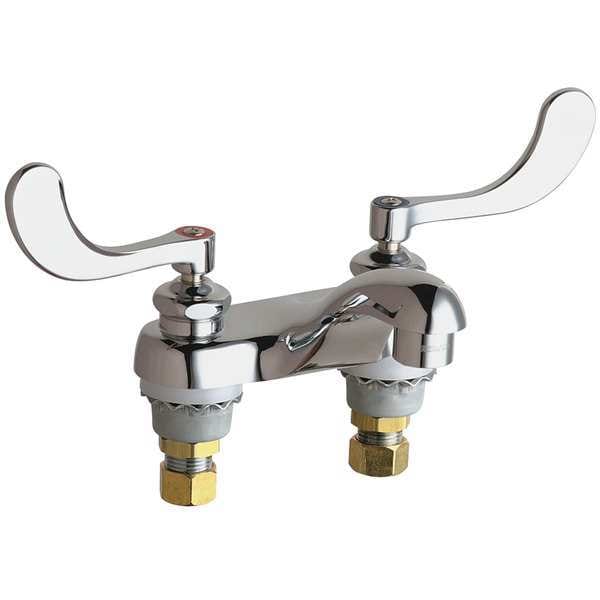

Manual Low Arc Bathroom Faucet, 4" Mount, Polished Chrome 2 Hole

  • Mfr # 802-V317ABCP

  • Zoro # G4976307

product price:
$
236.99
/ea
Free Shipping & Returns

Key Features

Finish
Polished Chrome
Mounting Type
Deck
Faucet Type
Bathroom Sink Faucet
Handle Type
Wristblade
Number of Handles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
802-V317ABCP
Zoro #
G4976307
UPC #
611943449599
Country of Origin
United States

Dimensions

Height
4-1/4 in
Spout Length
4 in
Overall Height
6 5/8 in
Spout Height
2 3/4 in
Overall Width
6 in
Spout Height - Maximum
2 3/4 in
For Mounting Hole Diameter - Minimum
1 1/8 in
Spout Outlet Height
1 5/8 in
For Mounting Hole Diameter - Maximum
1 3/8 in
For Surface Thickness - Maximum
1 1/2 in

Details

Finish
Polished Chrome
Mounting Type
Deck
Faucet Type
Bathroom Sink Faucet
Handle Type
Wristblade
Number of Handles
2
ADA Compliant
Yes
Series
802
Spout Shape
Arc
Spout Reach
4 in
Flow Rate - Maximum
2.2 gpm
Number of Mounting Holes
2
Mounting Hole Center to Center
4"
Body Material
Cast Brass
Item
Low Arc Bathroom Faucet
ADA Compliance
ADA Compliant
Includes
Mounting Hardware
Valve Type
Compression
Temp. Control
Yes
Connection
1/2 in MNPS
Replacement Cartridge
5UTV6 or 5UTV5
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, NSF/ANSI/CAN 372 Low Lead Content, NSF/ANSI/CAN 61: Q Less Than or Equal To 1
Battery Charger CEC Compliant
Non CEC Compliant
Faucet Spout
Rigid
Power Source
Manual
Features
Mounting Hardware Included
Type
Two Handle
Handle Material
Cast Brass
Temperature Control
Non-Adjustable Temperature
Valve Type - Faucets
Hot/Cold Cartridge
Max. Mounting Hole Center Distance
4 in
Water Inlet Connection Type
Male NPSM
Application
Commercial
Outlet Type
Aerator
Inlet Connection Type
NPSM
Pressure - Maximum
125 psi
Warranty
1 yr Limited, 5 yr Limited, Lifetime Limited
Inlet Connection Gender
Male
Product Type
Faucet
Legend Style
Color
Ligature Resistance
Not Ligature-Resistant
Operation Method
Manual
Mounting Hole Center-to-Center Distance - Maximum
4 in
Vandal Resistance
Vandal-Resistant Handle, Vandal-Resistant Outlet
For Location
Bathroom
Temperature - Minimum
40 Degrees F
Temperature - Maximum
140 Degrees F
Compatible Cartridge Manufacturer Part Number
1-099XTJKABNF, 1-100XTJKABNF
Mounting Hole Center-to-Center Distance - Minimum
4 in
Flow Type
Spray
CEC Compliance
Not CEC Compliant
Spout Style
Fixed
For Water Temperature
Hot/Cold
Water Supply Type
Hot and Cold Lines
Includes Drain
Drain Included
Installation Type
Deck
Power Source - TS Only
Manual
Power Source - old
Manual

Description

Item Low Arc Bathroom Faucet

Restrictions

This item has been restricted from sale in the following states: NJ
