  11. Manual Low Arc Bathroom Faucet, 4" Mount, Polished Chrome 2 Hole

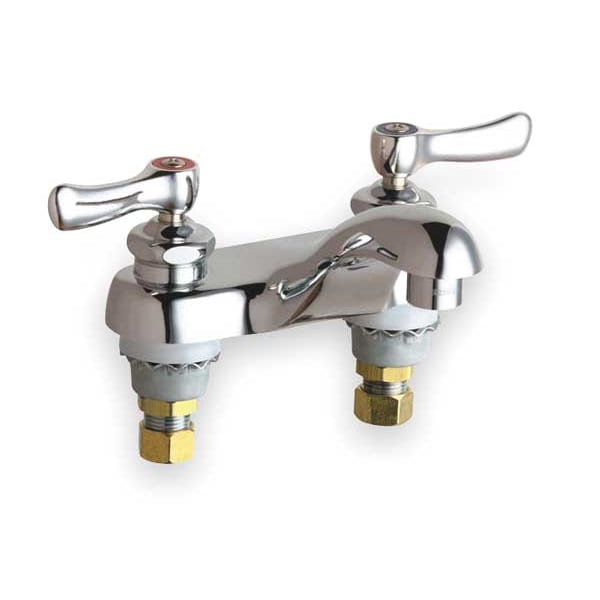

Chicago Faucet Manual Low Arc Bathroom Faucet, 4" Mount, Polished Chrome 2 Hole 802-VABCP - main

Manual Low Arc Bathroom Faucet, 4" Mount, Polished Chrome 2 Hole

  • Mfr # 802-VABCP

  • Zoro # G3146534

product price: $196.99
/ea
Free Shipping & Returns

Key Features

Mounting Hole Center to Center
4"
Mounting Type
Deck Mount
Finish
Chrome
Handle Type
Lever
Handle Material
Cast Brass
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
802-VABCP
Zoro #
G3146534
UPC #
611943449612
Country of Origin
United States

Dimensions

Height
2-3/4 in
Spout Length
4 in
Overall Height
5 1/8 in
Spout Height
2 3/4 in
Overall Width
6 in
For Surface Thickness - Maximum
1 1/2 in
Spout Height - Maximum
2 3/4 in
Spout Outlet Height
1 1/4 in
Inlet Connection Size
1/2 in
For Mounting Hole Diameter - Minimum
1 1/8 in
For Mounting Hole Diameter - Maximum
1 3/8 in

Details

Mounting Hole Center to Center
4"
Mounting Type
Deck Mount
Finish
Chrome
Handle Type
Lever
Handle Material
Cast Brass
Number of Handles
2
Body Material
Cast Brass
Item
Low Arc Bathroom Faucet
Connection
1/2 in MNPS
Temp. Control
Yes
Battery Charger CEC Compliant
Non CEC Compliant
Valve Type
Compression
Includes
Mounting Hardware
Faucet Type
Bathroom Sink Faucet
Faucet Spout
Rigid
ADA Compliance
ADA Compliant
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, NSF/ANSI/CAN 372 Low Lead Content, NSF/ANSI/CAN 61
Power Source
Manual
Features
Mounting Hardware Included
Type
Two Turn Non-Metering
Temperature Control
Non-Adjustable Temperature
Spout Reach
4 in
Series
802
Water Inlet Connection Type
Male NPSM
Valve Type - Faucets
Hot/Cold Cartridge
Max. Mounting Hole Center Distance
4 in
Application
Commercial
Outlet Type
Aerator
Compatible Cartridge Manufacturer Part Number
1-099XTJKABNF, 1-100XTJKABNF
Temperature - Maximum
140 Degrees F
Temperature - Minimum
40 Degrees F
For Location
Bathroom
Inlet Connection Gender
Male
Operation Method
Manual
Number of Mounting Holes
2
Vandal Resistance
Vandal-Resistant Handle, Vandal-Resistant Outlet
Pressure - Maximum
125 psi
Flow Rate - Maximum
2.2 gpm
Legend Style
Color
Ligature Resistance
No
Flow Type
Aerated
Inlet Connection Type
NPSM
Mounting Hole Center-to-Center Distance - Minimum
4 in
Spout Shape
Arc
CEC Compliance
Not CEC Compliant
Mounting Hole Center-to-Center Distance - Maximum
4 in
For Water Temperature
Hot/Cold
Spout Style
Fixed
Includes Drain
Drain Not Included
Water Supply Type
Hot and Cold Lines
Installation Type
Deck

Description

Item Low Arc Bathroom Faucet

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This item has been restricted from sale in the following states: NJ
