  11. Manual Low Arc Bathroom Faucet, 4" Mount, Polished Chrome 2 Hole

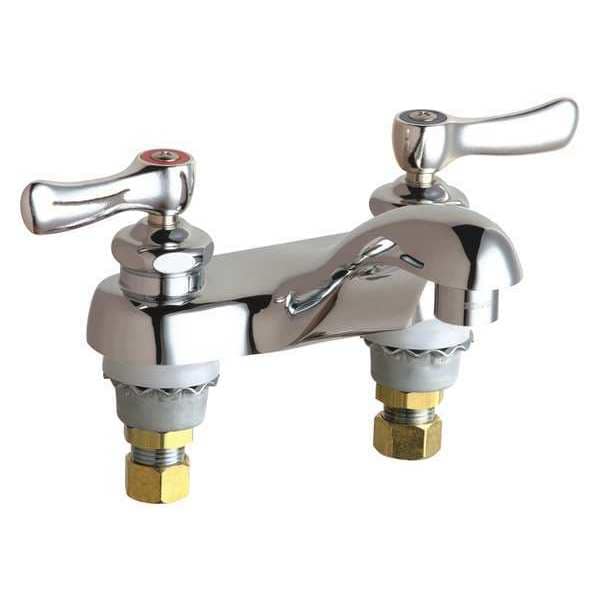

Chicago Faucet Manual Low Arc Bathroom Faucet, 4" Mount, Polished Chrome 2 Hole 802-VE64ABCP - main

Manual Low Arc Bathroom Faucet, 4" Mount, Polished Chrome 2 Hole

  • Mfr # 802-VE64ABCP

  • Zoro # G4242360

product price: $210.89
/ea
Free Shipping & Returns

Key Features

Mounting Hole Center to Center
4"
Mounting Type
Deck
Finish
Chrome
Handle Type
Lever
Handle Material
Cast Brass
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
802-VE64ABCP
Zoro #
G4242360
UPC #
611943112998
Country of Origin
United States

Dimensions

Height
5 in
Overall Height
5 1/8 in
Spout Length
4 in
Spout Height
2 3/4 in
Overall Length
6 in
Overall Width
6 in
Bowl Depth
8 in
For Mounting Hole Diameter - Minimum
1 1/8 in
For Surface Thickness - Maximum
1 1/2 in
For Mounting Hole Diameter - Maximum
1 3/8 in
Inlet Connection Size
1/2 in
Spout Outlet Height
1 5/8 in
Spout Height - Maximum
2 3/4 in

Details

Mounting Hole Center to Center
4"
Mounting Type
Deck
Finish
Chrome
Handle Type
Lever
Handle Material
Cast Brass
Number of Handles
2
Body Material
Cast Brass
Item
Low Arc Bathroom Faucet
Battery Charger CEC Compliant
CEC Compliant
Includes
Mounting Hardware
Green Certification or Other Recognition
WaterSense Certified
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, Certified to WaterSense by ICC-ES, NSF/ANSI/CAN 372 Low Lead Content, NSF/ANSI/CAN 61
ADA Compliance
ADA Compliant
Faucet Type
Bathroom Sink Faucet
Power Source
Manual
Features
Mounting Hardware Included
Valve Type
Compression
Valve Type - Faucets
Hot/Cold Cartridge
Max. Mounting Hole Center Distance
4 in
Temperature Control
Non-Adjustable Temperature
Series
802
Water Inlet Connection Type
Male NPSM
Spout Reach
4 in
Color
Silver
Application
Commercial
With Faucet / Without Faucet
With Faucet
Side Splash
No
Back Splash
No
Faucet Mounting Centers
4 in
Number of Stations
0
Vandal Resistance
Vandal-Resistant Handle, Vandal-Resistant Outlet
Flow Rate - Maximum
1 gpm
Legend Style
Color
Mounting Hole Center-to-Center Distance - Maximum
4 in
Operation Method
Manual
For Location
Bathroom
Temperature - Minimum
40 Degrees F
Ligature Resistance
No
Mounting Hole Center-to-Center Distance - Minimum
4 in
Flow Type
Laminar
Number of Mounting Holes
2
Pressure - Maximum
125 psi
CEC Compliance
CEC Compliant
Inlet Connection Gender
Male
Temperature - Maximum
140 Degrees F
Spout Shape
Arc
Inlet Connection Type
NPSM
Compatible Cartridge Manufacturer Part Number
1-099XTJKABNF, 1-100XTJKABNF
For Water Temperature
Hot/Cold
Includes Drain
Drain Not Included
Spout Style
Fixed
Water Supply Type
Hot and Cold Lines
Installation Type
Deck

Description

Item Low Arc Bathroom Faucet
