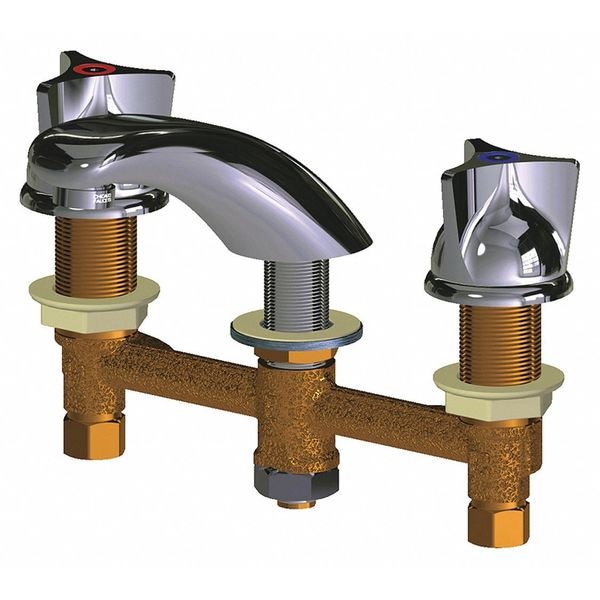

Chicago Faucet Manual Low Arc Bathroom Faucet, 8" Mount, Polished Chrome 3 Hole 404-V950E64ABCP - main

Manual Low Arc Bathroom Faucet, 8" Mount, Polished Chrome 3 Hole

  • Mfr # 404-V950E64ABCP

  • Zoro # G4242625

product price:  $345.99
/ea
Free Shipping & Returns

Key Features

Finish
Polished Chrome
Mounting Type
Deck
Faucet Type
Bathroom Sink Faucet
Handle Type
3-Wing Canopy
Number of Handles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
404-V950E64ABCP
Zoro #
G4242625
UPC #
611943111908
Country of Origin
United States

Dimensions

Overall Height
6 1/4 in
Height
3-1/2 in
Spout Length
5 in
Spout Height
2 7/8 in
Overall Length
14-3/4"
Bowl Depth
8 in
For Surface Thickness - Maximum
1 3/8 in
For Mounting Hole Diameter - Minimum
1 3/8 in
Spout Outlet Height
1 3/4 in
For Mounting Hole Diameter - Maximum
1 1/2 in
Spout Height - Maximum
2 7/8 in

Details

Finish
Polished Chrome
Mounting Type
Deck
Faucet Type
Bathroom Sink Faucet
Handle Type
3-Wing Canopy
Number of Handles
2
ADA Compliant
Yes
Series
404
Spout Shape
Arc
Spout Reach
5 in
Flow Rate - Maximum
1 gpm
Number of Mounting Holes
3
Mounting Hole Center to Center
8"
Body Material
Cast Brass
Item
Low Arc Bathroom Faucet
Includes
Mounting Hardware
ADA Compliance
Not ADA Compliant
Battery Charger CEC Compliant
CEC Compliant
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, Certified to WaterSense by ICC-ES, NSF/ANSI/CAN 372 Low Lead Content, NSF/ANSI/CAN 61: Q Less Than or Equal To 1
Green Certification or Other Recognition
WaterSense Certified
Features
Mounting Hardware Included
Valve Type
Compression
Handle Material
Cast Brass
Power Source
Manual
Max. Mounting Hole Center Distance
8 in
Temperature Control
Non-Adjustable Temperature
Valve Type - Faucets
Hot/Cold Cartridge
Water Inlet Connection Type
Male NPSM
Application
Commercial
Color
Silver
Side Splash
No
Number of Stations
0
With Faucet / Without Faucet
With Faucet
Back Splash
No
Faucet Mounting Centers
8 in
Pressure - Maximum
125 psi
Mounting Hole Center-to-Center Distance - Minimum
8 in
Flow Type
Laminar
Ligature Resistance
Not Ligature-Resistant
Warranty
1 yr Limited, 5 yr Limited, Lifetime Limited
CEC Compliance
Not CEC Compliant
Inlet Connection Type
NPSM
Temperature - Maximum
140 Degrees F
Product Type
Faucet
Temperature - Minimum
40 Degrees F
Mounting Hole Center-to-Center Distance - Maximum
8 in
Operation Method
Manual
Vandal Resistance
Vandal-Resistant Handle, Vandal-Resistant Outlet
Inlet Connection Gender
Male
For Location
Bathroom
Legend Style
Color
Compatible Cartridge Manufacturer Part Number
1-099XTJKABNF, 1-100XTJKABNF
For Water Temperature
Hot/Cold
Spout Style
Fixed
Water Supply Type
Hot and Cold Lines
Includes Drain
Drain Not Included
Installation Type
Deck

Description

Item Low Arc Bathroom Faucet

Restrictions
