  11. Manual Low Arc Bathroom Faucet, Single Hole Mount, Polished Chrome 1 Hole

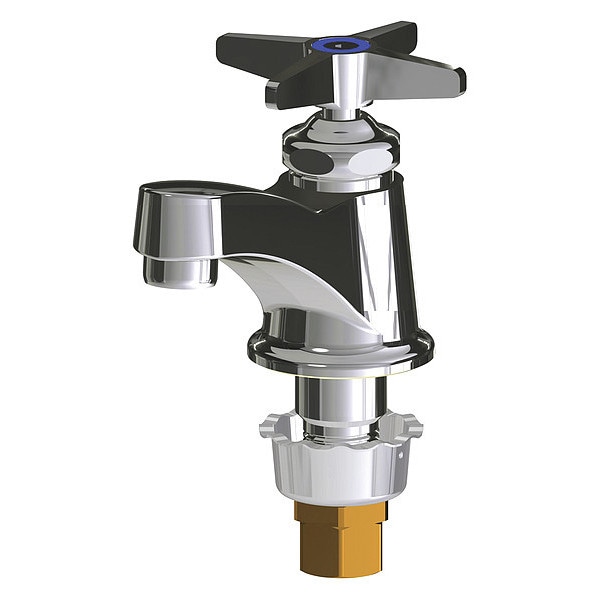

Chicago Faucet Manual Low Arc Bathroom Faucet, Single Hole Mount, Polished Chrome 1 Hole 700-E70COLDABCP - main

Manual Low Arc Bathroom Faucet, Single Hole Mount, Polished Chrome 1 Hole

  • Mfr # 700-E70COLDABCP

  • Zoro # G4242528

product price: $141.99
/ea
Free Shipping & Returns

Key Features

Mounting Hole Center to Center
Single Hole
Mounting Type
Deck
Finish
Chrome
Handle Type
Cross
Handle Material
Cast Brass
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
700-E70COLDABCP
Zoro #
G4242528
UPC #
611943114084
Country of Origin
United States

Dimensions

Height
5 in
Overall Height
5 3/4 in
Spout Length
3 3/8 in
Spout Height
2 5/8 in
Overall Length
6 in
Overall Width
2 in
Bowl Depth
8 in
Spout Outlet Height
1 1/2 in
For Surface Thickness - Maximum
3/4 in
Inlet Connection Size
1/2 in
Spout Height - Maximum
2 5/8 in
For Mounting Hole Diameter - Minimum
1 1/8 in
For Mounting Hole Diameter - Maximum
1 3/8 in

Details

Mounting Hole Center to Center
Single Hole
Mounting Type
Deck
Finish
Chrome
Handle Type
Cross
Handle Material
Cast Brass
Number of Handles
1
Body Material
Cast Brass
Item
Low Arc Bathroom Faucet
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, NSF 372, NSF 61/9
Battery Charger CEC Compliant
CEC Compliant
Faucet Type
Bathroom Sink Faucet
ADA Compliance
Not ADA Compliant
Includes
Mounting Hardware
Features
Mounting Hardware Included
Power Source
Manual
Valve Type
Compression
Green Certification or Other Recognition
California Energy Commission (CEC) Certified
Replacement Cartridge
1-099XTJKABNF
Spout Reach
3 1/2 in
Temperature Control
Non-Adjustable Temperature
Series
700
Max. Mounting Hole Center Distance
Single Hole
Valve Type - Faucets
Cold Cartridge
Water Inlet Connection Type
Male NPSM
Application
Commercial
Color
Silver
With Faucet / Without Faucet
With Faucet
Number of Stations
0
Side Splash
No
Faucet Mounting Centers
1 in
Back Splash
No
Temperature - Maximum
140 Degrees F
Spout Shape
Arc
Operation Method
Manual
Inlet Connection Type
NPSM
Flow Rate - Maximum
0.5 gpm
Inlet Connection Gender
Male
Flow Type
Laminar
Compatible Cartridge Manufacturer Part Number
1-099XTJKABNF
Vandal Resistance
Vandal-Resistant Handle
For Location
Bathroom
For Water Temperature
Cold
Legend Style
Color
CEC Compliance
CEC Compliant
Temperature - Minimum
40 Degrees F
Pressure - Maximum
125 psi
Ligature Resistance
No
Number of Mounting Holes
1
Temperature Control Method
Mixing Valve Not Included
Water Supply Type
Single Tempered Line
Includes Drain
Drain Not Included
Spout Style
Fixed
Installation Type
Deck

Description

Item Low Arc Bathroom Faucet

Restrictions
