  6. Manual Low Arc Bathroom Faucet, Single Hole Mount, Polished Chrome 1 Hole

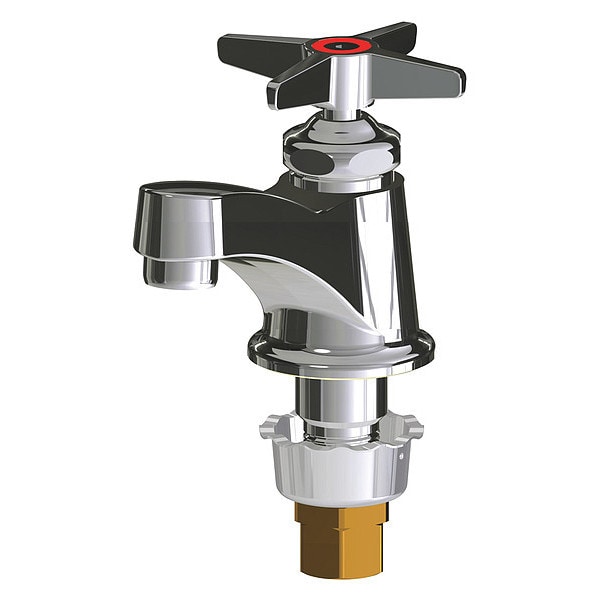

Chicago Faucet Manual Low Arc Bathroom Faucet, Single Hole Mount, Polished Chrome 1 Hole 700-E74HOTABCP - main
Shop CHICAGO FAUCET

Manual Low Arc Bathroom Faucet, Single Hole Mount, Polished Chrome 1 Hole

  • Mfr # 700-E74HOTABCP

  • Zoro # G4242491

product price:  $125.95
/ea
Free Shipping & Returns

Key Features

Mounting Hole Center to Center
Single Hole
Mounting Type
Deck
Finish
Chrome
Handle Type
Cross
Handle Material
Cast Brass
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
700-E74HOTABCP
Zoro #
G4242491
UPC #
611943112073
Country of Origin
United States

Dimensions

Overall Height
5 3/4 in
Height
5 in
Spout Length
3 3/8 in
Spout Height
2 5/8 in
Overall Length
6 in
Overall Width
2 in
Bowl Depth
8 in
Inlet Connection Size
1/2 in
For Mounting Hole Diameter - Maximum
1 3/8 in
Spout Outlet Height
1 1/2 in
For Mounting Hole Diameter - Minimum
1 1/8 in
Spout Height - Maximum
2 5/8 in
For Surface Thickness - Maximum
3/4 in

Details

Mounting Hole Center to Center
Single Hole
Mounting Type
Deck
Finish
Chrome
Handle Type
Cross
Handle Material
Cast Brass
Number of Handles
1
Body Material
Cast Brass
Item
Low Arc Bathroom Faucet
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, Certified to WaterSense by ICC-ES, NSF/ANSI/CAN 372 Low Lead Content, NSF/ANSI/CAN 61
Includes
Mounting Hardware
ADA Compliance
Not ADA Compliant
Green Certification or Other Recognition
WaterSense Certified
Faucet Type
Bathroom Sink Faucet
Battery Charger CEC Compliant
CEC Compliant
Power Source
Manual
Features
Mounting Hardware Included
Valve Type
Compression
Temperature Control
Non-Adjustable Temperature
Series
700
Spout Reach
3 1/2 in
Valve Type - Faucets
Hot Cartridge
Max. Mounting Hole Center Distance
Single Hole
Water Inlet Connection Type
Male NPSM
Application
Commercial
Color
Silver
Back Splash
No
With Faucet / Without Faucet
With Faucet
Side Splash
No
Faucet Mounting Centers
1 in
Number of Stations
0
CEC Compliance
Not CEC Compliant
For Water Temperature
Hot
Compatible Cartridge Manufacturer Part Number
1-100XTJKABNF
Temperature - Minimum
40 Degrees F
Inlet Connection Gender
Male
Number of Mounting Holes
1
Pressure - Maximum
125 psi
For Location
Bathroom
Legend Style
Color
Flow Type
Laminar
Ligature Resistance
No
Spout Shape
Arc
Flow Rate - Maximum
1 gpm
Operation Method
Manual
Temperature - Maximum
140 Degrees F
Inlet Connection Type
NPSM
Vandal Resistance
Vandal-Resistant Handle
Temperature Control Method
Mixing Valve Not Included
Water Supply Type
Single Tempered Line
Includes Drain
Drain Not Included
Spout Style
Fixed
Installation Type
Deck

Description

Item Low Arc Bathroom Faucet
