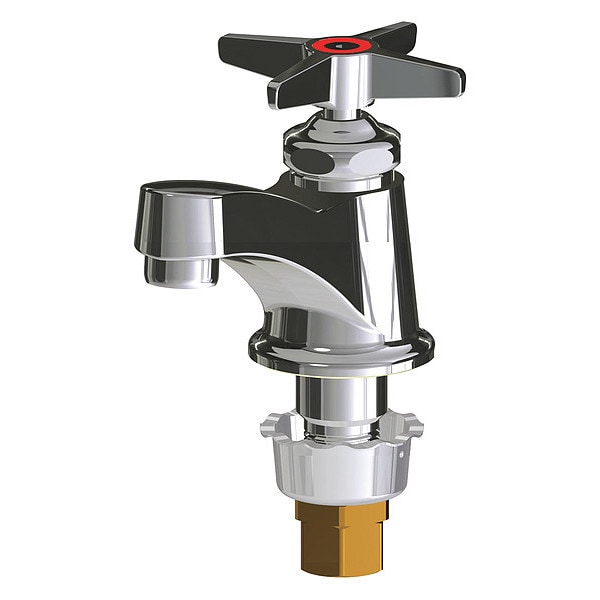

Chicago Faucet Manual Low Arc Bathroom Faucet, Single Hole Mount, Polished Chrome 1 Hole 700-HOTABCP - main

Manual Low Arc Bathroom Faucet, Single Hole Mount, Polished Chrome 1 Hole

  • Mfr # 700-HOTABCP

  • Zoro # G4976517

product price:  $126.86
/ea
Free Shipping & Returns

Key Features

Mounting Hole Center to Center
Single Hole
Mounting Type
Deck
Finish
Chrome
Handle Type
Cross
Handle Material
Cast Brass
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
700-HOTABCP
Zoro #
G4976517
UPC #
611943475352
Country of Origin
United States

Dimensions

Spout Length
3 3/8 in
Height
3-3/8 in
Overall Height
5 3/4 in
Spout Height
2 5/8 in
Overall Width
2 in
For Mounting Hole Diameter - Maximum
1 3/8 in
Spout Height - Maximum
2 5/8 in
Spout Outlet Height
1 1/2 in
For Mounting Hole Diameter - Minimum
1 1/8 in
Inlet Connection Size
1/2 in
For Surface Thickness - Maximum
3/4 in

Details

Mounting Hole Center to Center
Single Hole
Mounting Type
Deck
Finish
Chrome
Handle Type
Cross
Handle Material
Cast Brass
Number of Handles
1
Body Material
Cast Brass
Item
Low Arc Bathroom Faucet
Faucet Spout
Integral Cast Rigid
ADA Compliance
Not ADA Compliant
Replacement Cartridge
5UTV6
Battery Charger CEC Compliant
Non CEC Compliant
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, NSF/ANSI/CAN 372 Low Lead Content, NSF/ANSI/CAN 61: Q Less Than or Equal To 1
Valve Type
Compression
Includes
Mounting Hardware
Faucet Type
Bathroom Sink Faucet
Temp. Control
No
Connection
1/2 in MNPS
Features
Mounting Hardware Included
Power Source
Manual
Type
One Handle
Temperature Control
Non-Adjustable Temperature
Spout Reach
3 1/2 in
Valve Type - Faucets
Hot Cartridge
Max. Mounting Hole Center Distance
Single Hole
Series
700
Water Inlet Connection Type
Male NPSM
Application
Commercial
Outlet Type
Aerator
Number of Mounting Holes
1
Inlet Connection Gender
Male
Temperature - Maximum
140 Degrees F
Spout Shape
Arc
Vandal Resistance
Vandal-Resistant Handle
Ligature Resistance
No
Compatible Cartridge Manufacturer Part Number
1-100XTJKABNF
Pressure - Maximum
125 psi
Inlet Connection Type
NPSM
Flow Rate - Maximum
2.2 gpm
For Water Temperature
Hot
CEC Compliance
Not CEC Compliant
Flow Type
Aerated
For Location
Bathroom
Temperature - Minimum
40 Degrees F
Operation Method
Manual
Legend Style
Color
Water Supply Type
Single Tempered Line
Temperature Control Method
Mixing Valve Not Included
Spout Style
Fixed
Includes Drain
Drain Not Included
Installation Type
Deck

Description

Item Low Arc Bathroom Faucet

Restrictions

This item has been restricted from sale in the following states: NJ
