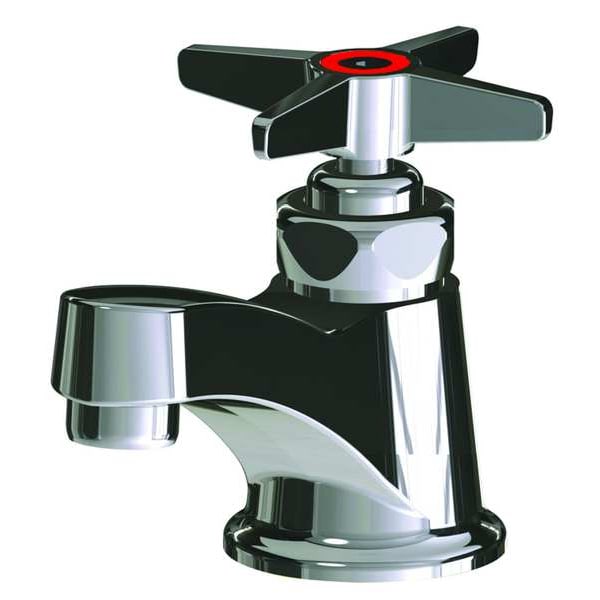

Chicago Faucet Manual Low Arc Bathroom Faucet, Single Hole Mount, Polished Chrome 1 Hole 701-HOTABCP - main

Manual Low Arc Bathroom Faucet, Single Hole Mount, Polished Chrome 1 Hole

  • Mfr # 701-HOTABCP

  • Zoro # G4976273

product price:  $156.99
/ea
Free Shipping & Returns

Key Features

Finish
Polished Chrome
Mounting Type
Deck
Faucet Type
Bathroom Sink Faucet
Handle Type
Cross
Number of Handles
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
701-HOTABCP
Zoro #
G4976273
UPC #
611943477066
Country of Origin
United States

Dimensions

Spout Length
3 3/8 in
Height
3 in
Overall Height
5 7/8 in
Spout Height
2 5/8 in
Overall Width
2 in
For Surface Thickness - Maximum
3/4 in
Spout Outlet Height
1 1/2 in
For Mounting Hole Diameter - Minimum
1 1/8 in
Spout Height - Maximum
2 5/8 in
For Mounting Hole Diameter - Maximum
1 3/8 in

Details

Finish
Polished Chrome
Mounting Type
Deck
Faucet Type
Bathroom Sink Faucet
Handle Type
Cross
Number of Handles
1
ADA Compliant
No
Series
701
Spout Shape
Arc
Spout Reach
3 1/2 in
Flow Rate - Maximum
2.2 gpm
Number of Mounting Holes
1
Mounting Hole Center to Center
Single Hole
Body Material
Cast Brass
Item
Low Arc Bathroom Faucet
Temp. Control
No
Replacement Cartridge
26Y289
ADA Compliance
Not ADA Compliant
Faucet Spout
Rigid
Includes
Mounting Hardware
Valve Type
Compression
Connection
1/2 in MNPS
Battery Charger CEC Compliant
Non CEC Compliant
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, NSF/ANSI/CAN 372 Low Lead Content, NSF/ANSI/CAN 61: Q Less Than or Equal To 1
Type
One Handle
Features
Mounting Hardware Included
Handle Material
Cast Brass
Power Source
Manual
Max. Mounting Hole Center Distance
Single Hole
Water Inlet Connection Type
Male NPSM
Temperature Control
Non-Adjustable Temperature
Valve Type - Faucets
Hot Cartridge
Application
Commercial
Outlet Type
Aerator
Temperature - Minimum
40 Degrees F
Compatible Cartridge Manufacturer Part Number
826-XJKABNF
Inlet Connection Gender
Male
Flow Type
Spray
Legend Style
Color
Warranty
1 yr Limited, 5 yr Limited, Lifetime Limited
Pressure - Maximum
125 psi
Vandal Resistance
Vandal-Resistant Handle
Operation Method
Manual
Inlet Connection Type
NPSM
Product Type
Faucet
Ligature Resistance
Not Ligature-Resistant
For Location
Bathroom
Temperature - Maximum
140 Degrees F
CEC Compliance
Not CEC Compliant
For Water Temperature
Hot
Temperature Control Method
Mixing Valve Not Included
Water Supply Type
Single Tempered Line
Includes Drain
Drain Not Included
Spout Style
Fixed
Installation Type
Deck

Description

Item Low Arc Bathroom Faucet

Restrictions

This item has been restricted from sale in the following states: NJ
