  6. Metering 4" Mount, 3 Hole Straight Spout Bathroom Faucet, Chrome plated

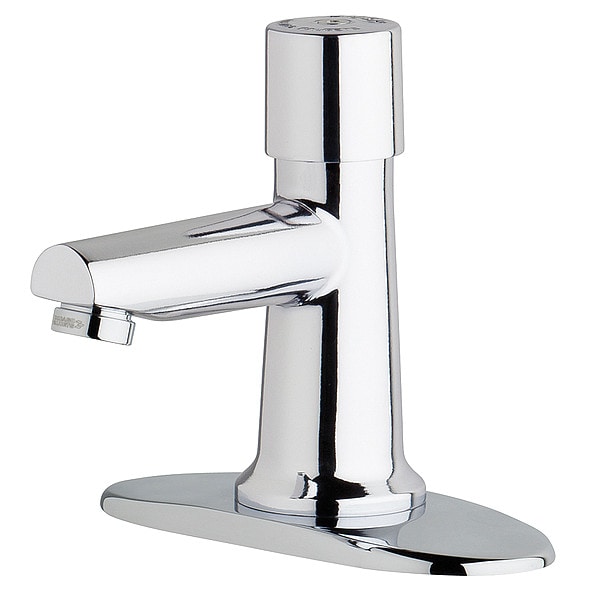

Chicago Faucet Metering 4" Mount, 3 Hole Straight Spout Bathroom Faucet, Chrome plated 3500-4E2805ABCP - main

Metering 4" Mount, 3 Hole Straight Spout Bathroom Faucet, Chrome plated

  • Mfr # 3500-4E2805ABCP

  • Zoro # G5376847

product price:  $243.19
/ea
Free Shipping & Returns

Key Features

Faucet Operation
Metering
Number of Holes
3
Mounting Type
Deck
ADA Compliant
Yes
Finish
Polished Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3500-4E2805ABCP
Zoro #
G5376847
UPC #
611943512163
Country of Origin
United States

Dimensions

Connection Size
3/8" Compression
Manufacturers Warranty Length
Lifetime Warranty Metal Cast, Forged, Stamped of Formed Portion, 1 yr Limited Finish warranty, 5 yr Limited Cartridge Warranty
Spout Length
4 in
Overall Height
29 7/8 in
Max. Installation Surface Thickness
1 1/4 in
Spout Height
3 3/4 in
Water Inlet Connection Size
3/8 in
Hose Length
16"
Overall Width
6 1/2 in
For Surface Thickness - Maximum
1 1/4 in
For Mounting Hole Diameter - Minimum
1 1/8 in
Spout Outlet Height
2 3/8 in
Spout Height - Maximum
3 3/4 in
For Mounting Hole Diameter - Maximum
1 3/8 in

Details

Faucet Operation
Metering
Number of Holes
3
Mounting Type
Deck
ADA Compliant
Yes
Finish
Polished Chrome
Handle Type
Metering Knob
Flow Rate
0.5 gpm
Faucet Spout Shape
Straight
Handle Material
Cast Brass
Number of Handles
1
Body Material
Cast Brass
Flow Outlet Type
Nonaerated
Residential / Commercial
Commercial
CEC Compliant
CEC Compliant
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, NSF 372, NSF 61/9
Item
Straight Spout Bathroom Faucet
Faucet Handle Type
Metering
Green Environmental Attribute
Faucet Flow Rate 1.5 gpm Or Less
Commercial / Residential
Commercial
Faucet Type
Bathroom Sink Faucet
Includes
Mounting Hardware
Flow Outlet Type - Faucet
Spray
Mounting Type - Faucet
Deck
Ligature Resistant
No
Replacement Cartridge
2EU68 or 26Y193
Flow Outlet Type (Faucet)
Spray
Faucet Finish
Chrome
Battery Charger CEC Compliant
CEC Compliant
Compliance
ASME A112.18.1/CSA B125.1, California Health and Safety Code 116875, Vermont Bill, NSF/ANSI 372 Low Lead Content Certified to NSF/ANSI 61
Vandal Resistant Features
Vandal Resistant Handles
Faucet Spout
Integral Cast
ADA Compliance
ADA Compliant
Features
Mounting Hardware Included
Power Source
Manual
Type
One Handle
Valve Type
Compression
Faucet Body Material
Cast Brass
Max. Mounting Hole Center Distance
4 in
Spout Reach
4 in
Valve Type - Faucets
Hot/Cold Cartridge
Temperature Control
Non-Adjustable Temperature
Water Inlet Connection Type
Push in Compression
Faucet Activation
Manual
Replacement Cartridge Mfr. Model Number
665-190KJKABNF, 671-XJKABNF
Series
3500
Faucet Handle Material
Metal
Material of Construction
Brass
Application
Commercial
Outlet Type
Spray
For Location
Bathroom
Vandal Resistance
Vandal-Resistant Handle, Vandal-Resistant Outlet
Time Out
25 sec
Operation Method
Manual
CEC Compliance
CEC Compliant
Mounting Hole Center-to-Center Distance - Maximum
4 in
Time Out - Minimum
2 sec
Temperature - Minimum
40 Degrees F
Mounting Hole Center-to-Center Distance - Minimum
4 in
Temperature - Maximum
140 Degrees F
Product Type
Faucet
Flow Type
Laminar
Number of Mounting Holes
3
Compatible Cartridge Manufacturer Part Number
665-190KJKABNF, 671-XJKABNF
Inlet Connection Type
Compression
Pressure - Maximum
125 psi
Ligature Resistance
Not Ligature-Resistant
Flow Rate - Maximum
0.5 gpm
Spout Shape
Straight
Warranty
1 yr Limited, 5 yr Limited, Lifetime Limited
For Water Temperature
Hot/Cold
Includes Drain
Drain Not Included
Spout Style
Fixed
Water Supply Type
Single Tempered Line

Description

Item Straight Spout Bathroom Faucet

Restrictions
