  6. Sensor Single Hole Mount, 1 Hole Mid Arc Bathroom Faucet, Polished chrome

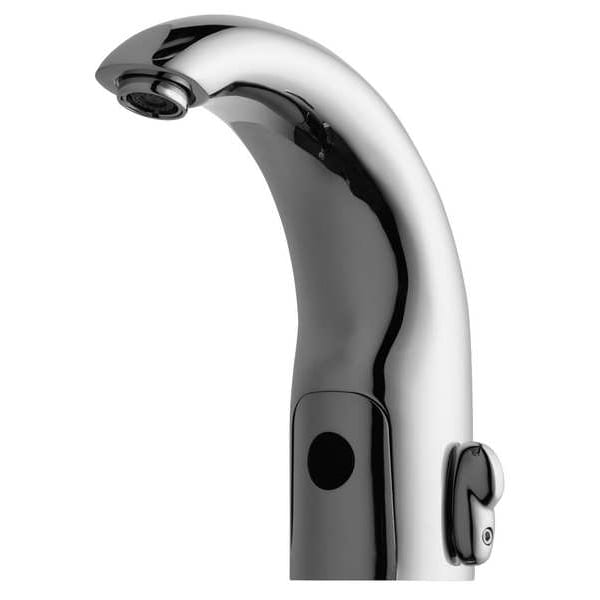

Chicago Faucet Sensor Single Hole Mount, 1 Hole Mid Arc Bathroom Faucet, Polished chrome WWG116.222.AB.1T - main

Sensor Single Hole Mount, 1 Hole Mid Arc Bathroom Faucet, Polished chrome

  • Mfr # WWG116.222.AB.1T

  • Zoro # G2458793

product price:  $740.99
/ea
Free Shipping & Returns

Key Features

Height
7-1/2"
Application
Commercial
Finish
Polished Chrome
Connection Size
3/8" Female Compression
Flow Outlet Type
Laminar
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WWG116.222.AB.1T
Zoro #
G2458793
UPC #
611943474188
Country of Origin
United States

Dimensions

Height
7-1/2"
Connection Size
3/8" Female Compression
Spout Length
5 1/8 in
Manufacturers Warranty Length
Lifetime Warranty Metal Cast, Forged, Stamped of Formed Portion, 5 yr Limited Mechanicals Warranty, 3 yr Limited Electronics and Solenoid Warranty, 1 yr Limited Finish Warranty
Max. Installation Surface Thickness
1 1/2 in
Water Inlet Connection Size
3/8 in
Spout Height
7 1/2 in
Hose Length
16"
Overall Width
2 1/2 in
For Mounting Hole Diameter - Minimum
1 1/8 in
Spout Outlet Height
6 1/8 in
Inlet Connection Size
3/8 in
For Surface Thickness - Maximum
1 1/2 in
Spout Height - Maximum
7 1/2 in

Details

Application
Commercial
Finish
Polished Chrome
Item
Bathroom Sensor Faucet
Flow Outlet Type
Laminar
Body Material
Cast Brass
Ligature Resistant
No
Voltage
6V DC
Flow Outlet Type (Faucet)
Laminar
Residential / Commercial
Commercial
Includes
Mounting Hardware
Faucet Spout Shape
Mid Arc
Faucet Spout
Rigid
Drain Type
None
Sensor Range
3 in to 13 in
Commercial / Residential
Commercial
Power Source
Battery
Valve Type
Metering
ADA Compliant
Yes
Flow Outlet Type - Faucet
Laminar
Mounting Type
Deck Mount
Series
HyTronic Contemporary
Number of Holes
1
Number of Handles
0
Faucet Operation
Sensor
Faucet Handle Type
None
Flow Rate
0.5 gpm
Faucet Finish
Chrome
Battery Charger CEC Compliant
CEC Compliant
Amps
2 A
ADA Compliance
ADA Compliant
Standards
ADA ANSI/ICC A117.1, ASME A112.18.1/CSA B125.1, NSF/ANSI/CAN 61: Q Less Than or Equal To 1
Mounting Hole Center to Center
Single Hole
Vandal Resistant Features
Vandal Resistant Outlet
Temp. Control
Yes
CEC Compliant
CEC Compliant
Faucet Type
Bathroom Sink Faucet
Connection
3/8" Female Compression
Mounting Type - Faucet
Deck
Type
Electronic
Green Certification or Other Recognition
California Energy Commission (CEC) Certified
Features
Bluetooth Compatible
Temperature Control
Adjustable Temperature
Max. Mounting Hole Center Distance
Single Hole
Valve Type - Faucets
Solenoid Valve
Water Inlet Connection Type
Push in Compression
Spout Reach
5 1/8 in
Faucet Body Material
Cast Brass
Replacement Cartridge Mfr. Model Number
243.152.AB.1
Faucet Activation
Motion Sensor
Sensor Type
Adjustable
Material of Construction
Cast Brass
Battery Type
CRP2
Outlet Type
Laminar
Ligature Resistance
Not Ligature-Resistant
CEC Compliance
CEC Compliant
Product Type
Sensor Faucet
Inlet Connection Type
Compression
Sensor Range - Maximum
13 in
Warranty
1 yr Limited Finish Warranty, 3 yr Limited Electronics and Solenoid Warranty, 5 yr Limited Mechanical Warranty, Lifetime Warranty Metal Cast, Forged, Stamped of Formed Portion
Spout Style
Fixed
Includes Drain
Drain Not Included
Spout Shape
Arc
Includes Transformer
Transformer Not Included
Sensor Range - Minimum
3 in
Flow Type
Spray
Includes Batteries
Batteries Included
Number of Mounting Holes
1
Vandal Resistance
Vandal-Resistant Outlet
Temperature - Maximum
140 Degrees F
Flow Rate - Maximum
0.5 gpm
Pressure - Maximum
125 psi
Water Supply Type
Hot and Cold Lines
Time Out
40 sec
Operation Method
Motion Sensor
Includes Handle
Handle Not Included
For Location
Bathroom
Compatible Cartridge Manufacturer Part Number
243.152.AB.1
Temperature Control Method
Below Deck Manual Mixing Valve
Temperature - Minimum
40 Degrees F

Description

Mid Arc,Chrome,Chicago Faucets,HyTronic
