Shop CHICAGO-LATROBE

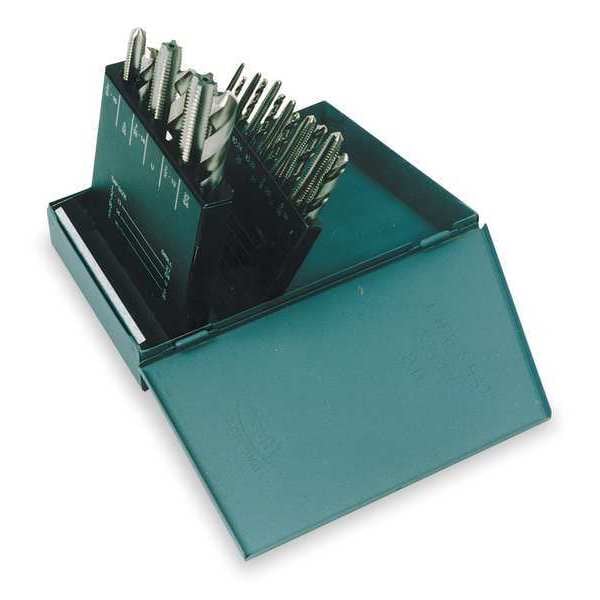

18PC Jobber Drill and Plug Hand Tap Set CL 150D/1002 Bright HSS, N36, N29, N25, N21, N7, F, 5/16, U, 27/64

  • Mfr # 52580

  • Zoro # G3227165

product price:  $144.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
18
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Index Case
Drill Style
150D
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
52580
Zoro #
G3227165
UPC #
662355525807
Country of Origin
United States

Dimensions

Drill Sizes
#21, #25, #29, #36, #7, 27/64 in, 5/16 in, F, U
Tap Sizes
6-32, 8-32, 10-24, 10-32, 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13
Size Range
1/4-20, 10-24, 10-32, 3/8-16, 5/16-18, 6-32, 7/16-14. 1/2-13, 8-32
Tap Drill Size
#21, #25, #29, #36, #7, 27/64 in, 5/16 in, F, U
Largest Drill Bit Dia.
27/64 in
Thread Sizes Included
1/2"-13, 1/4"-20, #10-24, #10-32, 3/8"-16, 15/16"-18, #6-32, 7/16"-14, #8-32
Smallest Drill Bit Dia.
#36
Tap Sizes Included
#10-24, #10-32, #6-32, #8-32, 1/2"-13, 1/4"-20, 3/8"-16, 5/16"-18, 7/16"-14
Drill Bit Dia. Included
#21, #25, #29, #36, #7, 27/64 in, 5/16 in, F, U
Largest Thread Size
1/2"-13
Dimensions Standard
Fractional Inch
Smallest Thread Size
#6-32
Drill Bit Sizes Included
#21, #25, #29, #36, #7, 27/64 in, 5/16 in, F, U

Details

Item
Drill Bit and Tap Set
Number of Pieces
18
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Index Case
Drill Style
150D
Tap Style
Straight Flute
Impact Rated
Not Impact Rated
Finish
Bright (Uncoated)
Thread Type
NC, NF
Tap Chamfer
Plug
Number Of Taps
9
Number Of Drills
9
Tap Type
Hand Tap
Thread Limit
2B
Secondary Material Application ISO Code
M
Primary Material Application
All Materials
Thread Standard
UNC, UNF
Threads per Inch
13, 14, 16, 18, 20, 24, 32
Drill Series
150D
Measurement System
Fractional Inch
Primary Material Application ISO Code
H, K, M, N, O, P, S
Features
Hand Tap
Secondary Material Application
Stainless Steel
Thread Direction
Right Hand
Finish - Machining
Bright (Uncoated)
Tap Finish
Bright (Uncoated)
Drill Bit Finish
Bright (Uncoated)
Tap Material
High Speed Steel
Additional Tools Included
Metal Index Case
Number of Drill Bits Included
9

Description

The CHICAGO-LATROBE 52580 Drill Bit and Tap Set includes 9 drill bits and 9 hand taps (18 total) for use on listed material types, including stainless steel (per included tool/application coding). The set contains 9 high-speed steel drill bits and 9 hand taps with straight flutes for cutting internal threads in fractional inch thread sizes within the listed tap range. The taps are specified for right-hand threading in UNC and UNF thread standards, with tap sizes ranging from #6-32 to 1/2"-13 (UNC/UNF). Drill bits have a 118-degree point angle and both drill bits and taps have a bright (uncoated) finish. All tools are stored in a metal index case to store the included tools.

Key Features:

  • Contains 9 drill bits and 9 hand taps, total 18 pieces.
  • Drill bit sizes range from #36 to 27/64 inch diameter.
  • Tap sizes range from #6-32 to 1/2"-13 (UNC/UNF).
  • Tap chamfer type: plug; thread limit rating: 2B.
  • Drill bits and taps made of high-speed steel with bright (uncoated) finish.
  • Tap style: straight flute (for hand tapping).
  • Measurement system: fractional inch; thread direction: right-hand.
  • Includes a metal index case for tool storage.
  • Primary/secondary material application codes: general materials; includes stainless steel (per listed application codes).
