Shop CHICAGO-LATROBE

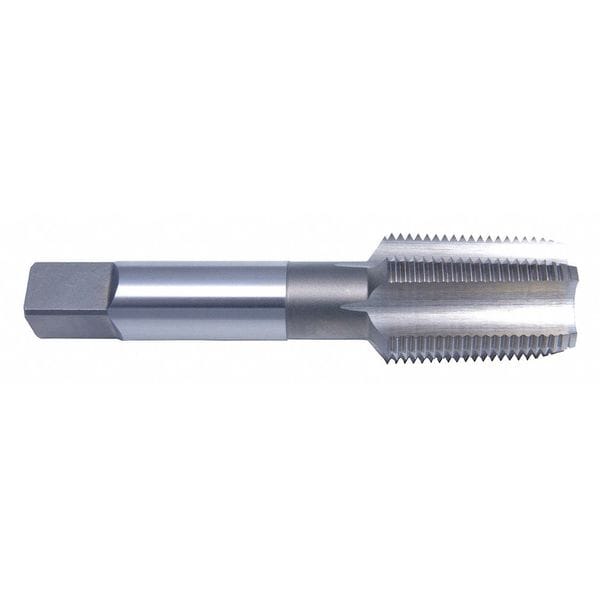

Pipe Tap Semi-Bottoming, 4 Flutes

  • Mfr # 384524

  • Zoro # G7683816

product price:
$
45.39
/ea

Key Features

Shank Dia.
0.318"
Tap Style
Pipe
Tap Chamfer
Semi-Bottoming
Tap Dimension Type
Inch
Tap Material
High Speed Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
384524
Zoro #
G7683816
UPC #
093367845247
Country of Origin
United States

Dimensions

Shank Dia.
0.318"
Tap Dimension Type
Inch
Tap Size
1/8"
Overall Length
3"
Thread Length
3/4"
Pitch Diameter Limit
Not Rated
Tap Thread Size
1/8"-27
Shank Length
2 1/4 in
Tap Length Standard
USCTI Table 311
Square Size
0.2380 in
75% Thread Drill Size
Q
Thread Size
1/8"-27
Shank Diameter
5/16 in
Square Width
0.24 in
Square Length
0.24 in

Details

Item
Pipe Tap
Tap Style
Pipe
Tap Chamfer
Semi-Bottoming
Tap Material
High Speed Steel
Thread Direction
Right Hand
Number of Flutes
4
Standards
USCTI Table 311
Tap Finish
Bright
Number of Pieces
1
List Number
ELPTT
Tap Grouping
Tap
Tap Thread Type
NPT
Cutting Direction - Machining
Right Hand
Series
ELPTT
Measurement System
Fractional Inch
Primary Material Application ISO Code
K, N, P
Threads per Inch
27
Material Grade - Machining
ELPTT
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Tap Type
Taper Pipe
Thread Standard
NPT
Tap Shank Standard
USCTI Table 311
Extended Shank
Yes
Spiral Direction
Neutral
Helix Angle
0 Degrees
Tap Application
Blind Hole, Through Hole
Flute Type
Straight
Hook
Medium
Interrupted Thread
No
Maximum Projection
5/16 in
Impact Rated
Not Impact Rated
Shank Type
Square

Description

Extension Tap, Thread Size 1/8 In.-27, NPT, Overall Length 3 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 3/4 in, 75 Percent Thread Drill Size Q, Thread Limit Not Applicable, Class of Fit Not Applicable, Number of Flutes 4
