  11. Screw Machine Drill Bit, 3/8 in Size, 135 Degrees Point Angle, Cobalt, TiN Finish, Straight Shank
Shop All Screw Machine Length Drill Bits
Chicago-Latrobe

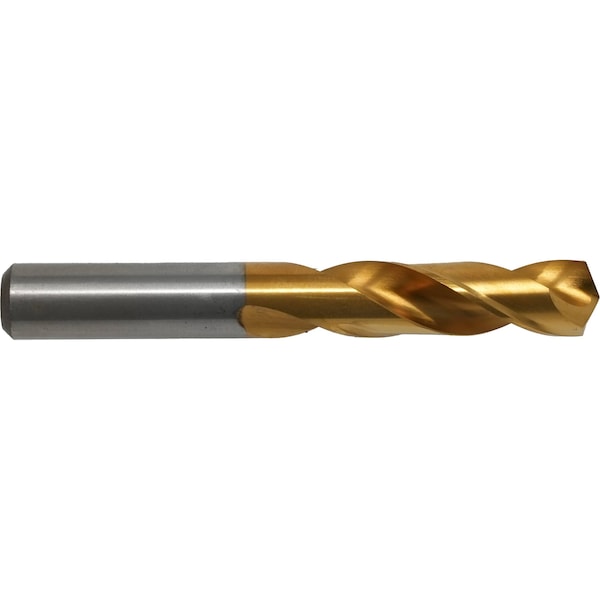

Screw Machine Drill Bit, 3/8 in Size, 135 Degrees Point Angle, Cobalt, TiN Finish, Straight Shank

product price: $14.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Drill Bit Grouping Drill Bit
  • Drill Bit Dimension Type Fractional Inch
  • Drill Bit Size 3/8 in
  • Shank Type Straight
  • Drill Bit Point Angle 135 Degrees
See all product information

Product Information

Dimensions

Drill Bit Dimension Type Fractional Inch
Drill Bit Size 3/8 in
Shank Dia. 3/8 in
Overall Length 3 1/8 in
Flute Length 1 13/16 in
Maximum Drilling Depth 1 13/16 in
Bit Dia. 3/8"
Drilling Length 1-13/16"
Sizes Included 3/8"
Shank Size 3/8"
Depth x Dia. Ratio 4xD
Depth:Dia. Ratio 4xD
Shank Length 1 5/16 in
Drill Point Length 0.0777 in
Drill Length Class Screw Machine Length
Drill Diameter Tolerance +0.0000 in /-0.0010 in

Details

Drill Bit Grouping Drill Bit
Item Screw Machine Drill Bit
Shank Type Straight
Drill Bit Point Angle 135 Degrees
Decimal Equivalent 0.3750
Drill Bit Material Cobalt
Drill Bit Finish TiN
Flute Type Spiral
Cutting Direction Right Hand
Number of Flutes 2
Number of Pieces 0
Standards ANSI
List Number 559-TN
Grade Heavy Duty
Shank Shape Straight
Coolant Through No
Point Type Split
Application For Drilling Carbon Steel, Cast Iron, Tool Steel
Coolant Fed Non-Coolant Through
Series 559-TN
Finish - Machining TiN
Material Grade - Machining M42
Primary Material Application ISO Code K, P
Spiral Direction Right Hand
Material - Machining Cobalt
Primary Material Application Cast Iron, Steel, Tool and Die Steel
Shank Type - Machining Straight
Drill Bit Point Type Split Point
Helix Angle 28 Degrees
Measurement System Fractional Inch

Description

Screw Machine Drill Bit, Drill Bit Size 3/8 in, Drill Bit Point Angle 135 Degrees , Split Point, Cobalt, TiN, Non-Coolant Through, Cutting Direction Right Hand, Decimal Equivalent 0.3750
