Shop CHICAGO-LATROBE

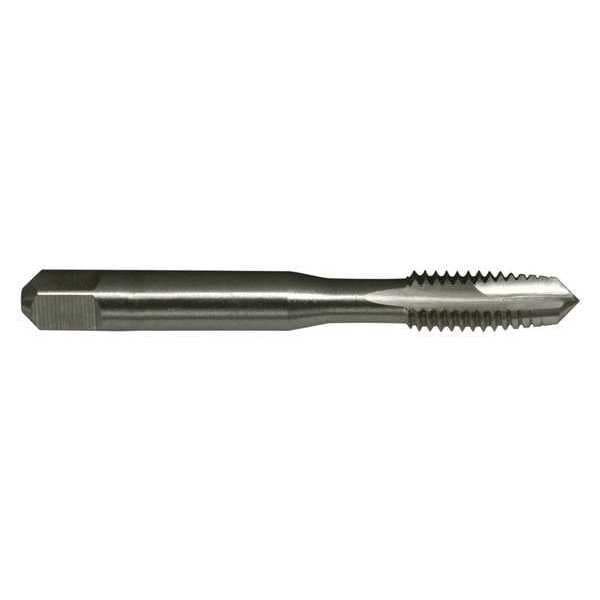

Spiral Point Tap, Plug, 2

  • Mfr # 358510

  • Zoro # G7683999

product price:
$
11.89
/ea

Key Features

Shank Dia.
0.318"
Tap Material
High Speed Steel
Tap Dimension Type
Inch
Tap Chamfer
Plug
Tap Size
5/16"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
358510
Zoro #
G7683999
UPC #
093367585105
Country of Origin
United States

Dimensions

Shank Dia.
0.318"
Tap Dimension Type
Inch
Tap Size
5/16"
Overall Length
2 23/32 in
Thread Length
11/16"
Tap Thread Size
5/16"-18
Square Size
0.2380 in
75% Thread Drill Size
F
65% Thread Drill Size
17/64 in
Thread Size
5/16"-18
Shank Length
1 19/32 in
Drill Bit Size
F
55% Thread Drill Size
I
Pitch Diameter Limit
H13
Square Width
0.238 in
Square Length
0.238 in
Shank Diameter
5/16 in
Wire Rope Length
2 23/32 in
Length
2 23/32 in

Details

Item
Spiral Point Tap
Tap Material
High Speed Steel
Tap Chamfer
Plug
Tap Style
Spiral Point
Number of Flutes
2
Tap Grouping
Tap
Thread Direction
Right Hand
Tap Thread Type
UNC
Standards
USCTI Table 302A
Tap Finish
Bright (Uncoated)
Cutting Direction - Machining
Right Hand
Extended Neck
Yes
Measurement System
Fractional Inch
Primary Material Application ISO Code
N, P
Spiral Direction
Neutral
Thread Standard
UNC
Series
SPGP
Shank Type - Machining
Straight
Primary Material Application
Aluminum, Brass, Bronze, Copper, Steel
Threads per Inch
18
Thread Limit
H13
Class of Fit
1B
Helix Angle
0 Degrees
List Number
SPGP
Number of Pieces
1
Tap Application
Through Hole
Shank Type
Square
Impact Rated
Not Impact Rated

Description

Spiral Point Tap, Thread Size 5/16 In.-18, UNC, Overall Length 2 23/32 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 1 1/8 in, 75 Percent Thread Drill Size F, Thread Limit H13, Class of Fit 1B, Number of Flutes 2
