Shop CHICAGO-LATROBE

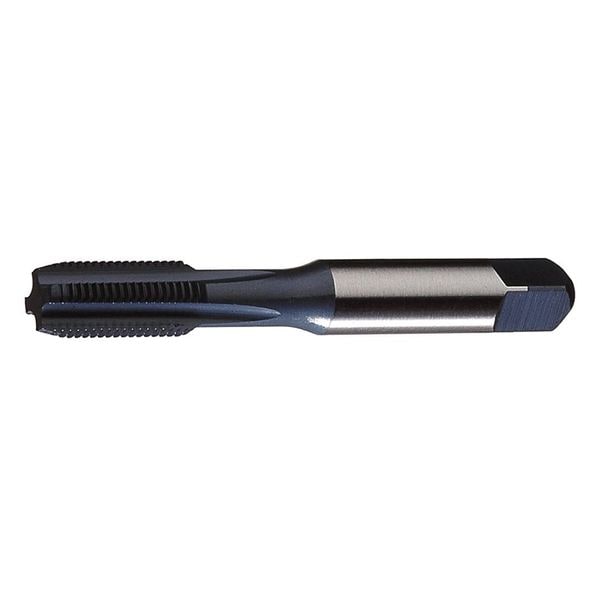

Straight Flute Hand Tap, #10-32, Bottoming, 4 Flutes, UNF

  • Mfr # 330260

  • Zoro # G4348452

product price:  $13.99
/ea

Key Features

Shank Dia.
0.194"
Tap Material
Powdered Metal
Tap Chamfer
Bottoming
Tap Size
#10
Tap Style
Straight Flute (Hand)
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
330260
Zoro #
G4348452
UPC #
662355822029
Country of Origin
United States

Dimensions

Shank Dia.
0.194"
Tap Size
#10
Tap Dimension Type
Inch
Overall Length
2-3/8"
Thread Length
1/2"
Pitch Diameter Limit
H3
Tap Thread Size
#10-32
Square Size
0.1520 in
75% Thread Drill Size
#21
65% Thread Drill Size
4.15 mm
Tap Length Standard
USCTI
55% Thread Drill Size
4.25 mm
Thread Size
#10-32
Shank Length
1 1/2 in
Size
#10
Square Length
0.15 in
Square Width
0.15 in
Shank Diameter
0.194 in

Details

Item
Straight Flute Hand Tap
Tap Material
Powdered Metal
Tap Chamfer
Bottoming
Tap Style
Straight Flute (Hand)
Number of Flutes
4
Thread Direction
Right Hand
Tap Grouping
Tap
Tap Thread Type
UNF
Number of Pieces
1
List Number
HTHM
Standards
USCTI Table 302A
Tap Finish
Steam Oxide/Nitride
Cutting Direction - Machining
Right Hand
Tap Shank Standard
USCTI
Class of Fit
2B
Thread Limit
H3
Extended Neck
Yes
Primary Material Application ISO Code
H, K
Thread Standard
UNF
Threads per Inch
32
Spiral Direction
Neutral
Series
HTHM
Shank Type - Machining
Straight
Primary Material Application
Cast Iron, Hardened Steel
Measurement System
Pipe
Helix Angle
0 Degrees
Tap Application
Blind Hole, Through Hole
Shank Type
Square
Features
CNC Machine Tap
Impact Rated
Not Impact Rated

Description

Straight Flute Tap, Thread Size #10-32, UNF, Semi-Bottoming, Overall Length 2.38 in, Cobalt, Black Oxide/Nitride, Right Hand, Thread Length 0.5 in, 75 Percent Thread Drill Size #21, Thread Limit H3, Class of Fit 2B
