Shop CHICAGO-LATROBE

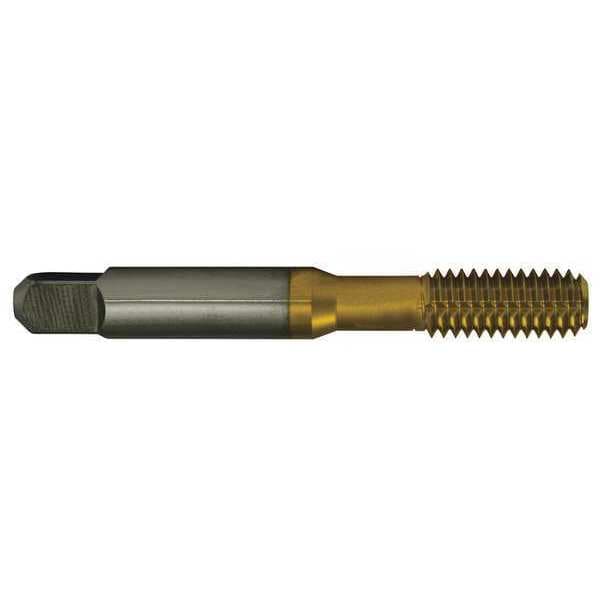

Thread Forming Tap, #8-32, Bottoming, TiN, 0 Flutes

  • Mfr # 287251

  • Zoro # G7684805

product price:  $19.49
/ea

Key Features

Tap Thread Size
#8-32
Tap Chamfer
Bottoming
Tap Finish
TiN
Number of Flutes
0
Tap Grouping
Tap
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
287251
Zoro #
G7684805
UPC #
697334772514
Country of Origin
United States

Dimensions

Tap Thread Size
#8-32
Shank Dia.
0.168"
Overall Length
2-1/8"
Thread Length
3/8"
Pitch Diameter Limit
H3
Tap Dimension Type
Inch
Tap Size
#8
Square Size
0.1310 in
55% Thread Drill Size
#24
Thread Size
#8-32
Shank Length
1 3/8 in
65% Thread Drill Size
#25
75% Thread Drill Size
3.75 mm
Square Width
0.38 in
Shank Diameter
0.168 in
Square Length
0.375 in

Details

Item
Thread Forming Tap
Tap Chamfer
Bottoming
Tap Finish
TiN
Number of Flutes
0
Tap Grouping
Tap
Tap Material
High Speed Steel
Tap Style
Thread Forming
Number of Pieces
1
List Number
FTGP
Tap Thread Type
UNC
Standards
USCTI Table 302A
Thread Direction
Right Hand
Cutting Direction - Machining
Right Hand
Thread Limit
H3
Threads per Inch
32
Thread Standard
UNC
Primary Material Application ISO Code
N, P
Series
FTGP-TN
Primary Material Application
Aluminum, Brass, Bronze, Copper, Steel
Spiral Direction
Neutral
Class of Fit
2B
Material Grade - Machining
FTGP-TN
Extended Neck
Yes
Helix Angle
0 Degrees

Description

Thread Forming Tap, Thread Size #8-32, UNC, Overall Length 2.13 in, High Speed Steel, TiN, Right Hand, Thread Length 0.38 in, 75 Percent Thread Drill Size 3.75 mm, Thread Limit H3, Class of Fit 2B
