  9. 1" Pistol Grip Air Impact Wrench 1290 ft.-lb.
Shop All Air Impact Wrenches
Chicago Pneumatic

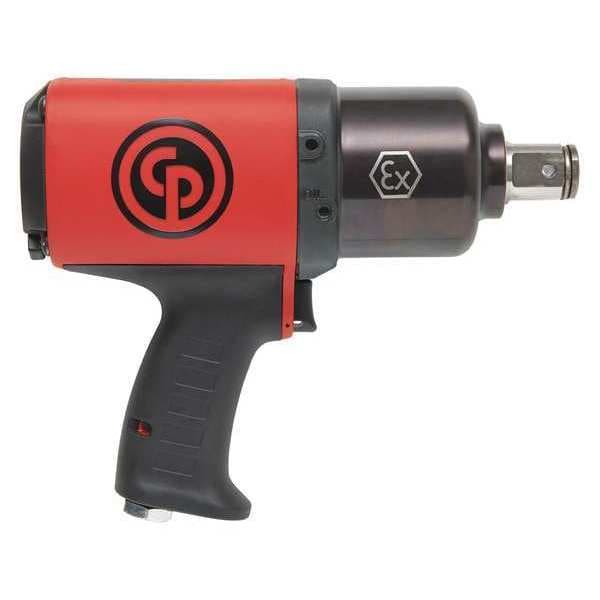

1" Pistol Grip Air Impact Wrench 1290 ft.-lb.

Hover or click to zoom Tap to zoom
Key Features
  • Air Inlet: 3/8 in NPT
  • Blows per Minute: 1050
  • Duty: Industrial
  • Free Speed: 5,100 RPM
  • Handle Type: Pistol Grip
  • Housing Material: Steel
  • Includes: Bronxe Muffler
  • Max. Bolt Capacity: 1 in
See full product details
$1,087.00
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Chicago Pneumatic #CP6778EX-P18D Specifications

  • Air Inlet: 3/8 in NPT
  • Blows per Minute: 1050
  • Duty: Industrial
  • Free Speed: 5,100 RPM
  • Handle Type: Pistol Grip
  • Housing Material: Steel
  • Includes: Bronxe Muffler
  • Max. Bolt Capacity: 1 in
  • Max. Torque: 1290 ft.-lb.
  • Min. Hose Size: 1/2 in
  • Square Drive Size: 1"
  • Torque Range: 290 to 1030 ft.-lb.
  • Style: Pistol Grip
  • Retainer Type - Air Impacts: Ring / Thru Hole
  • Features: Comfortable And Light Weight, Dust-Proof (Ip6), Extremely Durable Steel Motor
  • Blows per Minute - Air Tools: 1050
  • Body Style - Air Tools: Pistol
  • Overall Length: 10 1/8 in
  • CFM @ Full Load: 38.0
  • Handle Material: Composite
  • Air Inlet Size - Air Tools: 3/8" NPT
  • Retainer Type: Friction Ring, Through Hole
  • Item: Impact Wrench
  • Anvil Length - Air Impacts: 1.250"
  • Tool Weight: 10.1 lb
  • Anvil Type - Air Impacts: Standard
  • Drive Size - Air Tools: 1" Square
  • Average CFM @ 15 Second Run Time: 9.50
  • Duty Cycle - Air Tools: Industrial Duty
  • Item - Air Impact Wrenches: Air Impact Wrench
  • Required Pressure: 90 psi
  • Duty Rating: Industrial Duty
  • Built-In Light: No
  • Power to Weight Ratio: 128 ft-lb/lb
  • Impacts per Minute: 1,050
  • Tool Style: Compact
  • Drive Size: 1 in Square
  • Fastening Torque: 1,030 ft-lb
  • Drive Type: Standard
  • Explosive Environment Rating: ATEX Zone 2
  • Max. Air Pressure: 90 psi
  • Clutch Style: Twin Hammer
  • Standards: EN ISO 11148-6:2013, ISO-28927-2
  • Air Pressure: 90 psi
  • Air Consumption: 38 cfm
  • Min. Air Pressure: 90 psi
  • Power Source: Air Powered
  • Breakaway Torque: 1,290 ft-lb
  • Explosive Environment Rated: ATEX Certified
  • Impact Rated: Yes
  • Number of Speed Settings: 3
  • Vibration Level: 9.4 m/sq sec
  • Impact Sound Level: 105 dB
  • Exhaust Location: Bottom
  • Country of Origin (subject to change): Taiwan, Province of China

Description

Impact Wrench, Power Source Air Powered, Air Consumption 38 cfm, Air Inlet 3/8 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 1/2 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Breakaway Torque 1,290 ft-lb, Fastening Torque 1,030 ft-lb, Free Speed 5,100 RPM, Impact Rated Yes, Explosive Environment Rated ATEX Certified, Explosive Environment Rating ATEX Zone 2, Impact Sound Level 105 dB, Impacts per Minute 1,050
